ENGINE OVERHAUL GASKET KIT

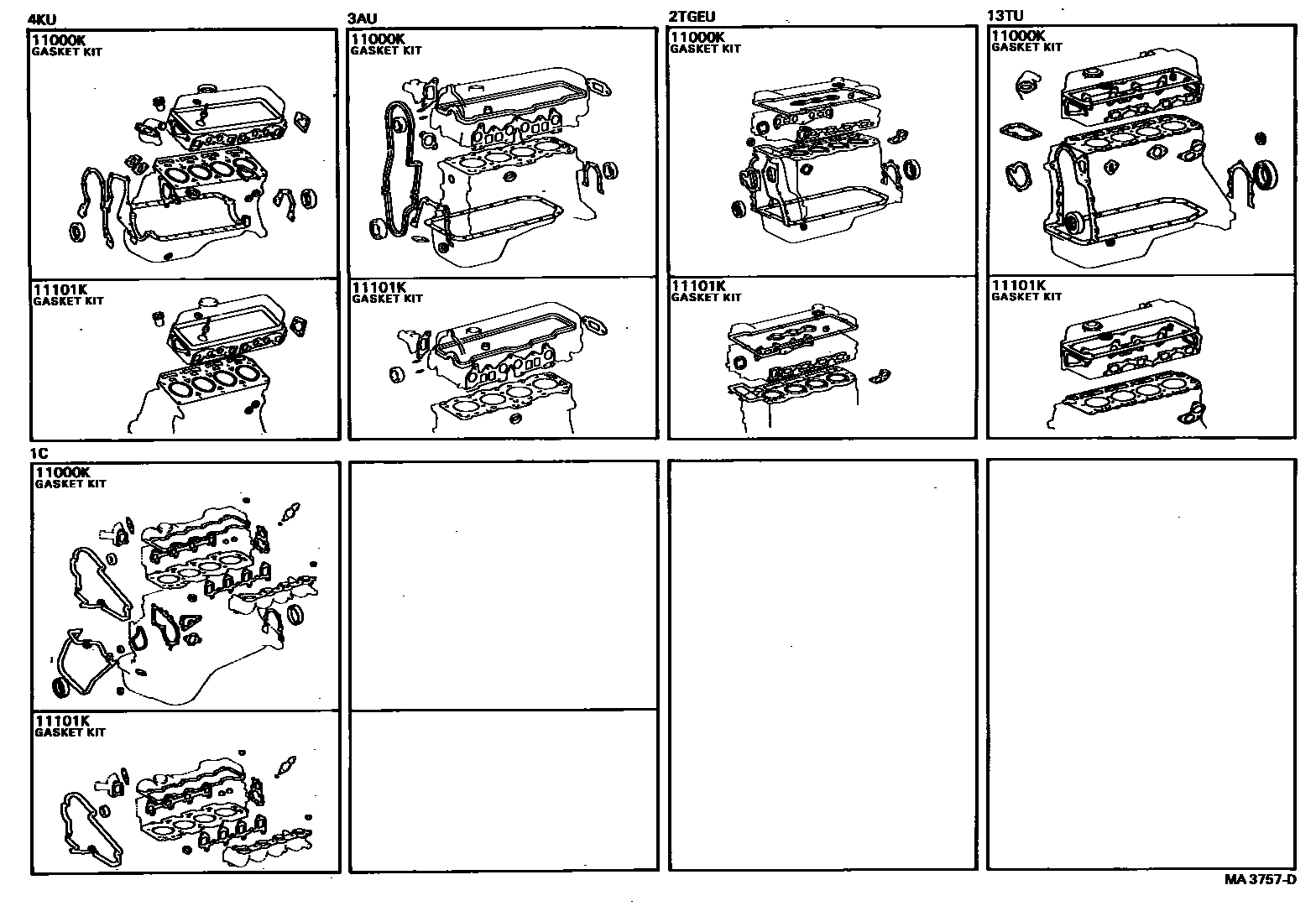

Parts diagram
11000KGASKET KIT, ENGINE OVERHAUL
main04111-13022i197903-197910
sub04111-13023
main04111-13023i197910-198101
sub04111-13024
main04111-13024i198101-198102
sub04111-13025
main04111-13025i198102-198105
sub04111-13026
main04111-13026i198105-198108
sub04111-13030
main04111-13030i198108-198211
sub04111-13031
main04111-13031i198211-198304
main04111-15020i197903-197906
sub04111-15021
main04111-15021i197906-198304
sub04111-15022
main04111-27032i197903-197910
sub04111-27033
main04111-27033i197910-198108
sub04111-27034
main04111-27034i198108-198304
sub04111-27035
main04111-28013i197908-198008
sub04111-28018
main04111-28014i198008-198101
sub04111-28015
main04111-28015i198101-198108
sub04111-28016
main04111-64010i198202-198207
sub04111-64011
main04111-64011i198207-198304
sub04111-64012
main04111-64012i198304-198304
sub04111-64013
11101KGASKET KIT, ENGINE VALVE GRIND
main04112-13011i198108-198211
sub04112-13012
main04112-13012i198211-198304
sub04112-13013
main04112-15020i197903-197906
sub04112-15021
main04112-15021i197906-198304
main04112-24043i197903-198101
sub04112-24044
main04112-24044i198101-198102
sub04112-24045
main04112-24045i198102-198108
sub04112-13011
main04112-27032i197903-197910
sub04112-27033
main04112-27033i197910-198304
main04112-28013i197908-198008
sub04112-28017
main04112-28014i198008-198101
sub04112-28015
main04112-28015i198101-198108
sub04112-28016
main04112-64010i198202-198304
sub04112-64011

2 parts on this diagram · 1 diagram in section
