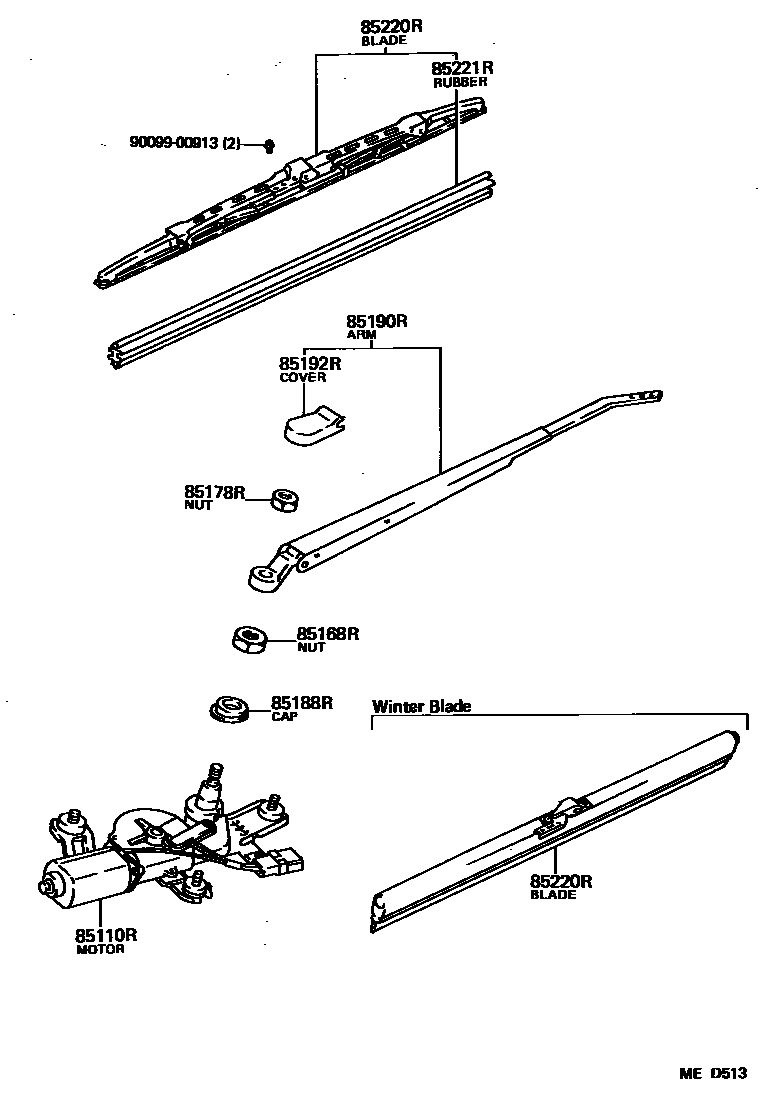

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85110-12280iAE8#..3D198401-198505

main85110-12281iAE8#..3D198505-198704

main85110-12460iAE8#..3D198305-198401

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iAE8#..3D198305-198704

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iAE8#..3D198305-198704

85188RCAP, REAR WIPER PIVOT, NO.1

main85179-12280iAE8#..3D198305-198704

85190RARM ASSY, REAR WIPER

main85190-12560iAE8#..3D198401-198704

main85190-12740iAE8#..3D198305-198401

85192RCOVER, REAR WIPER ARM

main85192-32010iAE8#..3D198305-198704

85220RBLADE ASSY, REAR WIPER

main85220-16440iAE8#..3D198505-198704

sub85220-16441

main85220-16580iAE8#..3D198608-198704

WINTER BLADE

sub85291-16010

main85220-20380iAE8#..3D198305-198401

sub85220-12601

main85220-24040iAE8#..3D198305-198401

WINTER BLADE

sub85291-24010

main85220-32120iAE8#..3D198401-198505

main85220-40040iAE8#..3D198401-198608

WINTER BLADE

sub85291-40010

85221RBLADE, REAR WIPER

main85221-14210iAE8#..3D198401-198505

sub85214-24H90

main85221-16080iAE8#..3D198505-198704

main85221-91C01iAE8#..3D198305-198401

sub85214-12H90

9009900913

main90099-00913

9 parts on this diagram · 1 diagram in section
