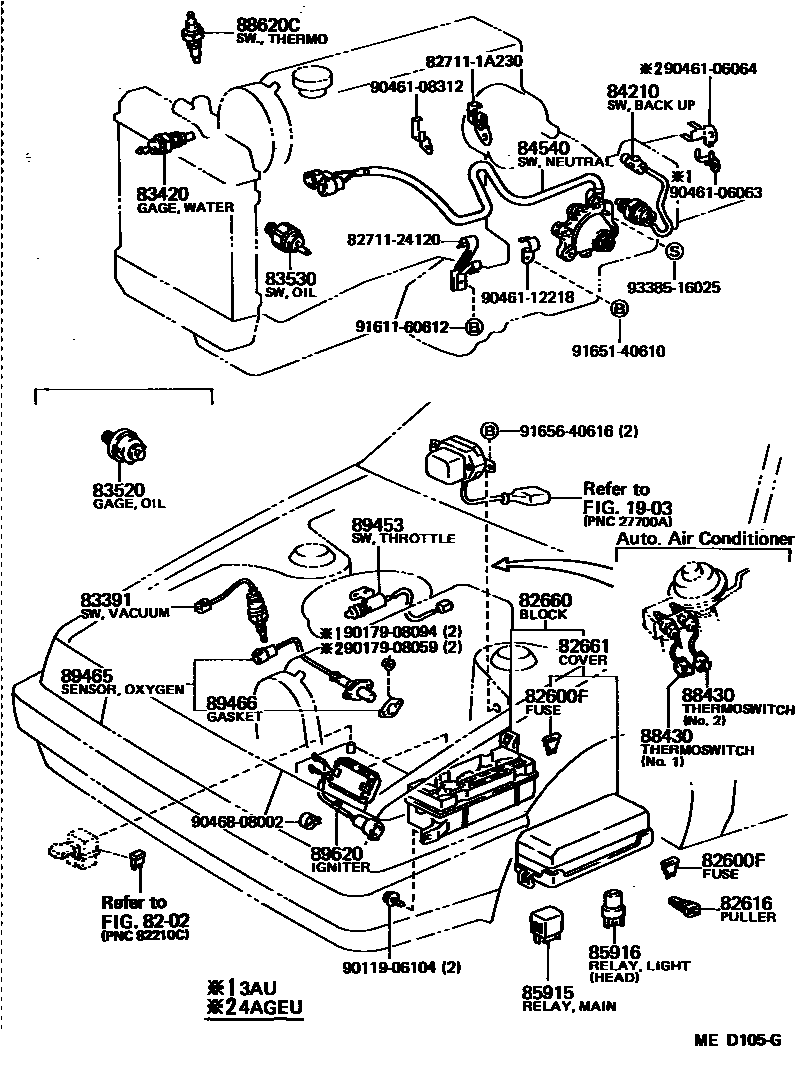

SWITCH & RELAY & COMPUTER
1903
8202
82600FFUSE, FUSE BLOCK
82616PULLER, FUSE
82660BLOCK ASSY, RELAY, ENGINE ROOM
82661COVER, RELAY BLOCK, NO.1
NO.2
ENGINE ROOM
83520GAGE ASSY,OIL PRESSURE SENDER
W/ANALOGUE METER
84210SWITCH ASSY, BACK-UP LAMP
85916RELAY, LIGHT CONTROL
TAIL & HEAD
88430THERMOSWITCH ASSY, AIR CONDITIONER
NO.2
NO.1
NO.2
NO.1
88620CTHERMO SWITCH ASSY
89453SWITCH, THROTTLE POSITION (FOR T.C.S.)
89620IGNITER ASSY
827111A230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A230
8271124120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-24120
9011906104
main90119-06104
9017908059
main90179-08059
9017908094
main90179-08094
9046106063
main90461-06063
9046106064
main90461-06064
9046108312
main90461-08312
9046112218
main90461-12218
9046808002
main90468-08002
9161160612
main91611-60612
9165140610
main91651-40610
9165640616
main91656-40616
9338516025
main93385-16025
34 parts on this diagram · 4 diagrams in section
