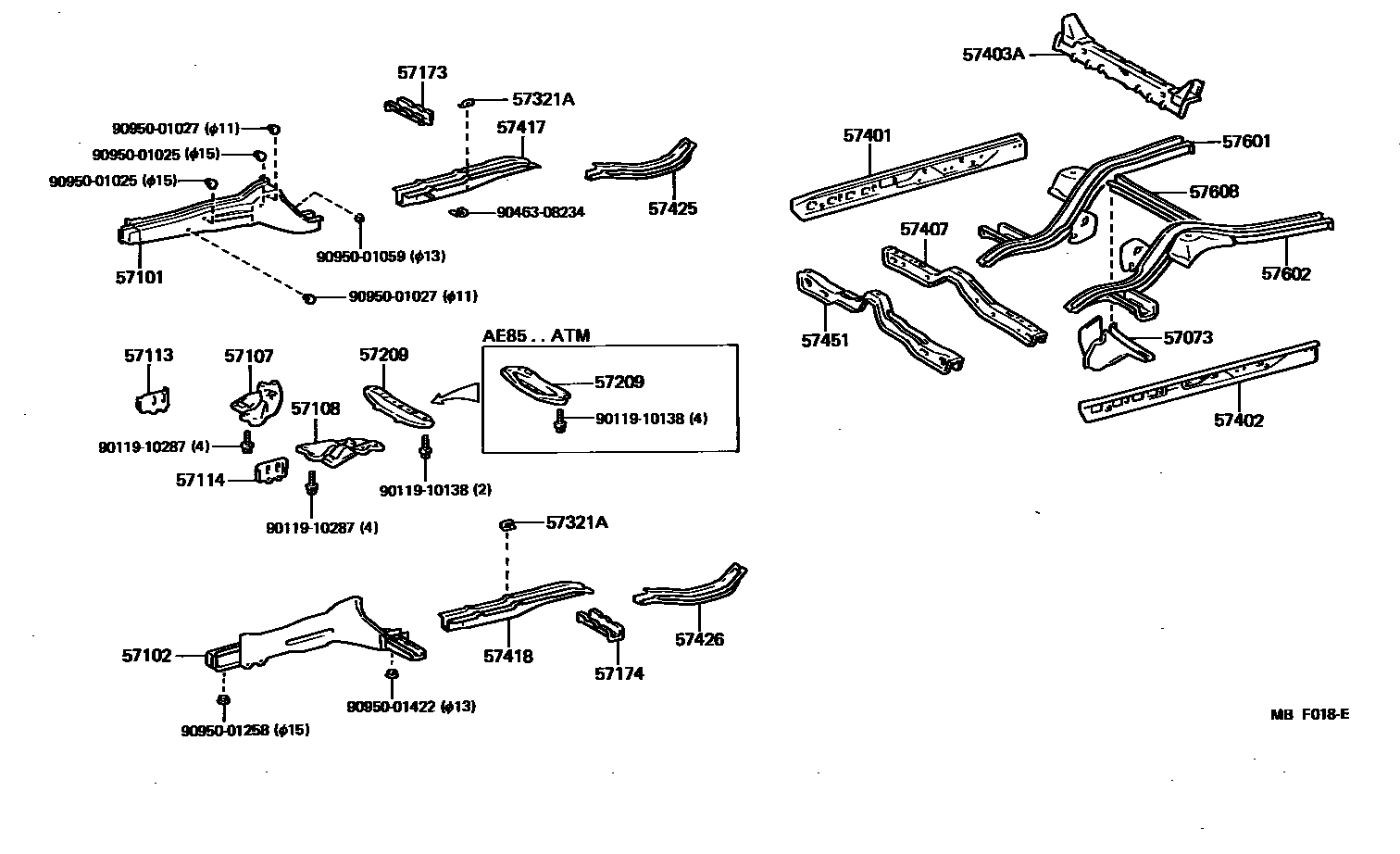

FLOOR SIDE MEMBER
57073BRACKET SUB-ASSY, LATERAL ROD
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57107BRACKET SUB-ASSY, STRUT BAR, RH
57108BRACKET SUB-ASSY, STRUT BAR, LH
W/OIL COOLER
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57173BOX, TORQUE, FRONT NO.2 RH
57174BOX, TORQUE, FRONT NO.2 LH
57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57321ARETAINER, CATALYTIC CONVERTER MOUNTING
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57403AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3
57407CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
PLANT.M21,M22
PLANT.A51-A54
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
PLANT.M21,M22
PLANT.A51-A54
57425REINFORCEMENT, FRONT FLOOR, NO.2 RH
PLANT.M21,M22
PLANT.A51-A54
57426REINFORCEMENT, FRONT FLOOR, NO.2 LH
PLANT.M21,M22
PLANT.A51-A54
57451MEMBER, FRONT FLOOR CROSS
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
PLANT. M21,M22
PLANT. M21,M22
PLANT. A51-A54
PLANT. A51-A54
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
PLANT. M21,M22
PLANT. M21,M22
PLANT. A51-A54
PLANT. A51-A54
57608CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2
9011910138
main90119-10138
9011910287
main90119-10287
9046308234
main90463-08234
9095001025
main90950-01025
9095001027
main90950-01027
9095001059
main90950-01059
9095001258
main90950-01258
9095001422
main90950-01422
31 parts on this diagram · 1 diagram in section
