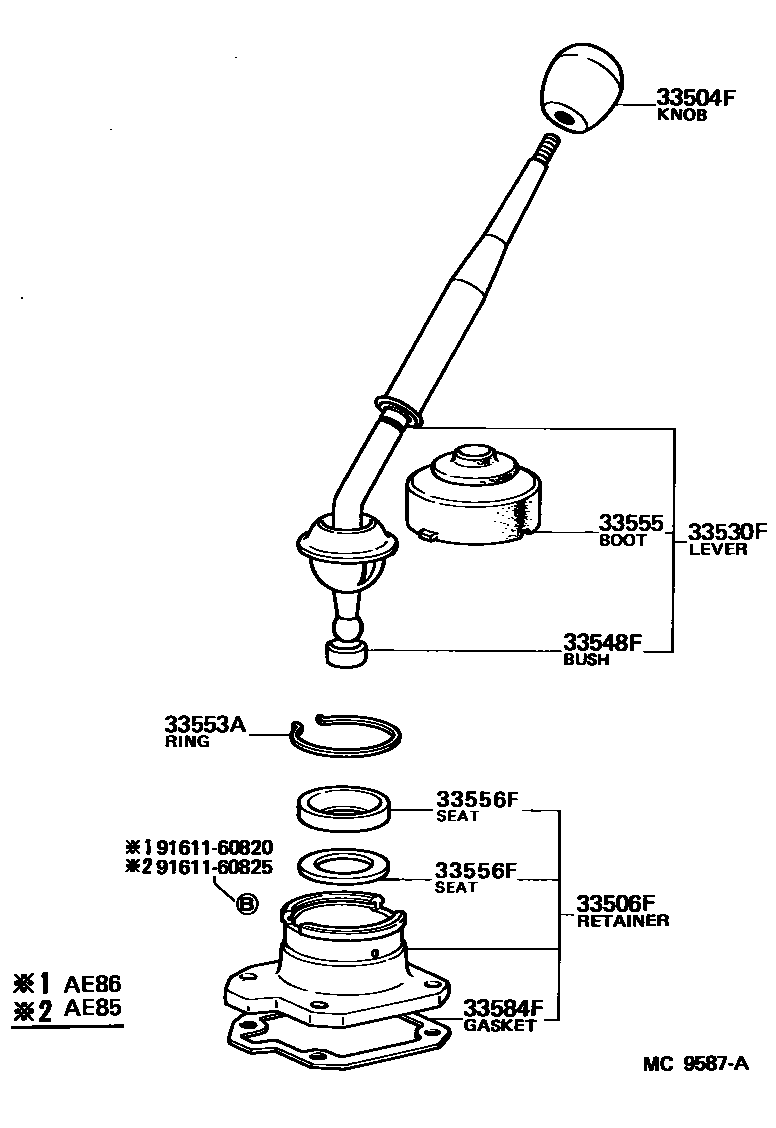

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-10020-01iAE85..5F..GL198305-198401

BLACK,BLACK,TRIM2#

main33504-12150-01iAE86198401-198505

LEATHER,BLACK,BLACK,TRIM2#

main33504-14070-01iAE85..5F..GL198401-198704

BLACK,BLACK,TRIM2#

main33504-24010-01iAE8#..5F..(GT,GTV,SE,SR)198505-198704

BLACK,BLACK,TRIM2#

main33542-24030-01iAE85..4FC198305-198505

BLACK,BLACK,TRIM2#

main33542-32040-01iAE8#..4FC198505-198704

BLACK,BLACK,TRIM2#

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-14021iAE8#..5F198305-198704

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-12330iAE85..5F198305-198704

main33530-12450iAE86..5F198305-198704

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-14010iAE8#..5F198305-198704

33553ARING, SNAP (FOR SHIFT LEVER SPRING SHEET)

main90521-49003iAE8#..5F198305-198704

33555BOOT, SHIFT LEVER

main33555-12080iAE8#..4FC198305-198704

main33555-12090iAE8#..5F198305-198704

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-14010iAE8#..5F198305-198704

T=13.5

main33556-14020iAE8#..5F198305-198704

T=3.0

33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)

main33584-20010iAE8#..5F198305-198704

9161160820

main91611-60820

9161160825

main91611-60825

10 parts on this diagram · 3 diagrams in section
