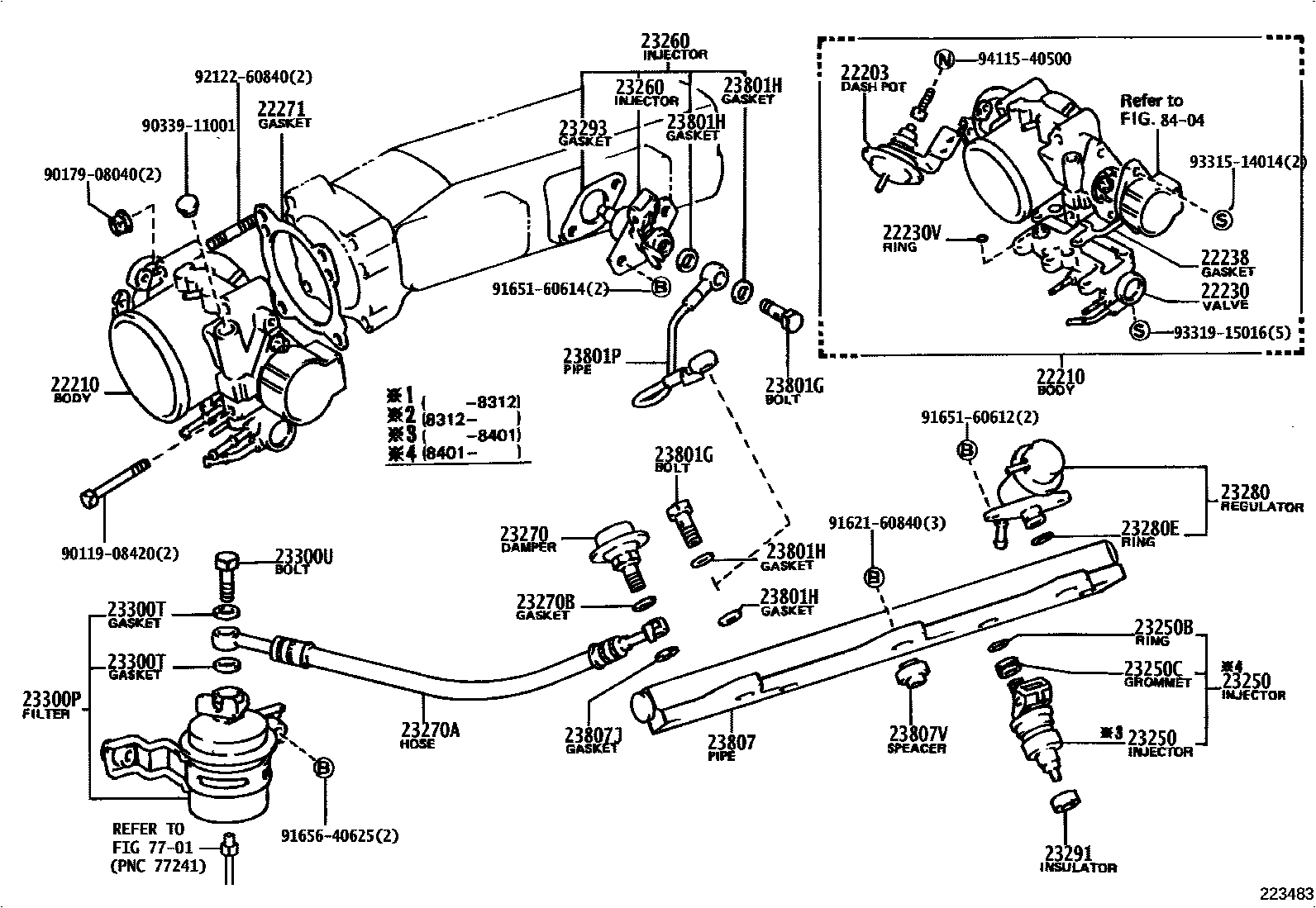

FUEL INJECTION SYSTEM
22203DASH POT SUB-ASSY(FOR THROTTLE BODY)
22230VALVE ASSY, AUXILIARY AIR
22230VRING, O(FOR AUXILIARY AIR VALVE)
22238GASKET, AUXILIARY AIR VALVE
sub22238-16020
22271GASKET, THROTTLE BODY
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
sub23207-16020
23270AHOSE(FOR PULSATION DAMPER)
23270BGASKET(FOR PULSATION DAMPER HOSE)
sub23232-41081
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23293GASKET, COLD START INJECTOR
sub23293-42010
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23807PIPE SUB-ASSY, FUEL DELIVERY
sub23807-16021
23807JGASKET, PIPE FUEL DELIVARY INLET
23807VSPACER, NO.1(FOR DELIVERY PIPE)
7701
8404
9011908420
main90119-08420
9017908040
main90179-08040
9033911001
main90339-11001
9162160840
main91621-60840
9165160612
main91651-60612
9165160614
main91651-60614
9165640625
main91656-40625
9212260840
main92122-60840
9331514014
main93315-14014
9331915016
main93319-15016
9411540500
main94115-40500
39 parts on this diagram · 2 diagrams in section
