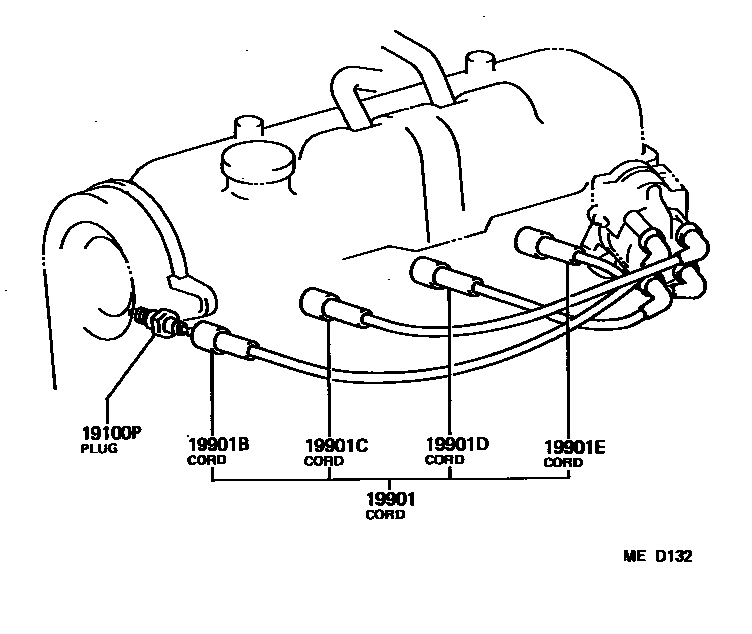

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19100PPLUG, SPARK

main90919-01085i3AU..AE85198305-198704

main90919-01121i4AGEU..AE86198305-198704

main90919-01122i4AGEU..AE86198305-198704

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21328i4AGEU..AE86198305-198505

main90919-21369i4AGEU..AE86..4FC198505-198704

main90919-21374i4AGEU..AE86..5F198505-198704

sub90919-29005

main90919-22105i3AU..AE85198305-198704

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12356i3AU..AE85198305-198704

main90919-12502i4AGEU..AE86..5F198305-198704

sub90919-15558

main90919-12550i4AGEU..AE86..4FC198505-198704

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12357i3AU..AE85198305-198704

main90919-12503i4AGEU..AE86..5F198305-198704

sub90919-15559

main90919-12551i4AGEU..AE86..4FC198505-198704

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12358i3AU..AE85198305-198704

main90919-12504i4AGEU..AE86..5F198305-198704

sub90919-15560

main90919-12552i4AGEU..AE86..4FC198505-198704

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12359i3AU..AE85198305-198704

main90919-12505i4AGEU..AE86..5F198305-198704

sub90919-15561

main90919-12553i4AGEU..AE86..4FC198505-198704

6 parts on this diagram · 2 diagrams in section
