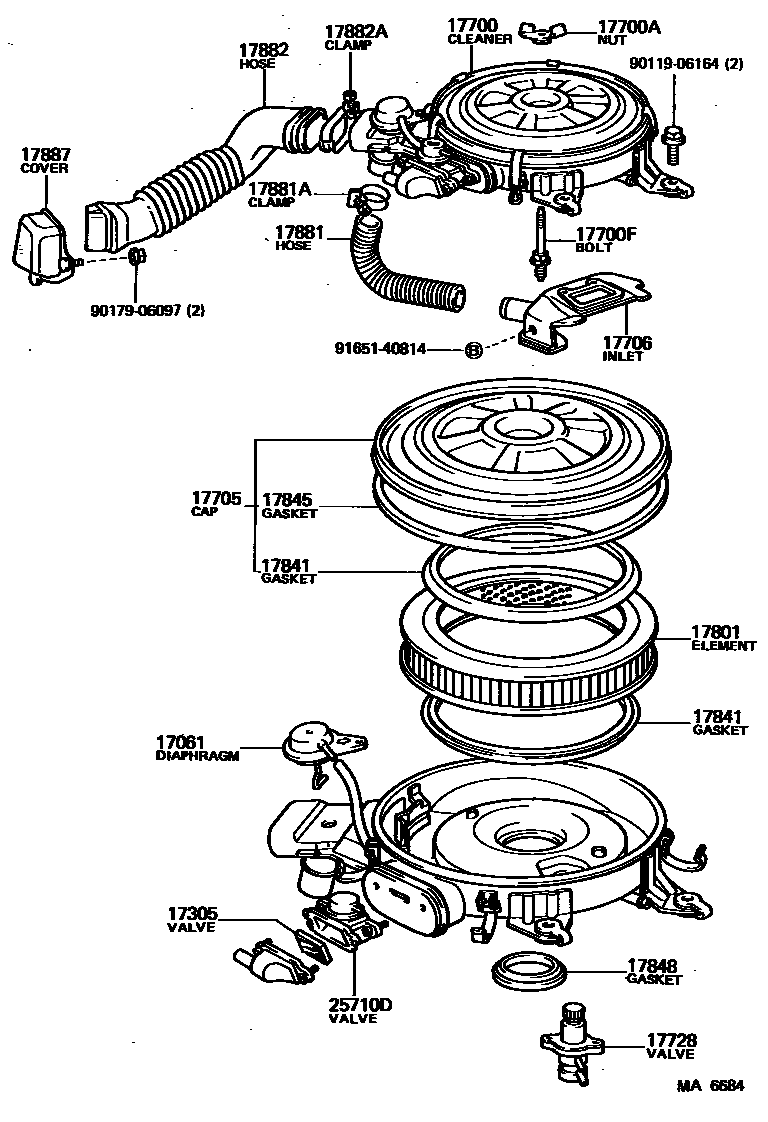

AIR CLEANER
17061DIAPHRAGM SUB-ASSY
17305VALVE SUB-ASSY, REED
17700CLEANER ASSY, AIR
17700ANUT, WING(FOR AIR CLEANER)
17700FBOLT, STUD(FOR AIR CLEANER SETTING)
17705CAP SUB-ASSY, AIR CLEANER
17706INLET SUB-ASSY, AIR CLEANER, NO.2
sub17902-16031
17728VALVE, THERMOSTATIC
17841GASKET, FILTER ELEMENT
17845GASKET, AIR CLEANER CAP
*G,L=1060
17848GASKET, AIR CLEANER TO CARBURETOR
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17882HOSE, AIR CLEANER, NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17887COVER, AIR CLEANER HOSE
25710DVALVE ASSY, AIR SWITCHING
9011906164
main90119-06164
9017906097
main90179-06097
9165140814
main91651-40814
21 parts on this diagram · 3 diagrams in section
