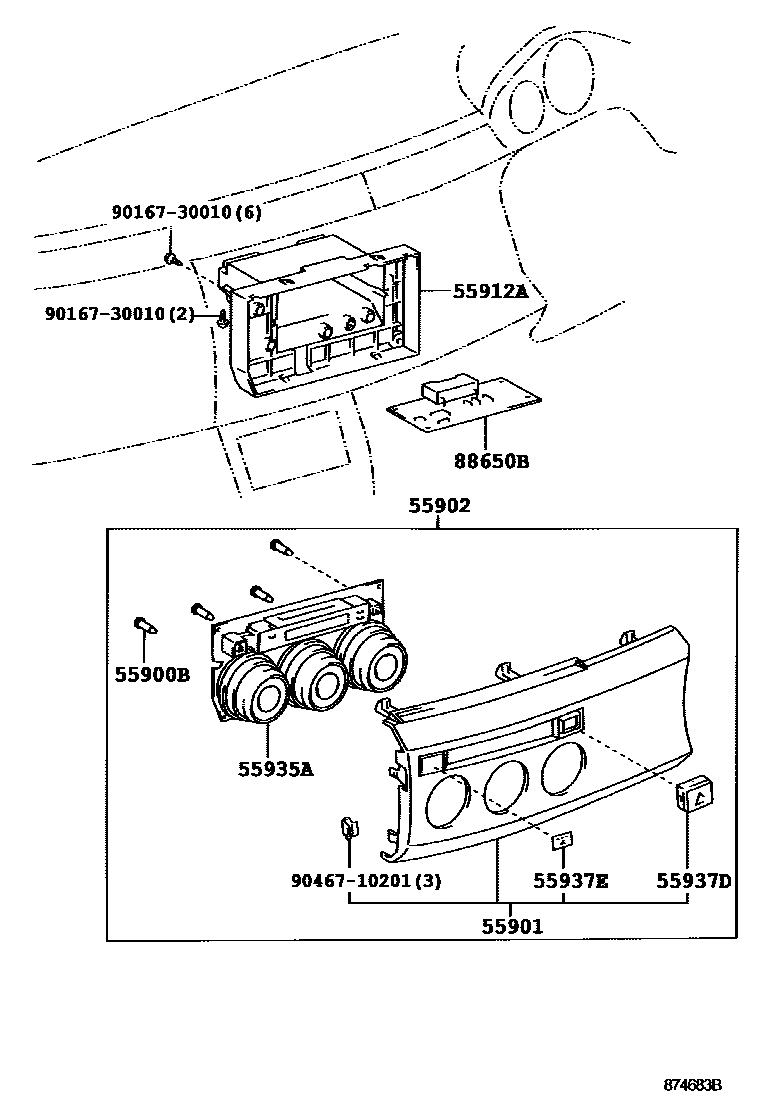

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1����-� ���� 0002 1������ 0003 1���

55900BBULB, AIR CONDITIONER CONTROL

main90010-05135×4iNZE127,ZZE12#200104-200404

55901BASE SUB-ASSY, HEATER CONTROL

main55901-12130-C0iZZE128..MTM200202-200204

55902LEVER SUB-ASSY, DEFROSTER CONTROL

main55902-12040-C0iZZE128..MTM200202-200204

main55902-12050-C0iNZE127,ZZE127,129200201-200404

55912AHOUSING, HEATER CONTROL

main55912-12080iNZE127,ZZE12#200104-200404

55935ACIRCUIT, CENTER CLUSTER MODULE

main55935-12100iZZE12#200104-200404

main55935-12140iNZE127,ZZE127,129200201-200404

55937DKNOB, CENTER CLUSTER MODULE, NO.1

main55905-12700iNZE127,ZZE12#200104-200404

55937EKNOB, CENTER CLUSTER MODULE, NO.2

main81942-12720iNZE127,ZZE12#200104-200404

88650BAMPLIFIER ASSY, AIRCONDITIONER

main88650-1E560iNZE127,ZZE12#200104-200209

main88650-1E561iNZE127,ZZE12#200209-200404

9016730010

main90167-30010

9046710201

main90467-10201

10 parts on this diagram · 3 diagrams in section
