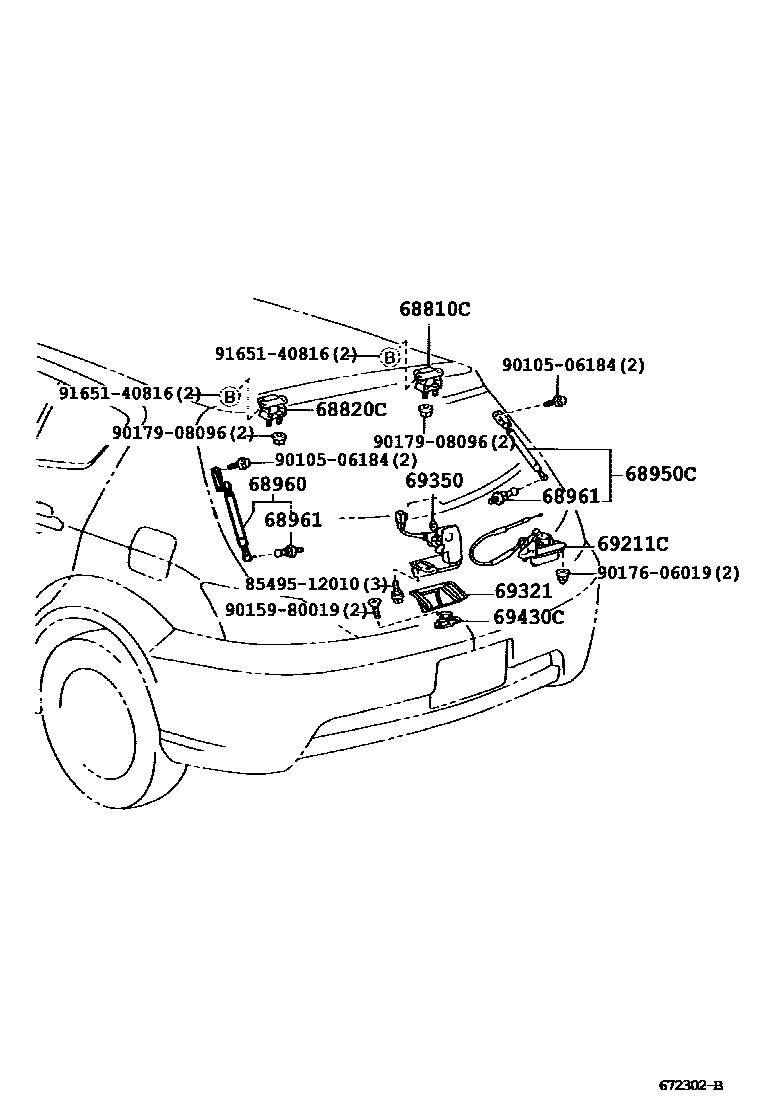

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-21050iNZE127,ZZE12#200104-200404

68820CHINGE ASSY, BACK DOOR, LH

main68810-21050iNZE127,ZZE12#200104-200404

68950CSTAY ASSY, BACK DOOR, RH

main68950-19935iNZE127,ZZE12#200104-200404

68960STAY ASSY, BACK DOOR, LH

main68960-19845iNZE127,ZZE12#200104-200404

68961BOLT, BACK DOOR STAY

main68961-20051iNZE127,ZZE12#200104-200404

69211CHANDLE, BACK DOOR OUTSIDE

main69023-12010iNZE127,ZZE12#200104-200404

69321COVER, BACK DOOR LOCK

main69321-12040iNZE127,ZZE12#200104-200404

69350LOCK ASSY, BACK DOOR

main69350-12220iNZE127,ZZE12#200104-200404

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-12340iNZE127,ZZE12#200104-200404

sub69430-52020

8549512010

main85495-12010

9010506184

main90105-06184

9015980019

main90159-80019

9017606019

main90176-06019

9017908096

main90179-08096

9165140816

main91651-40816

15 parts on this diagram · 1 diagram in section
