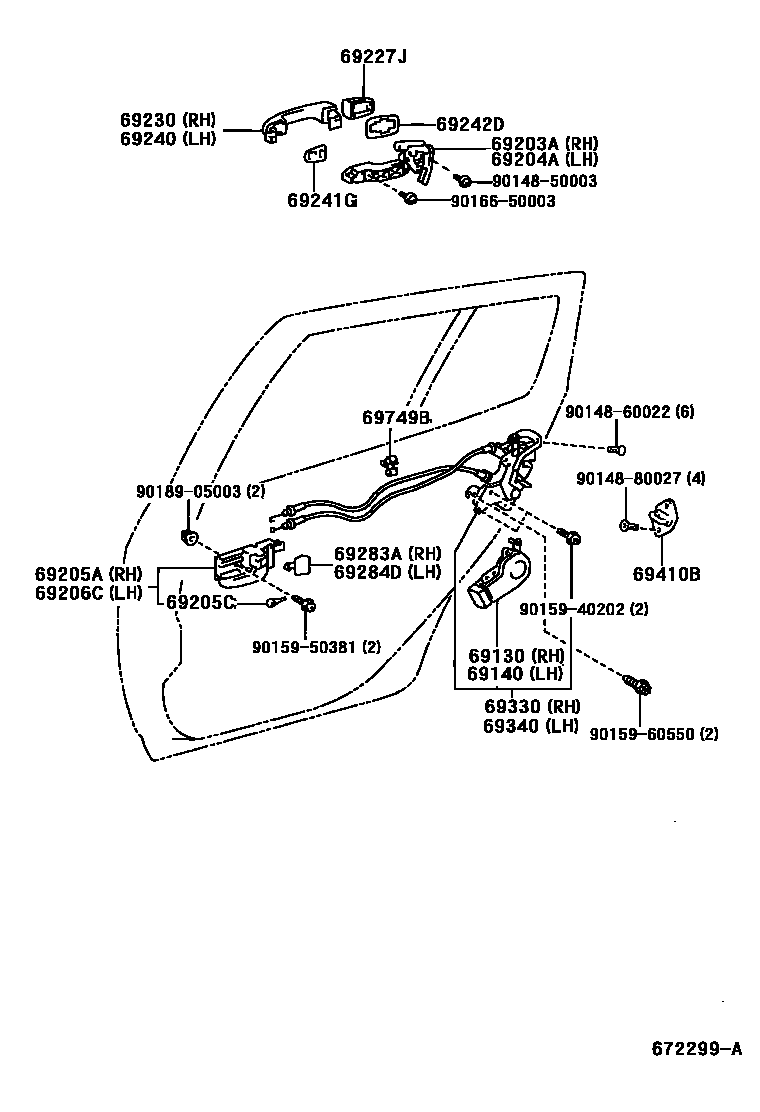

REAR DOOR LOCK & HANDLE

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-12040iNZE127,ZZE12#200104-200404

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-12040iNZE127,ZZE12#200104-200404

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-12010iNZE127,ZZE12#200104-200212

sub69203-12050

main69203-12050iNZE127,ZZE12#200212-200404

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-12010iNZE127,ZZE12#200104-200212

sub69204-12050

main69204-12050iNZE127,ZZE12#200212-200404

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-12190-C0iNZE127,ZZE127,129200201-200404

sub69205-12190

main69205-12210-C0iZZE12#200104-200404

sub69205-12210

main69205-12210-C0iZZE128..MTM200202-200204

sub69205-12210

main69205-12210-C0iZZE128..MTM200206-200207

sub69205-12210

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04027iNZE127,ZZE12#200104-200404

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-12190-C0iNZE127,ZZE127,129200201-200404

sub69206-12190

main69206-12210-C0iZZE128..MTM200202-200204

sub69206-12210

main69206-12210-C0iZZE128..MTM200206-200207

sub69206-12210

main69206-12210-C0iZZE12#200104-200404

sub69206-12210

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-42070-01iNZE127200208-200209

sub69227-42070

main69227-42070-A3iZZE127200201-200404

SUPER WHITE 2,040

sub69227-42070

main69227-42070-A3iZZE127200109-200404

sub69227-42070

main69227-42070-B4iNZE127,ZZE12#200104-200404

SILVER ME.,1D0

sub69227-42070

main69227-42070-C0iNZE127,ZZE12#200104-200404

BLACK,202

sub69227-42070

main69227-42070-D1iNZE127,ZZE12#200208-200404

SUPER RED II,3E5

sub69227-42070

main69227-42070-D4iZZE12#200104-200201

DK.RED MC.,3Q2

sub69227-42070

main69227-42070-E1iNZE127,ZZE12#200208-200404

BEIGE ME.,4P7

sub69227-42070

main69227-42070-F3iNZE127,ZZE12#200201-200208

YELLOW M.M.,584

sub69227-42070

main69227-42070-J5iZZE12#200104-200201

GRAYISH BLUE ME.,8N6

sub69227-42070

main69227-42070-J6iNZE127,ZZE12#200201-200208

BLUE M.M.,8Q1

sub69227-42070

main69227-42070-K0iNZE127,ZZE12#200104-200404

DARK PURPLE MC.,946

sub69227-42070

main69227-42070-X0iZZE128..MTM200202-200204

sub69227-42070

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69211-12220-01iNZE127200208-200209

sub69211-12220

sub69211-52090

main69211-12220-A0iNZE127,ZZE128,129200109-200404

sub69211-12220

sub69211-52090

main69211-12220-A0iNZE127,ZZE128,129200201-200404

SUPER WHITE 2,040

sub69211-12220

sub69211-52090

main69211-12220-B7iNZE127,ZZE12#200104-200404

SILVER ME.,1D0

sub69211-12220

sub69211-52090

main69211-12220-C1iNZE127,ZZE12#200104-200404

BLACK,202

sub69211-12220

sub69211-52090

main69211-12220-D0iNZE127,ZZE12#200208-200404

SUPER RED II,3E5

sub69211-12220

sub69211-52090

main69211-12220-D6iZZE12#200104-200201

DK.RED MC.,3Q2

sub69211-12220

sub69211-52090

main69211-12220-E0iNZE127,ZZE12#200208-200404

BEIGE ME,4P7

sub69211-12220

sub69211-52090

main69211-12220-F3iNZE127,ZZE12#200201-200208

YELLOW M.M.,584

sub69211-12220

sub69211-52090

main69211-12220-J1iZZE12#200104-200201

GRAYISH BLUE ME.,8N6

sub69211-12220

sub69211-52090

main69211-12220-J2iNZE127,ZZE12#200201-200208

BLUE M.M.,8Q1

sub69211-12220

sub69211-52090

main69211-12220-K0iNZE127,ZZE12#200104-200404

DARK PURPLE MC.,946

sub69211-12220

sub69211-52090

main69211-12220-X0iZZE128..MTM200202-200204

sub69211-12220

sub69211-52090

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69211-12220-01iNZE127200208-200209

sub69211-12220

sub69211-52090

main69211-12220-A0iZZE127200201-200404

SUPER WHITE 2,040

sub69211-12220

sub69211-52090

main69211-12220-A0iZZE127200109-200404

sub69211-12220

sub69211-52090

main69211-12220-B7iNZE127,ZZE12#200104-200404

SILVER ME.,1D0

sub69211-12220

sub69211-52090

main69211-12220-C1iNZE127,ZZE12#200104-200404

BLACK,202

sub69211-12220

sub69211-52090

main69211-12220-D0iNZE127,ZZE12#200208-200404

SUPER RED II,3E5

sub69211-12220

sub69211-52090

main69211-12220-D6iZZE12#200104-200201

DK.RED MC.,3Q2

sub69211-12220

sub69211-52090

main69211-12220-E0iNZE127,ZZE12#200208-200404

BEIGE ME,4P7

sub69211-12220

sub69211-52090

main69211-12220-F3iNZE127,ZZE12#200201-200208

YELLOW M.M.,584

sub69211-12220

sub69211-52090

main69211-12220-J1iZZE12#200104-200201

GRAYISH BLUE ME.,8N6

sub69211-12220

sub69211-52090

main69211-12220-J2iNZE127,ZZE12#200201-200208

BLUE M.M.,8Q1

sub69211-12220

sub69211-52090

main69211-12220-K0iNZE127,ZZE12#200104-200404

DARK PURPLE MC.,946

sub69211-12220

sub69211-52090

main69211-12220-X0iZZE128..MTM200202-200204

sub69211-12220

sub69211-52090

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-42020iNZE127,ZZE12#200104-200404

69242DPAD, REAR DOOR OUTSIDE HANDLE, LH

main69242-42010iNZE127,ZZE12#200104-200404

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-12040-C0iZZE128..MTM200206-200207

main69283-12040-C0iZZE128..MTM200202-200204

main69283-12040-C0iNZE127,ZZE12#200104-200404

BLACK,TRIM2#

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69283-12040-C0iZZE128..MTM200206-200207

main69283-12040-C0iZZE128..MTM200202-200204

main69283-12040-C0iNZE127,ZZE12#200104-200404

BLACK,TRIM2#

69330LOCK ASSY, REAR DOOR, RH

main69050-12390iNZE127,ZZE12#200104-200404

69340LOCK ASSY, REAR DOOR, LH

main69060-12390iNZE127,ZZE12#200104-200404

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20110iNZE127,ZZE12#200104-200404

69749BCLAMP, REAR DOOR LOCK LINK

main69749-32040iNZE127,ZZE12#200104-200404

9014850003

main90148-50003

9014860022

main90148-60022

9014880027

main90148-80027

9015940202

main90159-40202

9015950381

main90159-50381

9015960550

main90159-60550

9016650003

main90166-50003

9018905003

main90189-05003

26 parts on this diagram · 1 diagram in section
