FRONT DOOR LOCK & HANDLE

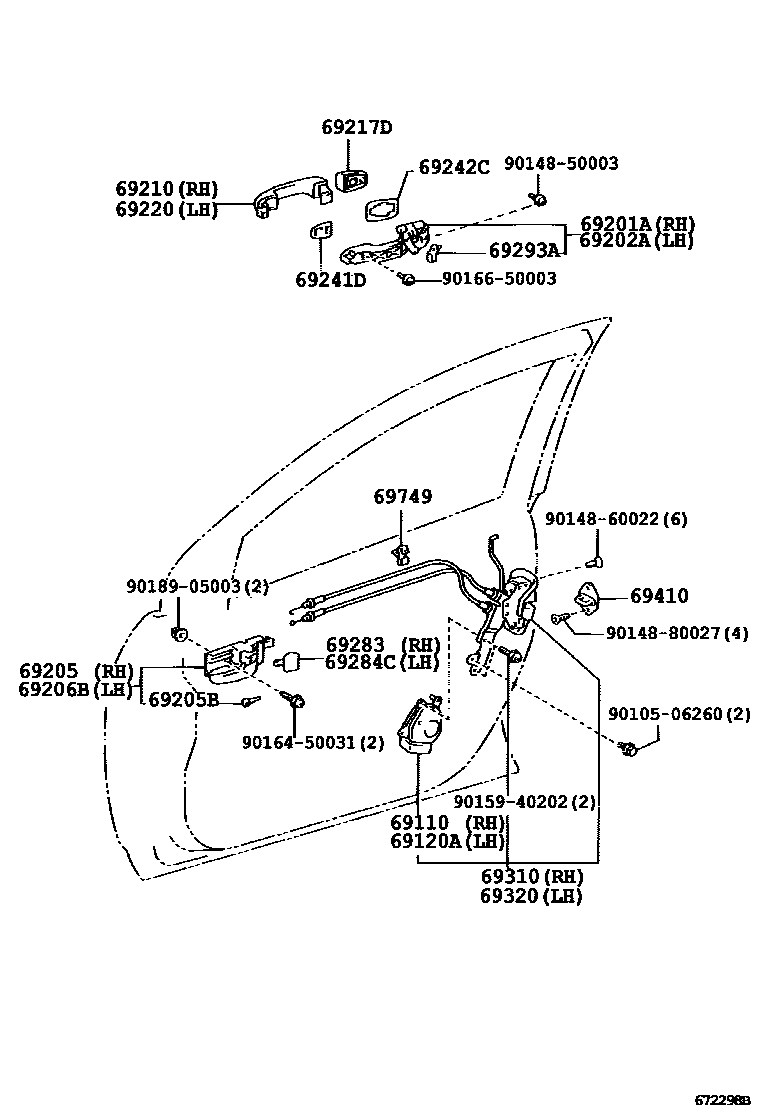

Parts diagram
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
main69110-63010i200104-200404
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
main69120-63010i200104-200404
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-42010i200104-200212
sub69201-52010
main69201-52010i200212-200404
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-42010i200104-200212
sub69202-52010
main69202-52010i200212-200404
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-12190-C0i200201-200404
sub69205-12190
main69205-12210-C0i200104-200404
sub69205-12210
main69205-12210-C0i200202-200204
sub69205-12210
main69205-12210-C0i200206-200207
sub69205-12210
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04027i200104-200404
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-12190-C0i200201-200404
sub69206-12190
main69206-12210-C0i200202-200204
sub69206-12210
main69206-12210-C0i200206-200207
sub69206-12210
main69206-12210-C0i200104-200404
sub69206-12210
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69211-12220-01i200208-200209
sub69211-12220
sub69211-52090
main69211-12220-A0i200109-200404
sub69211-12220
sub69211-52090
main69211-12220-A0i200201-200404
SUPER WHITE 2,040
sub69211-12220
sub69211-52090
main69211-12220-B7i200104-200404
SILVER ME.,1D0
sub69211-12220
sub69211-52090
main69211-12220-C1i200104-200404
BLACK,202
sub69211-12220
sub69211-52090
main69211-12220-D0i200208-200404
SUPER RED II,3E5
sub69211-12220
sub69211-52090
main69211-12220-D6i200104-200201
DK.RED MC.,3Q2
sub69211-12220
sub69211-52090
main69211-12220-E0i200208-200404
BEIGE ME,4P7
sub69211-12220
sub69211-52090
main69211-12220-F3i200201-200208
YELLOW M.M.,584
sub69211-12220
sub69211-52090
main69211-12220-J1i200104-200201
GRAYISH BLUE ME.,8N6
sub69211-12220
sub69211-52090
main69211-12220-J2i200201-200208
BLUE M.M.,8Q1
sub69211-12220
sub69211-52090
main69211-12220-K0i200104-200404
DARK PURPLE MC.,946
sub69211-12220
sub69211-52090
main69211-12220-X0i200202-200204
sub69211-12220
sub69211-52090
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
main69217-12040-A0i200109-200404
sub69217-12040
main69217-12040-A0i200201-200404
sub69217-12040
main69217-12040-A5i200208-200209
sub69217-12040
main69217-12040-B2i200104-200404
sub69217-12040
main69217-12040-C1i200104-200404
sub69217-12040
main69217-12040-D0i200208-200404
sub69217-12040
main69217-12040-D1i200104-200201
sub69217-12040
main69217-12040-D5i200202-200204
sub69217-12040
main69217-12040-E0i200208-200404
sub69217-12040
main69217-12040-F1i200201-200208
sub69217-12040
main69217-12040-J1i200104-200201
sub69217-12040
main69217-12040-J2i200201-200208
sub69217-12040
main69217-12040-K0i200104-200404
sub69217-12040
main69217-42020-02i200208-200209
sub69217-42020
sub69217-42010
main69217-42020-A3i200201-200404
sub69217-42020
sub69217-42010
main69217-42020-A3i200109-200404
sub69217-42020
sub69217-42010
main69217-42020-B4i200104-200404
sub69217-42020
sub69217-42010
main69217-42020-C0i200104-200404
sub69217-42020
sub69217-42010
main69217-42020-D1i200208-200404
sub69217-42020
sub69217-42010
main69217-42020-D4i200104-200201
sub69217-42020
sub69217-42010
main69217-42020-E1i200208-200404
sub69217-42020
sub69217-42010
main69217-42020-F3i200201-200208
sub69217-42020
sub69217-42010
main69217-42020-J5i200104-200201
sub69217-42020
sub69217-42010
main69217-42020-J6i200201-200208
sub69217-42020
sub69217-42010
main69217-42020-K0i200104-200404
sub69217-42020
sub69217-42010
main69217-42020-X0i200202-200204
sub69217-42020
sub69217-42010
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69211-12220-01i200208-200209
sub69211-12220
sub69211-52090
main69211-12220-A0i200201-200404
SUPER WHITE 2,040
sub69211-12220
sub69211-52090
main69211-12220-A0i200109-200404
sub69211-12220
sub69211-52090
main69211-12220-B7i200104-200404
SILVER ME.,1D0
sub69211-12220
sub69211-52090
main69211-12220-C1i200104-200404
BLACK,202
sub69211-12220
sub69211-52090
main69211-12220-D0i200208-200404
SUPER RED II,3E5
sub69211-12220
sub69211-52090
main69211-12220-D6i200104-200201
DK.RED MC.,3Q2
sub69211-12220
sub69211-52090
main69211-12220-E0i200208-200404
BEIGE ME,4P7
sub69211-12220
sub69211-52090
main69211-12220-F3i200201-200208
YELLOW M.M.,584
sub69211-12220
sub69211-52090
main69211-12220-J1i200104-200201
GRAYISH BLUE ME.,8N6
sub69211-12220
sub69211-52090
main69211-12220-J2i200201-200208
BLUE M.M.,8Q1
sub69211-12220
sub69211-52090
main69211-12220-K0i200104-200404
DARK PURPLE MC.,946
sub69211-12220
sub69211-52090
main69211-12220-X0i200202-200204
sub69211-12220
sub69211-52090
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
main69241-42020i200104-200404
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
main69242-42010i200104-200404
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
main69283-30040-C0i200104-200404
BLACK,TRIM2#
sub69283-30040
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
main69283-30040-C0i200104-200404
BLACK,TRIM2#
sub69283-30040
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
main69293-12030i200212-200404
main69293-12040i200212-200404
69310LOCK ASSY, FRONT DOOR, RH
main69030-12470i200104-200404
69320LOCK ASSY, FRONT DOOR, LH
main69040-12470i200104-200404
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-20110i200104-200404
69749CLAMP, FRONT DOOR LOCK LINK
main69749-32040i200104-200404
9010506260
main90105-06260
9014850003
main90148-50003
9014860022
main90148-60022
9014880027
main90148-80027
9015940202
main90159-40202
9016450031
main90164-50031
9016650003
main90166-50003
9018905003
main90189-05003

27 parts on this diagram · 1 diagram in section
