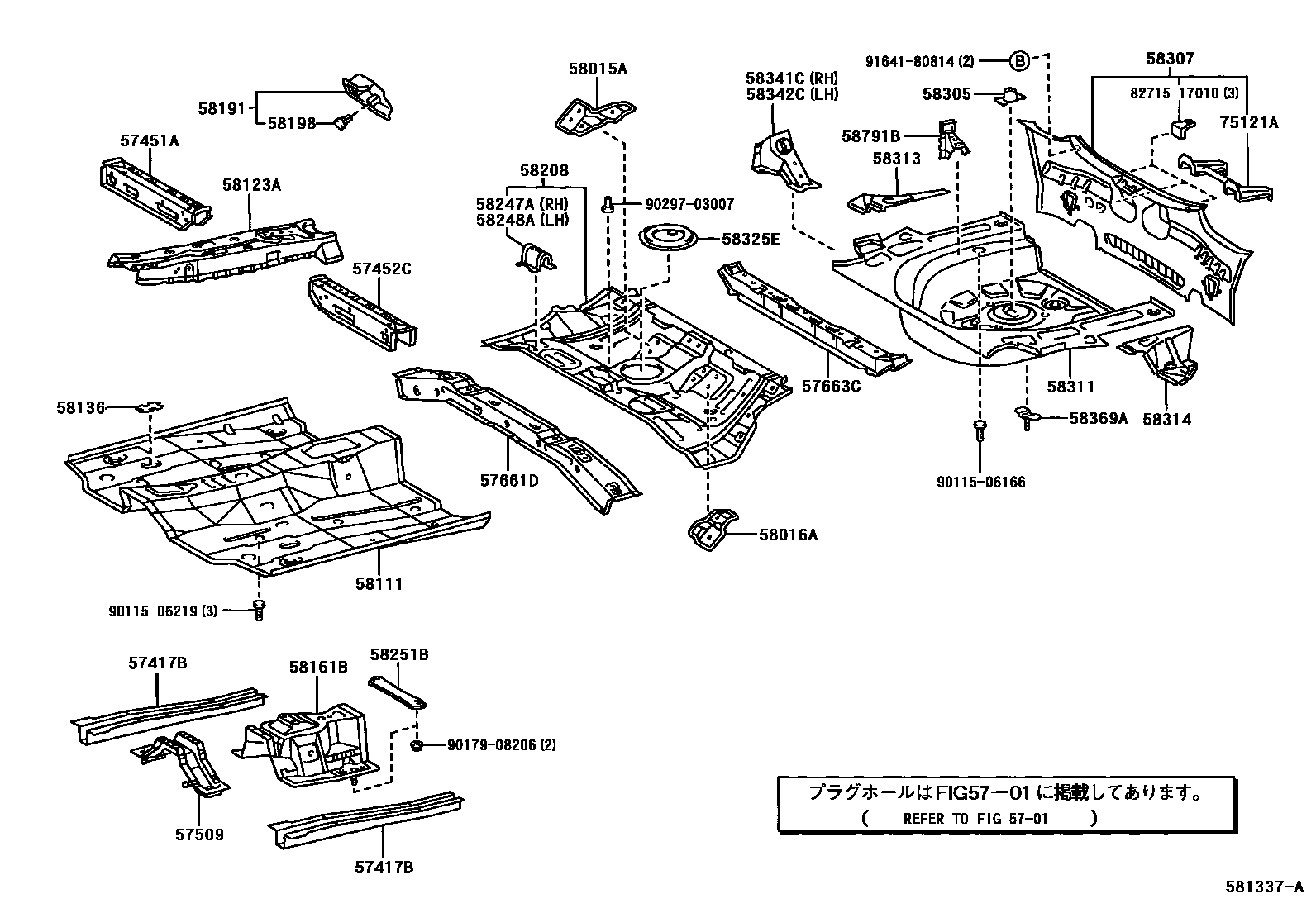

FLOOR PAN & LOWER BACK PANEL
5701
57417BREINFORCEMENT, FRONT FLOOR UNDER
57452CMEMBER, FRONT FLOOR CROSS, LH
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57661DMEMBER, REAR FLOOR CROSS, FRONT
57663CMEMBER, REAR FLOOR CROSS, CENTER
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58111PAN, FRONT FLOOR
58123ASUPPORT, SHIFT & SELECT LEVER
58136COVER, FRONT FLOOR HOLE
58191FOOTREST, FRONT FLOOR
58198CLIP, FOOTREST
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58251BBRACE, FLOOR PANEL, FRONT
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58369ABRACKET, FUEL TUBE, NO.3
58791BCARRIER, JACK
75121ABRACKET, REAR LICENSE PLATE
8271517010BRACKET,WIRING HARNESS CLAMP
main82715-17010
9011506166
main90115-06166
9011506219
main90115-06219
9017908206
main90179-08206
9029703007
main90297-03007
9164180814
main91641-80814
36 parts on this diagram · 2 diagrams in section
