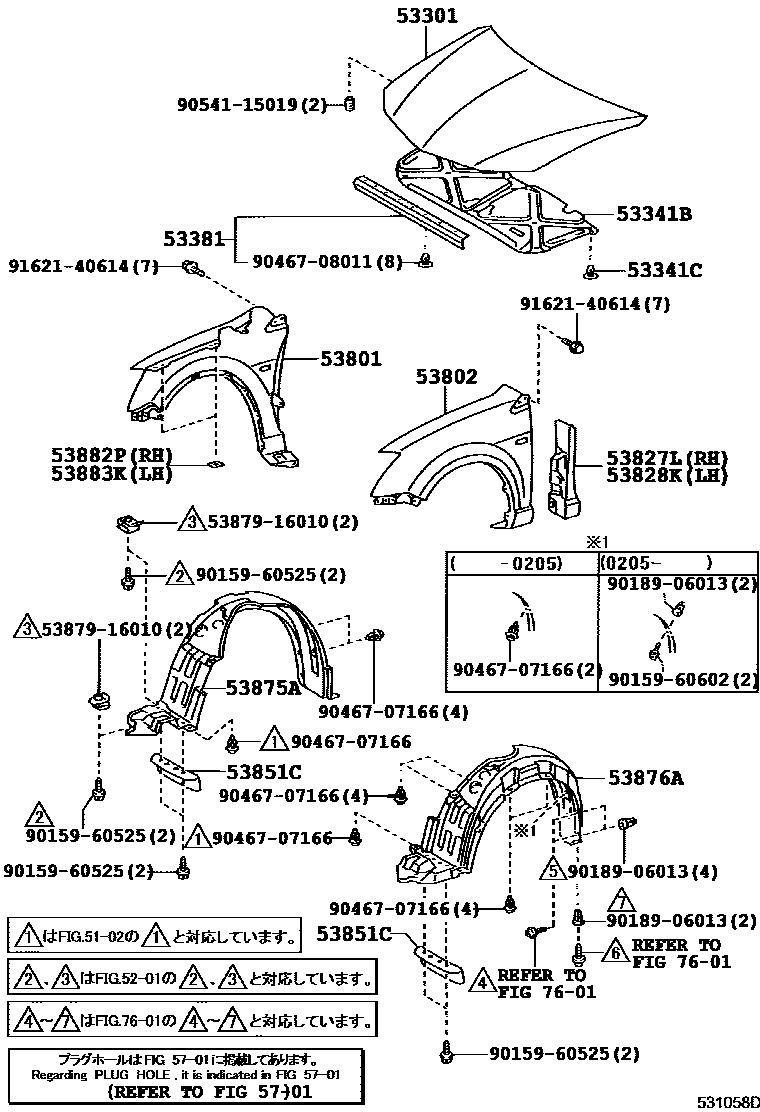

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-1A010iNZE127,ZZE12#200104

53341BINSULATOR, HOOD

main53341-12160iZZE128200104

53341CCLIP(FOR HOOD INSULATOR)

main90467-08124×8iZZE128200104

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-12180iNZE127,ZZE12#200104

53801FENDER SUB-ASSY, FRONT RH

main53811-1H180iNZE127,ZZE12#200104-200404

53802FENDER SUB-ASSY, FRONT LH

main53812-1H060iNZE127,ZZE12#200104-200404

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-12060iNZE127,ZZE12#200104

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-12060iNZE127,ZZE12#200104

53851CPAD, FRONT WHEEL OPENING EXTENSION, NO.1

main53851-47010×2iNZE127,ZZE12#200104

53875ALINER, FRONT FENDER, RH

main53805-12060iNZE127,ZZE12#200104

53876ALINER, FRONT FENDER, LH

main53806-12060iNZE127,ZZE12#200104

53882PSEAL, FRONT FENDER, RH

main53882-16030×2iNZE127,ZZE12#200104

53883KSEAL, FRONT FENDER, LH

main53882-16030×2iNZE127,ZZE12#200104

5701HOLE PLUG

→ Go to FIG 57-01

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

5387916010LINER, FRONT FENDER, LH

main53879-16010

9015960525

main90159-60525

9015960602

main90159-60602

9018906013

main90189-06013

9046707166

main90467-07166

9046708011

main90467-08011

9054115019

main90541-15019

9162140614

main91621-40614

23 parts on this diagram · 1 diagram in section
