Toyota WILL VS — RADIATOR GRILLE

52161KPIECE, FRONT BUMPER

53111GRILLE, RADIATOR

53111-1A460

53141AGARNISH, RADIATOR GRILLE, LOWER RH

53142AGARNISH, RADIATOR GRILLE, LOWER LH

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9011906587

90119-06587

9017906127

90179-06127

7 parts on this diagram · 1 diagram in section

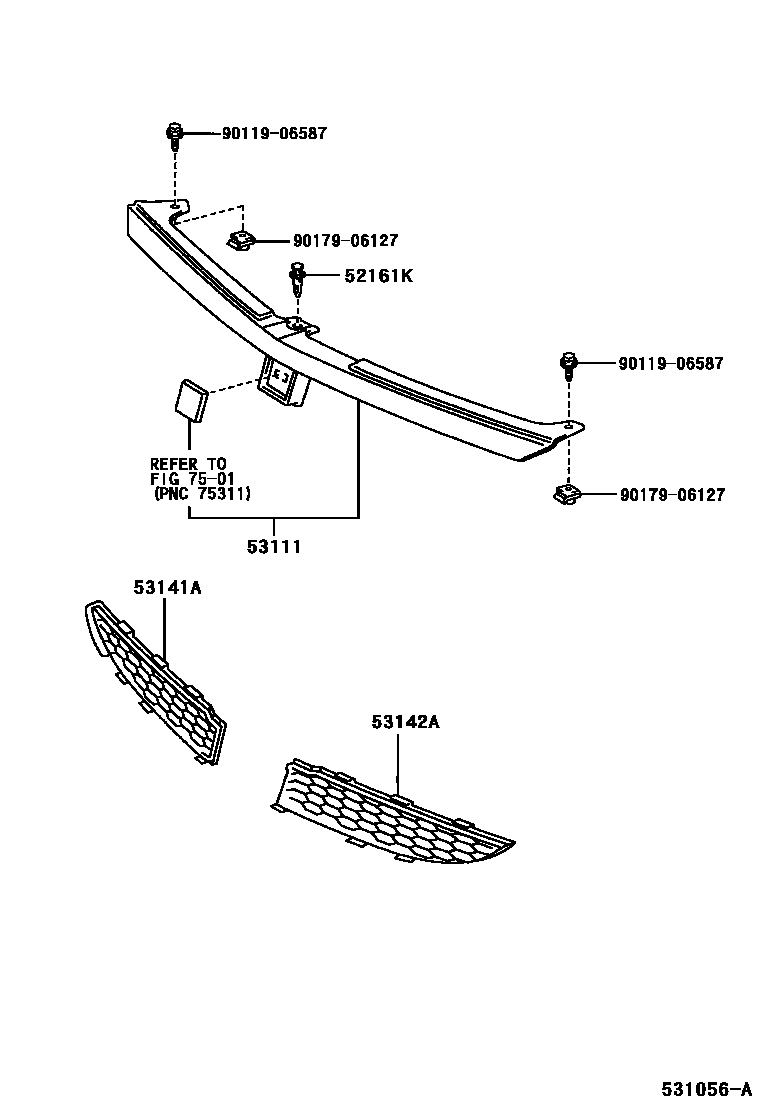

RADIATOR GRILLE for Toyota WILL VS

This section contains 7 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota WILL VS. Key components include: PIECE, FRONT BUMPER, GRILLE, RADIATOR, GARNISH, RADIATOR GRILLE, LOWER RH, GARNISH, RADIATOR GRILLE, LOWER LH, EMBLEM & NAME PLATE (EXTERIOR & INTERIOR).
