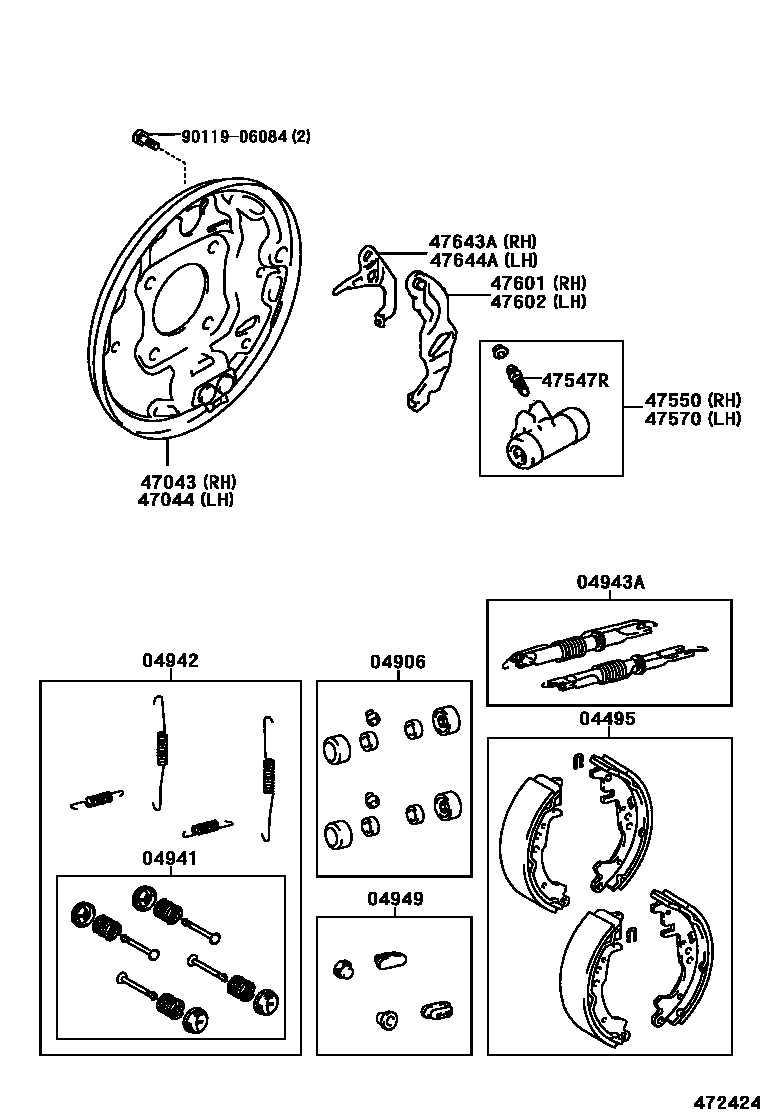

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-52040iNZE127,ZZE129200104-200404

04906CUP KIT, REAR WHEEL CYLINDER

main04906-52010iNZE127200201-200404

main04906-52020iZZE129200104-200404

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-12010iNZE127,ZZE129200104-200404

04942SPRING KIT, REAR BRAKE

main04942-12010iNZE127,ZZE129200104-200404

04943ASTRUT KIT, REAR BRAKE

main04943-12010iNZE127,ZZE129200104-200404

04949PLUG KIT, REAR BRAKE

main04949-12010iNZE127,ZZE129200104-200404

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-20140iNZE127,ZZE129200104-200404

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-20140iNZE127,ZZE129200104-200404

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iNZE127,ZZE129200104-200404

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-20211iZZE129200104-200404

main47550-52011iNZE127200201-200404

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-20101iZZE129200104-200404

main47570-52011iNZE127200201-200404

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-47010iNZE127,ZZE129200104-200404

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-47010iNZE127,ZZE129200104-200404

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-47010iNZE127,ZZE129200104-200404

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-47010iNZE127,ZZE129200104-200404

9011906084

main90119-06084

16 parts on this diagram · 1 diagram in section
