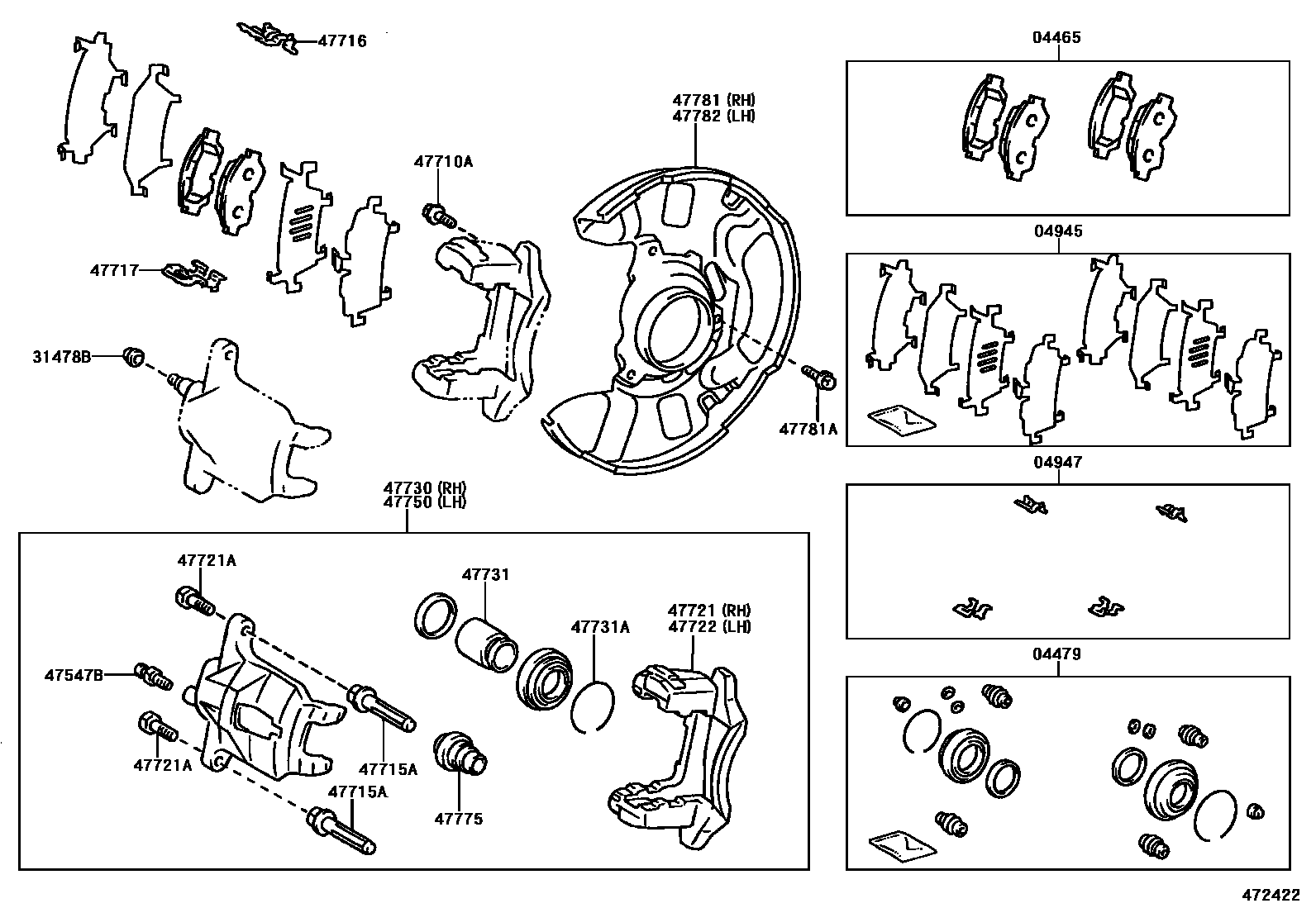

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-12591iZZE127,129200104-200105

main04465-12592iNZE127,ZZE127,129200105-200404

main04465-1A010iZZE128200104-200404

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-20320iNZE127,ZZE127,129200104-200404

main04479-20330iZZE128200104-200404

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-20210iNZE127,ZZE127,129200104-200404

main04945-32230iZZE128200104-200404

04947FITTING KIT, DISC BRAKE, FRONT

main04947-20110iNZE127,ZZE127,129200104-200404

main04947-20120iZZE128200104-200404

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iNZE127,ZZE12#200104

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iNZE127,ZZE12#200104

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208×4iNZE127,ZZE12#200104-200404

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22080×4iZZE128200104

main47715-52010×4iNZE127,ZZE127,129200104

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20200×2iNZE127,ZZE127,129200104

main47716-20210×2iZZE128200104

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20100×2iNZE127,ZZE127,129200104

main47717-20110×2iZZE128200104

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20440iNZE127,ZZE127,129200104

main47721-20450iZZE128200104

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164×4iNZE127,ZZE12#200104

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-20130iNZE127,ZZE127,129200104

main47722-20140iZZE128200104

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20600iNZE127,ZZE127,129200104

main47730-20610iZZE128200104

47731PISTON, FRONT DISC BRAKE

main47731-20260×2iNZE127,ZZE127,129200104

main47731-44010×2iZZE128200104

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005×2iNZE127,ZZE127,129200104

main90522-66001×2iZZE128200104

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20510iNZE127,ZZE127,129200104

main47750-20600iZZE128200104

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070×4iZZE128200104

main47775-52010×4iNZE127,ZZE127,129200104

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-12240iNZE127,ZZE12#200104-200404

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227×6iNZE127,ZZE12#200104-200404

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-12240iNZE127,ZZE12#200104-200404

21 parts on this diagram · 2 diagrams in section
