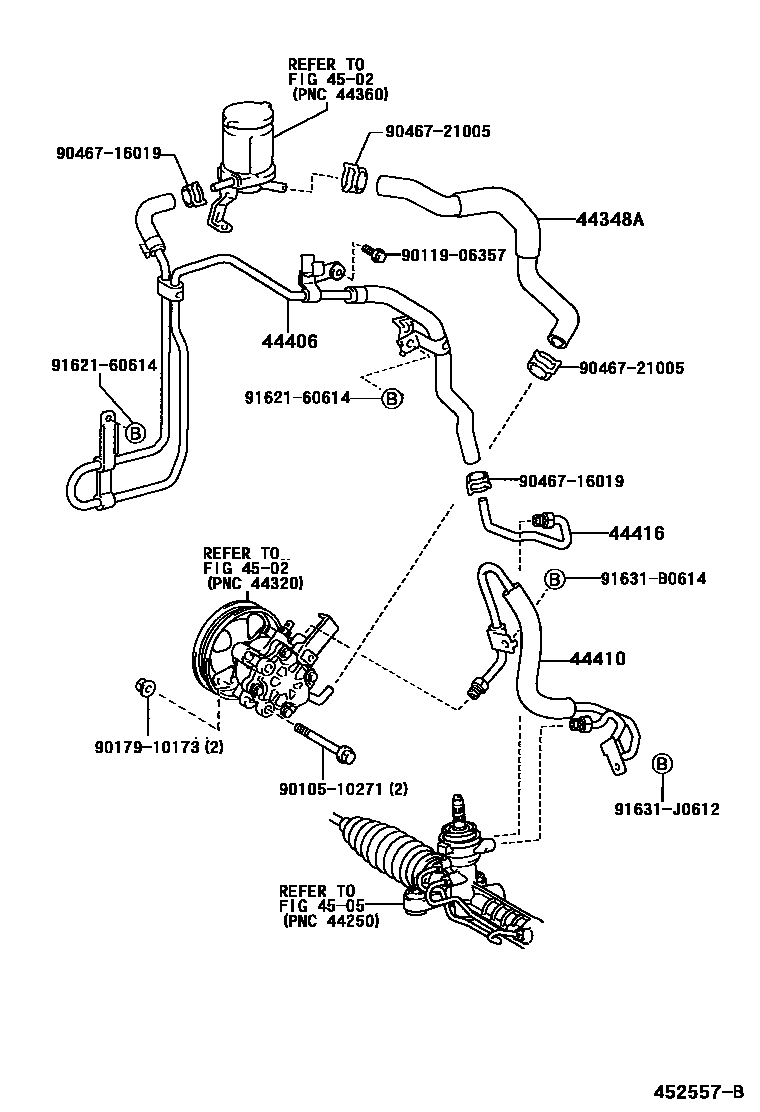

POWER STEERING TUBE

0001 1 0002 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-12090iZZE12#200104-200107

main44348-12091iZZE12#200107

44406TUBE SUB-ASSY, RETURN

main44406-13010iZZE127,128200104-200107

main44406-13011iZZE127,128200107

main44406-13020iZZE129200104-200107

main44406-13022iZZE129200107

44410TUBE ASSY, PRESSURE FEED

main44410-13010iZZE127,128200104

main44410-13030iZZE129200104

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-13010iZZE127,128200104

main44416-13030iZZE129200104-200107

main44416-13031iZZE129200107

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9010510271

main90105-10271

9011906357

main90119-06357

9017910173

main90179-10173

9046716019

main90467-16019

9046721005

main90467-21005

9162160614

main91621-60614

91631B0614

main91631-B0614

91631J0612

main91631-J0612

14 parts on this diagram · 2 diagrams in section
