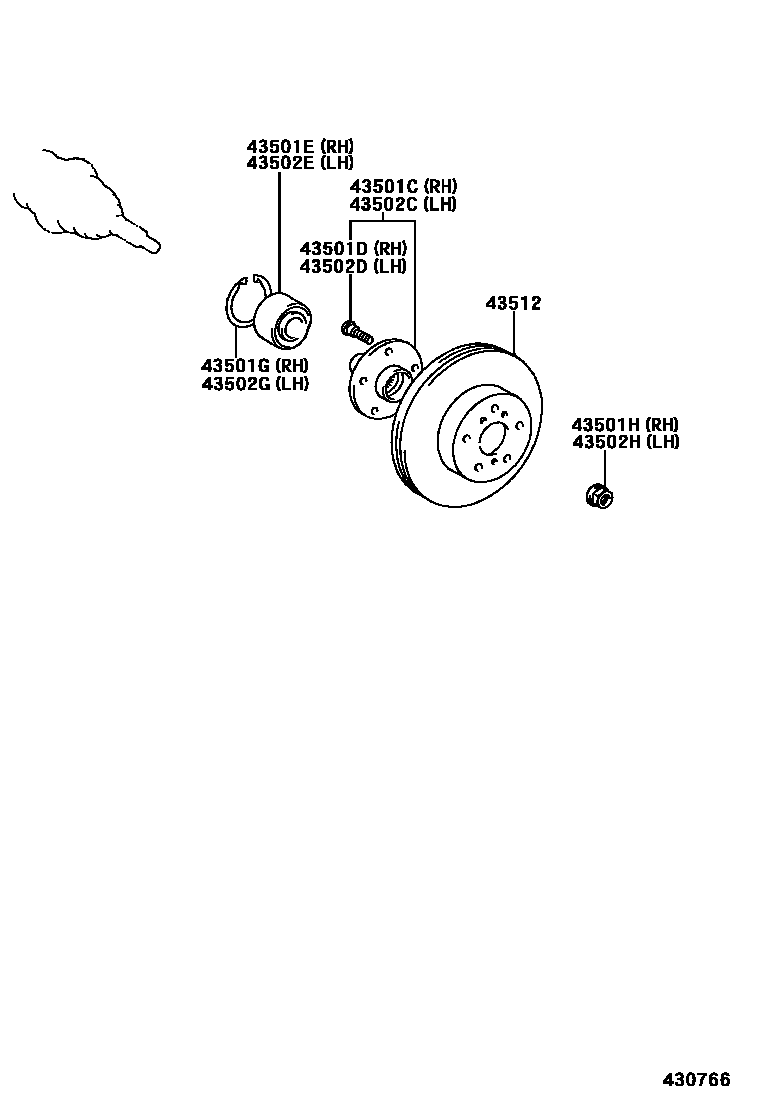

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-32080iNZE127,ZZE12#200104-200404

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iNZE127,ZZE12#200104-200404

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40066iNZE127,ZZE12#200104-200404

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002iNZE127,ZZE12#200104-200404

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iNZE127,ZZE12#200104-200404

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-32080iNZE127,ZZE12#200104-200404

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iNZE127,ZZE12#200104-200404

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40066iNZE127,ZZE12#200104-200404

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002iNZE127,ZZE12#200104-200404

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iNZE127,ZZE12#200104-200404

43512DISC, FRONT

main43512-20700iNZE127,ZZE127,129200104-200401

sub43512-20701

main43512-20701iNZE127,ZZE127,129200401-200404

main43512-20711iZZE128200401-200404

main43512-63010iZZE128200104-200401

sub43512-20711

11 parts on this diagram · 1 diagram in section
