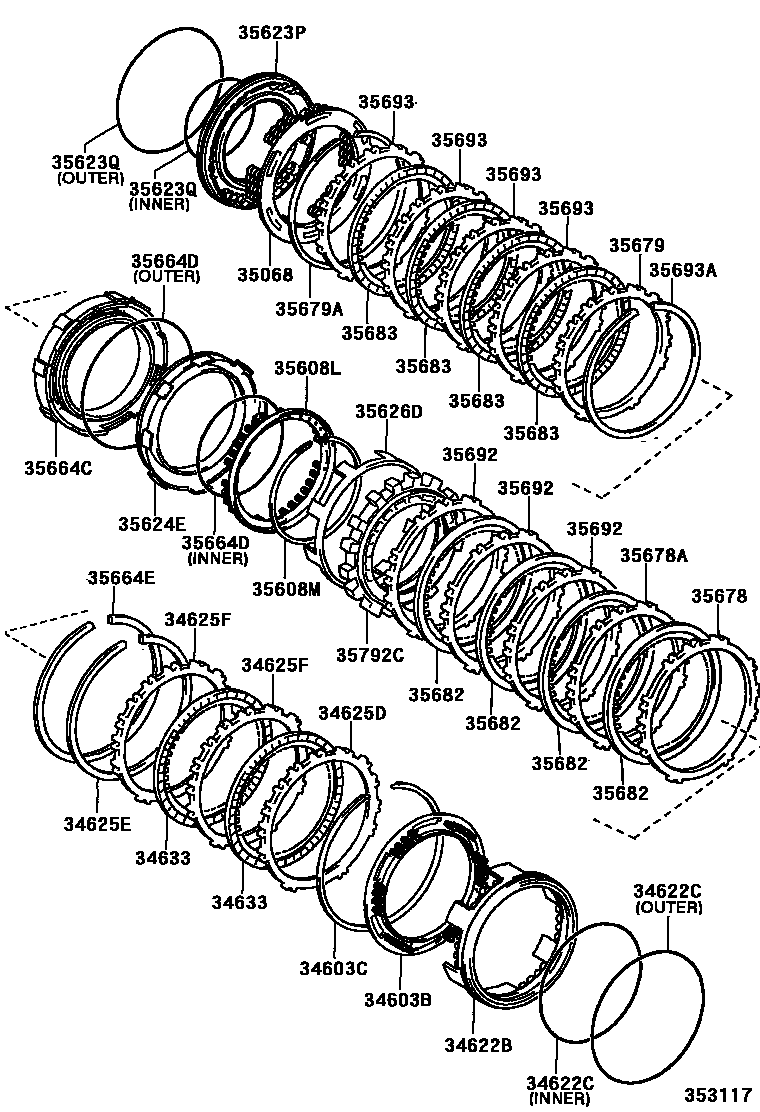

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1U341E,U341F 0002 1U240E 0003 1U340E

34603BSPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-52020iNZE127,ZZE127,129200104

34603CRING, HOLE SNAP(FOR OVERDRIVE BRAKE RETURN SPRING)

main90520-99055iNZE127,ZZE127,129200104

34622BPISTON, 2ND COAST & OVERDRIVE BRAKE

main34622-52021iNZE127,ZZE127,129200104

34622CRING, O(FOR 2ND COAST & OVERDRIVE)

main90301-99121iNZE127,ZZE127,129200104

main90301-99122iNZE127,ZZE127,129200104

34625DFLANGE, 2ND COAST & OVERDRIVE BRAKE

main34625-52071iNZE127,ZZE127,129200104

main34625-52081iNZE127,ZZE127,129200104

main34625-52091iNZE127,ZZE127,129200104

main34625-52110iNZE127,ZZE127,129200104

34625ERING, HOLE SNAP(FOR 2ND COAST & OVERDRIVE BRAKE FLANGE)

main90520-99050iNZE127,ZZE127,129200104

34625FFLANGE, 2ND COAST & OVERDRIVE BRAKE, NO.2

main34625-52060×2iNZE127,ZZE127,129200104

34633DISC, 2ND COAST & OVERDRIVE BRAKE

main34633-52020×2iNZE127,ZZE127,129200104

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-21010iZZE128..ATM200104

main35068-52030iNZE127,ZZE127,129200104

35608LSPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-52020iNZE127,ZZE127,129200104

35608MRING, SNAP(FOR 2ND BRAKE PISTON RETURN SPRING)

main90520-99048iNZE127,ZZE127,129200104

35623PPISTON, 1ST & REVERSE BRAKE, NO.2

main35623-52030iNZE127,ZZE127,129200104

35623QRING, O (FOR 1ST & REVERSE BRAKE PISTON NO.2)

main90301-98002iNZE127,ZZE127,129200104

main90301-99117iNZE127,ZZE127,129200104

35624EPISTON, 2ND BRAKE

main35624-52020iNZE127,ZZE127,129200104

35626DSLEEVE, 2ND BRAKE PISTON

main35626-52010iZZE127,129200104

main35626-52020iNZE127200201

35664CCYLINDER, 2ND BRAKE

main35664-52020iNZE127,ZZE127,129200104

35664DRING, O(FOR 2ND BRAKE CYLINDER)

main90301-99118iNZE127,ZZE127,129200104

main90301-99119iNZE127,ZZE127,129200104

35664ERING, HOLE SNAP(FOR 2ND BRAKE CYLINDER)

main90520-99050iNZE127,ZZE127,129200104

35678FLANGE, BRAKE(FOR 2ND BRAKE)

main35678-52020iNZE127,ZZE127,129200104

main35678-52030iNZE127,ZZE127,129200104

main35678-52040iNZE127,ZZE127,129200104

main35678-52050iNZE127,ZZE127,129200104

35678AFLANGE, BRAKE, NO.1(FOR 2ND BRAKE)

main35678-52020iZZE127,129200104

35679FLANGE, BRAKE(FOR 1ST & REVERSE)

main35679-52020iNZE127,ZZE127,129200104

main35679-52030iNZE127,ZZE127,129200104

main35679-52040iNZE127,ZZE127,129200104

main35679-52050iNZE127,ZZE127,129200104

35679ARING, HOLE SNAP(FOR BRAKE FLANGE)

main90520-99054iNZE127,ZZE127,129200104

35682DISC, BRAKE(FOR 2ND BRAKE)

main35682-52020×4iZZE127,129200104

35683DISC, BRAKE(FOR 1ST & REVERSE)

main35683-52030×4iZZE127,129200104

main35683-52040×4iNZE127200201

35692PLATE, BRAKE(FOR 2ND BRAKE)

main35692-52020×3iZZE127,129200104

35693PLATE, BRAKE (FOR 1ST & REVERSE)

main35693-52030×4iZZE127,129200104

main35693-52040×4iNZE127200201

35693ARING, SNAP(FOR 1ST & REVERSE PLATE)

main90520-99057iNZE127,ZZE127,129200104

35792CCLUTCH, 1 WAY, NO.2

main35792-52021iNZE127,ZZE127,129200104

28 parts on this diagram · 3 diagrams in section
