VENTILATION HOSE

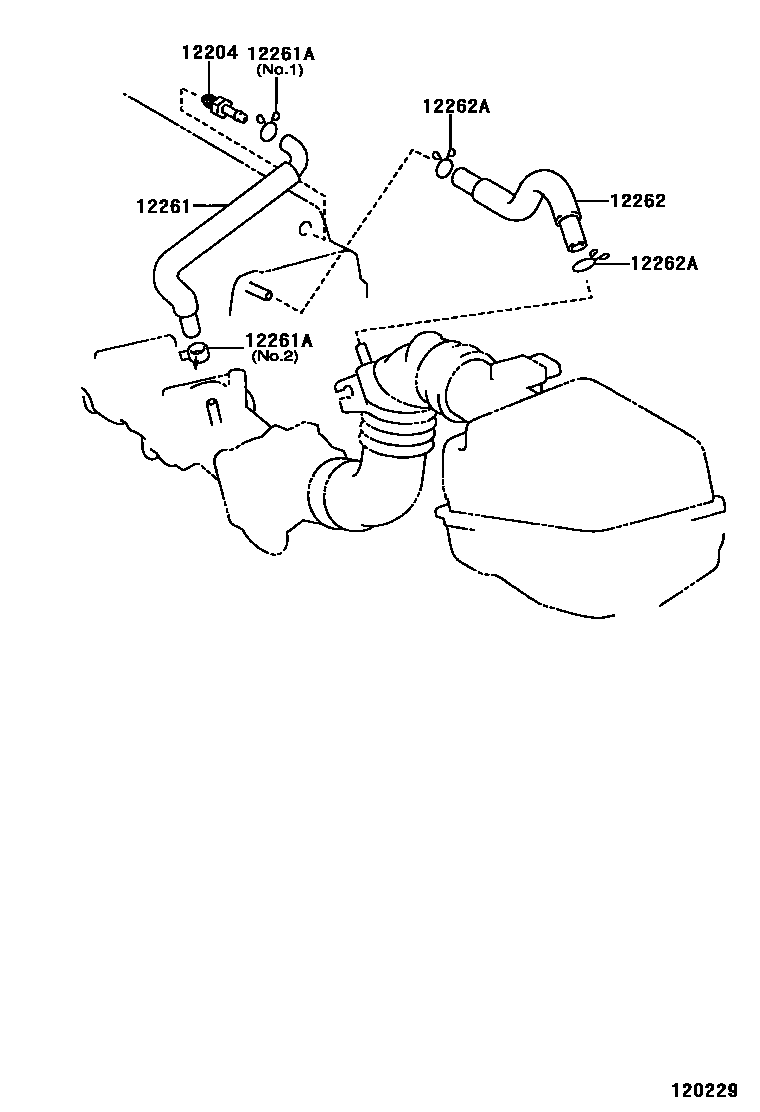

Parts diagram
12204VALVE SUB-ASSY, VENTILATION
main12204-21010i200201-200401
sub12204-21011
main12204-21011i200401-200404
main12204-22050i200104-200404
sub12204-22051
main12204-88600i200104-200403
12261HOSE, VENTILATION
main12261-21050i200201-200404
main12261-22050i200104-200404
main12261-88601i200104-200403
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90466-24001i200104-200403
main90467-13057i200201-200311
main90467-14037i200104-200403
main90467-17011i200201-200204
sub96134-51700
main90467-21152i200104-200404
main96134-51700i200204-200311
12262HOSE, VENTILATION, NO.2
main12262-21060i200201-200404
main12262-22040i200104-200404
main12262-22090i200305-200403
main12262-88602i200104-200305
sub12262-22090
12262ACLIP(FOR VENTILATION HOSE NO.2)
main90467-13103i200104-200404
main90467-19003i200104-200404
main90467-19019i200104-200403
main90467-21004i200201-200404
main90467-21010i200104-200403
main96132-51300i200104-200403

5 parts on this diagram · 3 diagrams in section
