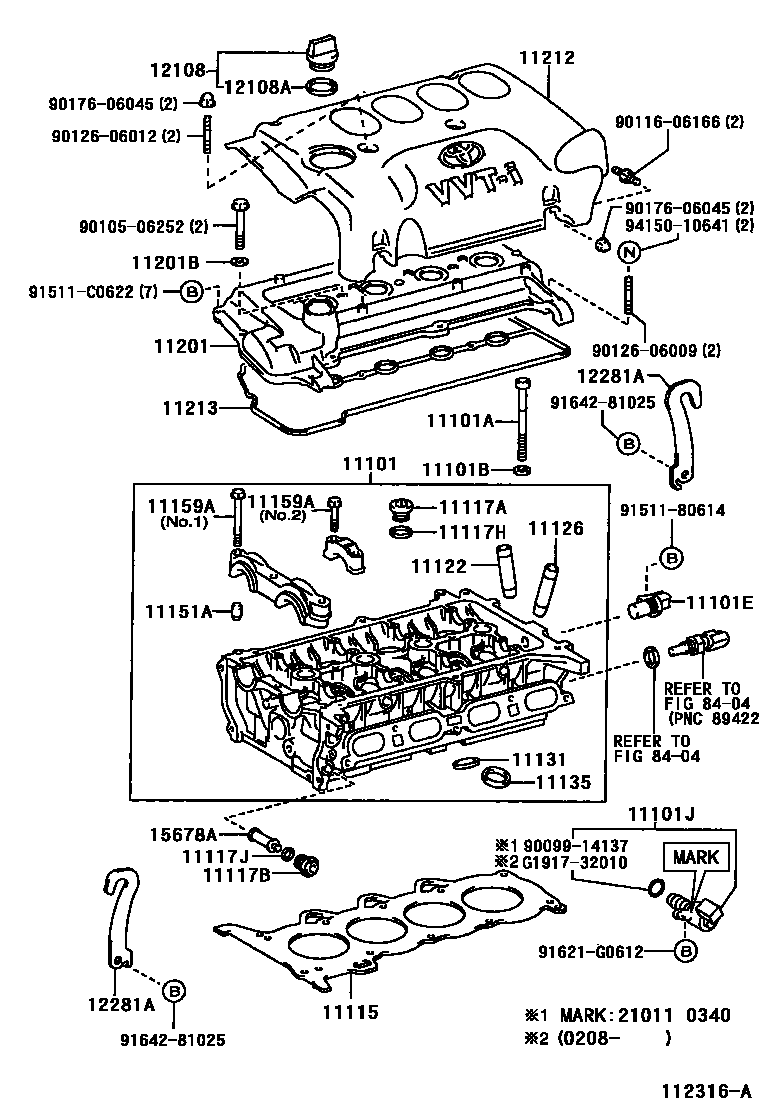

CYLINDER HEAD

0001 1 0002 1 0003 1

11101HEAD SUB-ASSY, CYLINDER

main11101-21031i1NZFE..NZE127200201-200304

sub11101-21033

main11101-21033i1NZFE..NZE127200304-200403

sub11101-21034

main11101-22051i1ZZFE..ZZE127,129200104-200206

sub11101-22052

main11101-22052i1ZZFE..ZZE127,129200206-200404

main11101-29446i2ZZGE..ZZE128200104-200203

sub11101-29465

sub13715-88602

main11101-29465i2ZZGE..ZZE128200203-200303

sub11101-29505

main11101-29475i2ZZGE..ZZE128200303-200404

sub11101-29476

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02126i1NZFE..NZE127200201-200403

sub90910-02170

main90910-02140i2ZZGE..ZZE128200104-200403

main90910-02152i1ZZFE..ZZE127,129200104-200404

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-09024i1NZFE..NZE127200201-200403

main90201-10344i1ZZFE..ZZE127,129200104-200404

11101ESENSOR, CAM POSITION

main90919-05007i2ZZGE..ZZE128200104-200403

main90919-05024i1NZFE..NZE127200201-200403

main90919-05026i1ZZFE..ZZE127,129200104-200403

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-21011i1NZFE..NZE127200201-200403

main15330-22020i2ZZGE..ZZE128200104-200106

sub15330-22060

main15330-22030i1ZZFE..ZZE127,129200104-200404

sub15330-22050

main15330-22040i2ZZGE..ZZE128200106-200404

sub15330-22060

11115GASKET, CYLINDER HEAD

main11115-21030i1NZFE..NZE127200201-200302

sub11115-21040

main11115-21040i1NZFE..NZE127200302-200308

sub11115-21050

main11115-21050i1NZFE..NZE127200308-200403

sub11115-21080

main11115-22040i1ZZFE..ZZE127,129200104-200207

sub11115-22041

main11115-22041i1ZZFE..ZZE127,129200207-200302

sub11115-22050

main11115-22050i1ZZFE..ZZE127,129200302-200404

main11115-22060i2ZZGE..ZZE128200104-200403

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90341-20002i1NZFE..NZE127200201-200403

main90341-27003i2ZZGE..ZZE128200104-200403

11117BPLUG, W/HEAD TAPER SCREW, NO.2

main90341-14013i1NZFE..NZE127200201-200403

main90341-20002i1ZZFE..ZZE127,129200206-200404

11117HGASKET(FOR WATER HOLE)

main90430-20004i1NZFE..NZE127200201-200404

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-14009i1NZFE..NZE127200201-200403

11122BUSH, INTAKE VALVE GUIDE

main11122-20020i1ZZFE..ZZE127,129200110-200404

sub11122-22040

main11122-21010i1NZFE..NZE127200201-200404

main11122-22030i1ZZFE..ZZE127,129200104-200110

main11122-88600i2ZZGE..ZZE128200104-200404

main11123-20020i1ZZFE..ZZE127,129200110-200404

main11123-21010i1NZFE..NZE127200201-200404

main11123-22030i1ZZFE..ZZE127,129200104-200110

sub11123-20020

main11123-88600i2ZZGE..ZZE128200104-200404

11126BUSH, EXHAUST VALVE GUIDE

main11122-20020i1ZZFE..ZZE127,129200110-200404

sub11122-22040

main11122-21010i1NZFE..NZE127200201-200404

main11122-22030i1ZZFE..ZZE127,129200104-200110

main11122-88600i2ZZGE..ZZE128200104-200404

main11123-20020i1ZZFE..ZZE127,129200110-200404

main11123-21010i1NZFE..NZE127200201-200404

main11123-22030i1ZZFE..ZZE127,129200104-200110

sub11123-20020

main11123-88600i2ZZGE..ZZE128200104-200404

11131SEAT, INTAKE VALVE

main11131-21020i1NZFE..NZE127200201-200403

sub11131-21021

main11131-88600i2ZZGE..ZZE128200104-200203

main11131-88601i2ZZGE..ZZE128200203-200403

main11132-21020i1NZFE..NZE127200201-200404

sub11132-21021

main11132-88600i2ZZGE..ZZE128200104-200203

main11132-88601i2ZZGE..ZZE128200203-200404

11135SEAT, EXHAUST VALVE

main11135-21020i1NZFE..NZE127200201-200208

sub11135-21041

main11135-21040i1NZFE..NZE127200208-200403

sub11135-21041

main11135-88600i2ZZGE..ZZE128200104-200203

main11135-88601i2ZZGE..ZZE128200203-200403

main11136-21020i1NZFE..NZE127200201-200208

main11136-21040i1NZFE..NZE127200208-200404

main11136-88600i2ZZGE..ZZE128200104-200203

main11136-88601i2ZZGE..ZZE128200203-200404

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90250-06001i1NZFE..NZE127200201-200403

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90109-06080i1ZZFE..ZZE127,129200201-200404

main90119-07001i2ZZGE..ZZE128200104-200403

main90119-07002i2ZZGE..ZZE128200104-200403

main90119-08A29i1ZZFE..ZZE127,129200201-200404

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-21050i1NZFE..NZE127200201-200403

sub11201-21051

main11201-22060i1ZZFE..ZZE127,129200104-200404

main11201-88600i2ZZGE..ZZE128200104-200403

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-06013i1NZFE..NZE127200104-200404

11212COVER, CYLINDER HEAD, NO.2

main11212-21010i1NZFE..NZE127200201-200404

sub11212-21011

main11212-22070i1ZZFE..ZZE127,129200104-200209

sub11212-22903

main11212-22080i2ZZGE..ZZE128200104-200404

sub11212-22905

main11212-22130i1ZZFE..ZZE127,129200209-200404

11213GASKET, CYLINDER HEAD COVER

main11213-21011i1NZFE..NZE127200201-200403

main11213-22050i1ZZFE..ZZE127,129200104-200404

main11213-88600i2ZZGE..ZZE128200104-200403

12108CAP SUB-ASSY, OIL FILLER

main12180-21010i1NZFE..NZE127200104-200404

main12180-55010i1ZZFE..ZZE127,129200104-200208

12108AGASKET(FOR OIL FILLER CAP)

main90430-37140i2ZZGE..ZZE128200104-200404

12281AHANGER, ENGINE, NO.1

main12281-15040i1ZZFE..ZZE127,129200104-200212

main12281-15050i1ZZFE..ZZE127,129200212-200404

main12281-21010i1NZFE..NZE127200201-200403

main12281-22021i1ZZFE..ZZE127,129200104-200404

main12281-88600i2ZZGE..ZZE128200104-200403

15678AFILTER, OIL CONTROL VALVE

main15678-21010i1NZFE..NZE127200201-200403

main15678-21010i1ZZFE..ZZE127,129200104-200403

main15678-46010i2ZZGE..ZZE128200104-200403

sub15678-32010

sub15678-46020

8404

9009914137

main90099-14137

9010506252

main90105-06252

9011606166

main90116-06166

9012606009

main90126-06009

9012606012

main90126-06012

9017606045

main90176-06045

9151180614

main91511-80614

91511C0622

main91511-C0622

91621G0612

main91621-G0612

9164281025

main91642-81025

9415010641

main94150-10641

G191732010

mainG1917-32010

37 parts on this diagram · 3 diagrams in section
