ENGINE OVERHAUL GASKET KIT

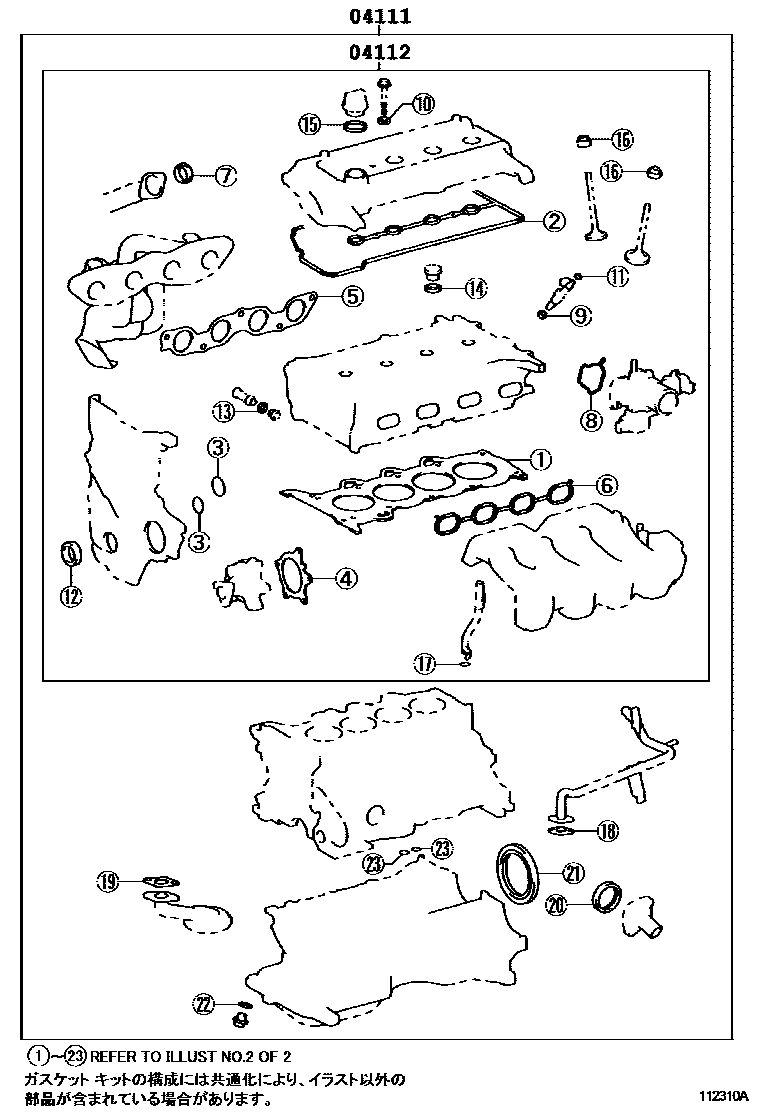

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-21040i200201-200302
sub04111-21041
main04111-21041i200302-200308
sub04111-21042
main04111-21042i200308-200404
sub04111-21043
main04111-22131i200205-200302
sub04111-22132
main04111-22132i200302-200404
sub04111-22512
main04111-22140i200104-200302
sub04111-22141
main04111-22141i200302-200404
main04111-22150i200104-200206
sub04111-22151
main04111-22151i200206-200302
sub04111-22152
main04111-22152i200302-200404
sub04111-22511
main04111-22160i200104-200205
sub04111-22130
04112GASKET KIT, ENGINE VALVE GRIND
main04112-21040i200201-200302
sub04112-21041
main04112-21041i200302-200308
sub04112-21042
main04112-21042i200308-200404
sub04112-21043
main04112-22131i200205-200302
sub04112-22132
main04112-22132i200302-200404
sub04112-22482
main04112-22140i200104-200302
sub04112-22141
main04112-22141i200302-200404
main04112-22150i200104-200206
sub04112-22151
main04112-22151i200206-200302
sub04112-22152
main04112-22152i200302-200404
sub04112-22481
main04112-22160i200104-200205
sub04112-22130

2 parts on this diagram · 6 diagrams in section
