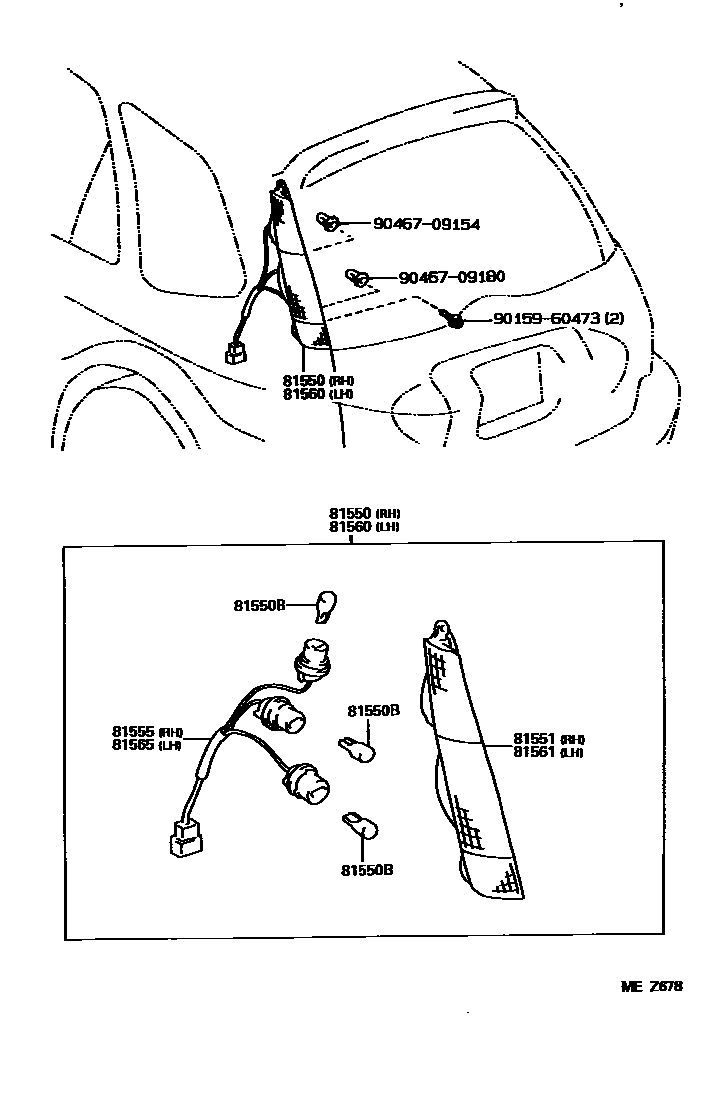

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-13360iAE11#199508-199704

main81550-13380iAE11#199704-199801

main81550-13381iAE11#..BZT,STOUR,VTOUR,ZTOUR199801-200207

main81550-13410iAE111,114..ROSSO199804-200207

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11042×4iAE11#199704-200207

main90981-11043×2iAE11#199508-199704

81551LENS, REAR COMBINATION LAMP, RH

main81551-13360iAE11#199508-199704

main81551-13380iAE11#199704-199801

main81551-13381iAE11#..BZT,STOUR,VTOUR,ZTOUR199801-200207

main81551-13410iAE111,114..ROSSO199804-200207

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-13360iAE11#199508-199704

main81555-13380iAE11#199704-200207

81560LAMP ASSY, REAR COMBINATION, LH

main81560-13360iAE11#199508-199704

main81560-13380iAE11#199704-199801

main81560-13381iAE11#..BZT,STOUR,VTOUR,ZTOUR199801-200207

main81560-13410iAE111,114..ROSSO199804-200207

81561LENS, REAR COMBINATION LAMP, LH

main81561-13360iAE11#199508-199704

main81561-13380iAE11#199704-199801

main81561-13381iAE11#..BZT,STOUR,VTOUR,ZTOUR199801-200207

main81561-13410iAE111,114..ROSSO199804-200207

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-13360iAE11#199508-199704

main81555-13380iAE11#199704-200207

9015960473

main90159-60473

9046709154

main90467-09154

9046709180

main90467-09180

10 parts on this diagram · 2 diagrams in section
