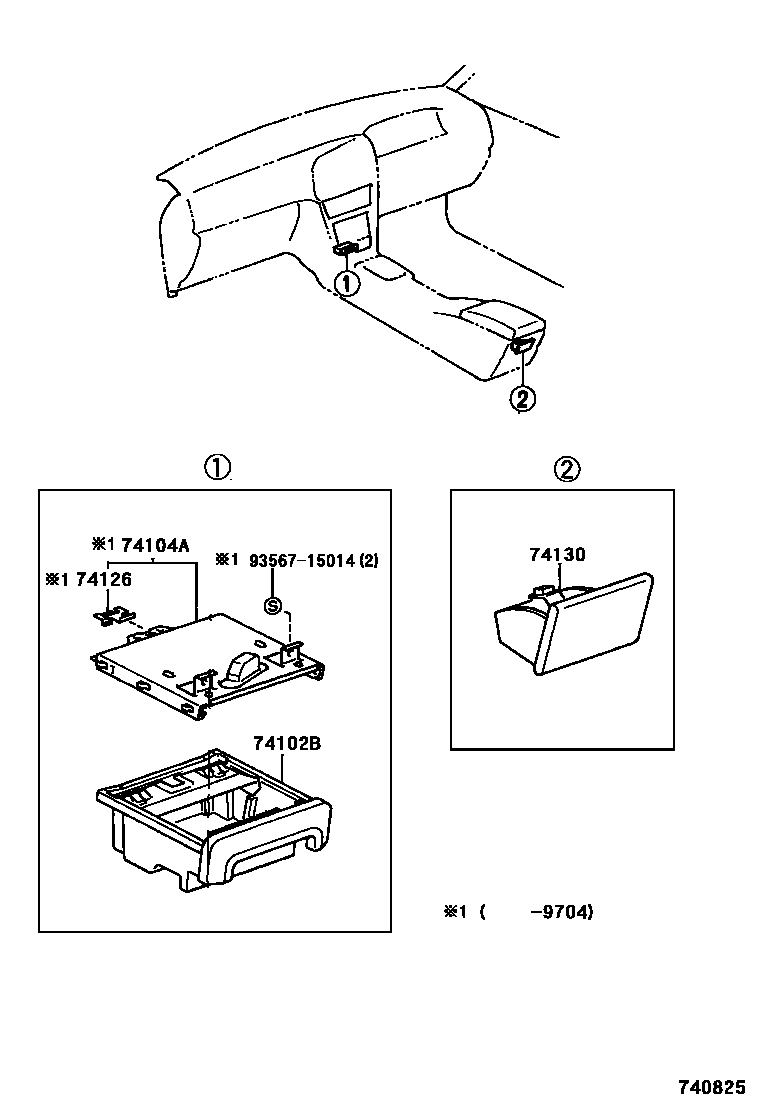

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-12220iAE11#199508-199704

main74102-12260-B0iAE11#..STOUR,VTOUR199704-200207

SHADOW GRAY,TRIM1#

main74102-12270-B2iAE111,114..ROSSO199804-200207

GRAY,TRIM1#

main74102-12280-B1iAE111,115..BZT,ZTOUR199704-200207

SILVER,TRIM1#

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-12230iAE11#199508-199704

74126SUPPORT, FRONT ASH RECEPTACLE RET, NO.3

main74126-32010iAE11#199508-199704

74130RECEPTACLE ASSY, REAR ASH

main74109-12020-B3iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

main74109-12020-P0iAE11#..BZT,STOUR,VTOUR; AE111,115..ZTOUR199605-199704

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM16,17

9356715014

main93567-15014

5 parts on this diagram · 1 diagram in section
