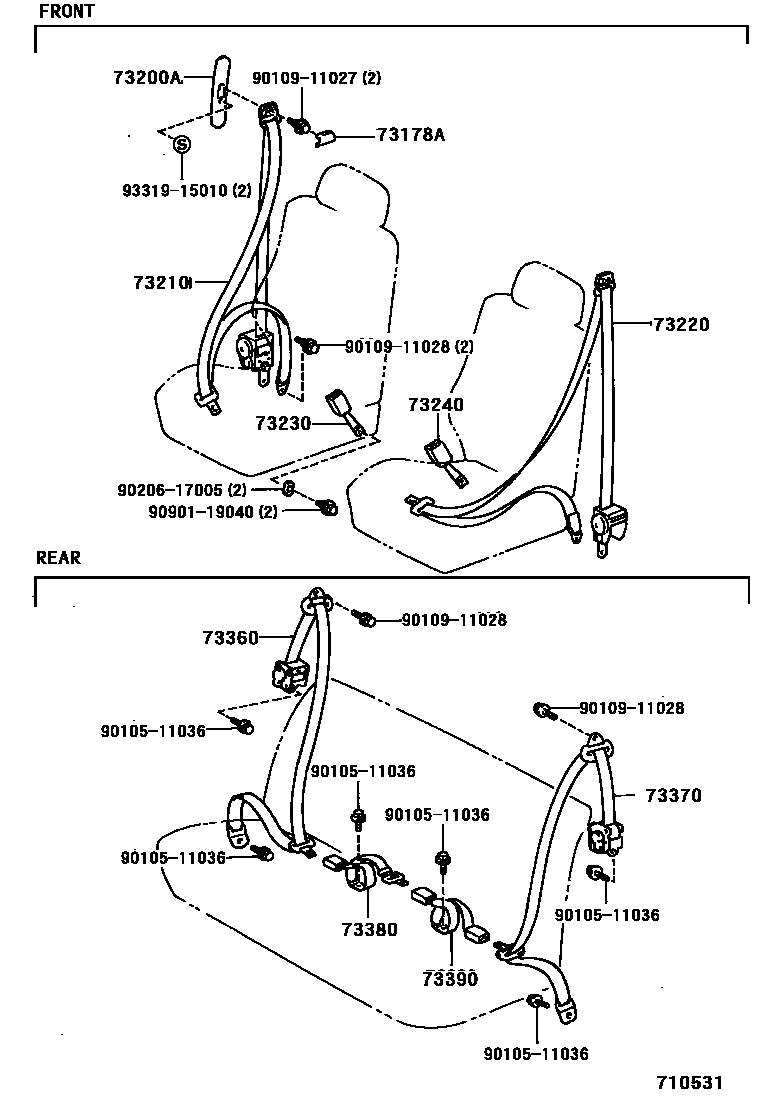

SEAT BELT & CHILD RESTRAINT SEAT

0001 1 0002 1

73178ACAP, SEAT BELT ANCHOR COVER

main73178-12040-B0×2iAE11#..BZT,STOUR,VTOUR; AE111,115..ZTOUR199605-199704

LT.GRAY,TRIM1#; LT.GRAY,TRIM16,17

main73178-12040-B4×2iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12040-B1×2iAE11#199508-199605

LT.GRAY,TRIM1#

main73200-12050-B1×2iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

main73200-12050-B2×2iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

LT.GRAY,TRIM1#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-1A060-B2iAE11#199508-199605

SHADOW GRAY,TRIM1#

main73210-1A061-B2iAE11#..BZT,STOUR,VTOUR; AE111,115..ZTOUR199605-199704

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM16,17

main73210-1A150-B3iAE11#199704-199804

SHADOW GRAY,TRIM1#

main73210-1A151-B2iAE111,114..ROSSO199804-200207

SHADOW GRAY,TRIM1#

main73210-1A151-B3iAE11#..BZT,STOUR,ZTOUR199804-200207

SHADOW GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-12840-B2iAE11#199508-199605

SHADOW GRAY,TRIM1#

main73220-12841-B2iAE11#..STOUR,VTOUR199605-199704

SHADOW GRAY,TRIM1#

main73220-1A030-B0iAE11#..STOUR,VTOUR; AE111,115..ZTOUR; AE111..BZT199605-199704

main73220-1A050-B3iAE11#199704-199804

SHADOW GRAY,TRIM1#

main73220-1A161-B1iAE111,114..ROSSO199804-200207

SHADOW GRAY,TRIM1#

main73220-1A161-B2iAE11#..BZT,STOUR,ZTOUR199804-200207

SHADOW GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-12580-B0iAE11#199508-199605

SHADOW GRAY,TRIM1#

main73230-12580-B2iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-12580-B0iAE11#199508-199605

SHADOW GRAY,TRIM1#

main73230-12580-B2iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-13170-B1iAE11#199508-199605

SHADOW GRAY,TRIM1#

main73360-13300-B0iAE11#199704-199804

SHADOW GRAY,TRIM1#

main73360-13301-B0iAE11#..BZT,STOUR,ZTOUR199804-200207

SHADOW GRAY,TRIM1#

main73360-13301-B1iAE111,114..ROSSO199804-200207

SHADOW GRAY,TRIM1#

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73370-13110-B1iAE11#..BZT,STOUR,VTOUR; AE111,115..ZTOUR199605-199704

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM16,17

main73370-13240-B0iAE11#199704-199804

SHADOW GRAY,TRIM1#

main73370-13241-B0iAE11#..BZT,STOUR,ZTOUR199804-200207

SHADOW GRAY,TRIM1#

main73370-13241-B1iAE111,114..ROSSO199804-200207

SHADOW GRAY,TRIM1#

73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH

main73470-12130-B0iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

SHADOW GRAY,TRIM1#

main73470-12130-B1iAE111,114..ROSSO199804-200207

SHADOW GRAY,TRIM1#

main73470-13010-B0iAE11#..BZT,STOUR,VTOUR; AE111,115..ZTOUR199605-199704

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM16,17

73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH

main73480-12140-B0iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

SHADOW GRAY,TRIM1#

main73480-12140-B1iAE111,114..ROSSO199804-200207

SHADOW GRAY,TRIM1#

main73480-13010-B0iAE11#..BZT,STOUR,VTOUR; AE111,115..ZTOUR199605-199704

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM16,17

9010511036

main90105-11036

9010911027

main90109-11027

9010911028

main90109-11028

9020617005

main90206-17005

9090119040

main90901-19040

9331915010

main93319-15010

16 parts on this diagram · 2 diagrams in section
