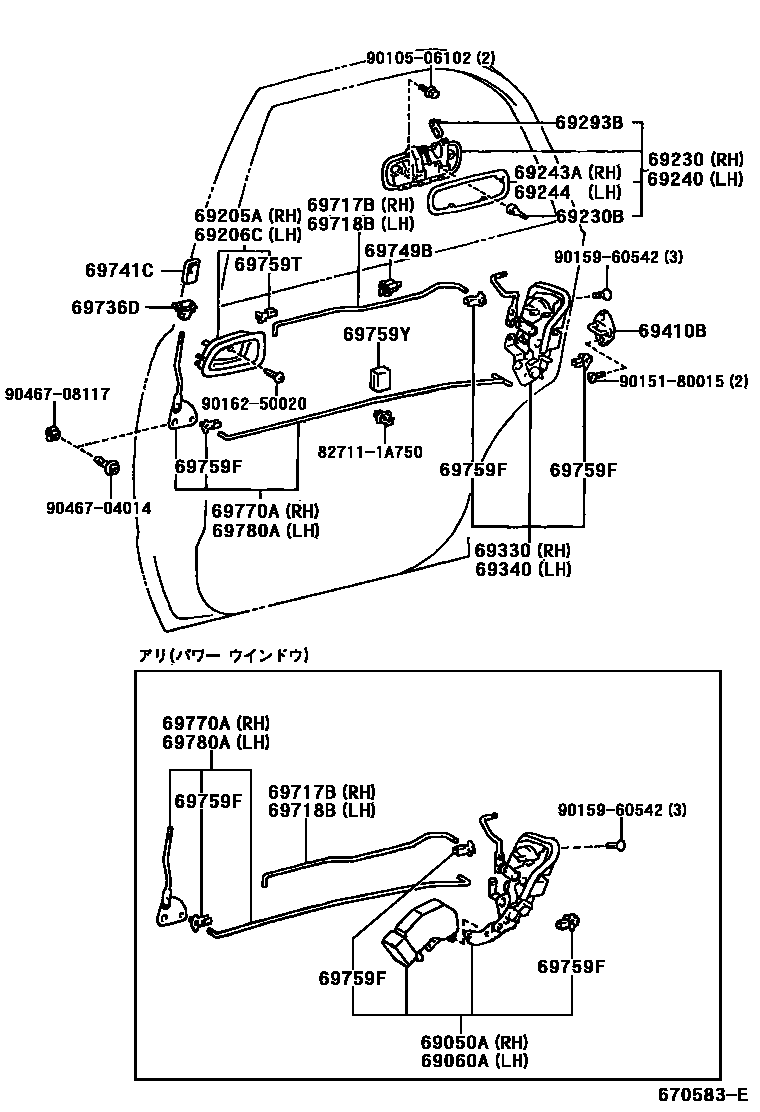

REAR DOOR LOCK & HANDLE

0001 1 0002 1

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69305-12140iAE11#199508-199704

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69306-12140iAE11#199508-199704

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69207-12030-B0iAE11#..BZT,STOUR,VTOUR199508-200207

SHADOW GRAY,TRIM1#

sub69207-12030

main69207-12030-B0iAE111,115..ZTOUR199605-199704

SHADOW GRAY,TRIM16,17

sub69207-12030

main69207-12030-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

sub69207-12030

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69208-12030-B0iAE11#..BZT,STOUR,VTOUR199508-200207

SHADOW GRAY,TRIM1#

sub69208-12030

main69208-12030-B0iAE111,115..ZTOUR199605-199704

SHADOW GRAY,TRIM16,17

sub69208-12030

main69208-12030-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

sub69208-12030

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-12170iAE11#199508-199704

sub69230-12220

main69230-12180-A0iAE111,115..ZTOUR199605-199704

SUPER WHITE 2,040

sub69230-12230

main69230-12180-B2iAE111,115..BZT,ZTOUR199605-199704

SILVER ME,199

sub69230-12230

main69230-12180-C0iAE111..BZT199605-199704

BLACK METALLIC,2AN ,205

sub69230-12230

main69230-12180-C0iAE111..BZT199605-199704

BLACK METALLIC,2AN

sub69230-12230

main69230-12180-D0iAE111,115..ZTOUR199605-199704

RED MM,2AF

sub69230-12230

main69230-12180-G0iAE111,115..ZTOUR199608-199704

sub69230-12230

main69230-12180-G0iAE111,115..ZTOUR199605-199704

DK GREEN MICA,6M1

sub69230-12230

main69230-12180-G2iAE111,115..ZTOUR199605-199704

BLUISH GREEN M,2AM

sub69230-12230

main69230-12180-J1iAE111,115..BZT,ZTOUR199605-199704

DARK BLUE ME.,2AL

sub69230-12230

main69230-12220iAE11#..ROSSO,STOUR,VTOUR199704-200207

main69230-12230-A0iAE115;AE111,114..BZT,STOUR199905-200004

sub69230-12230

main69230-12230-A0iAE111,115..BZT,ZTOUR199704-200207

SUPER WHITE 2,040

sub69230-12230

main69230-12230-A0iAE111,114..STOUR199801-199904

sub69230-12230

main69230-12230-A0iAE111,114..STOUR199904-200207

sub69230-12230

main69230-12230-B2iAE111,115..ZTOUR199704-199804

GRAY ME.,2DH

sub69230-12230

main69230-12230-B3iAE111,114..STOUR199801-199904

sub69230-12230

main69230-12230-B3iAE115;AE111,114..BZT,STOUR199905-200004

sub69230-12230

main69230-12230-B3iAE111,115..BZT,ZTOUR199704-200207

SILVER ME,199

sub69230-12230

main69230-12230-B3iAE111,114..STOUR199904-200207

sub69230-12230

main69230-12230-C0iAE111,115..ZTOUR199904-200207

BLACK ME,2AN ,205

sub69230-12230

main69230-12230-C0iAE111,115..ZTOUR199704-199904

BLACK ME,2AN

sub69230-12230

main69230-12230-C0iAE111,114..STOUR199801-199904

sub69230-12230

main69230-12230-C0iAE111,114..STOUR199904-200207

sub69230-12230

main69230-12230-C0iAE115;AE111,114..BZT,STOUR199905-200004

sub69230-12230

main69230-12230-C0iAE111..BZT199704-200207

BLACK ME,205

sub69230-12230

main69230-12230-D0iAE111,115..BZT,ZTOUR199704-199804

RED MM,3K4

sub69230-12230

main69230-12230-D4iAE111,114..STOUR199904-200207

sub69230-12230

main69230-12230-G0iAE111,115..ZTOUR199704-199904

DK.GREEN M.M.,2DE

sub69230-12230

main69230-12230-G6iAE111,115..BZT,ZTOUR199804-199904

LT.GREEN ME.OP.,6P7

sub69230-12230

main69230-12230-J0iAE111,115..ZTOUR199704-200207

DK.BLUE MC.,2DF

sub69230-12230

main69230-12230-J2iAE111,115..ZTOUR199804-199904

BLUE M.M.,8L5

sub69230-12230

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04018iAE11#199508-200207

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-12170iAE11#199508-199704

sub69240-12220

main69240-12180-A0iAE111,115..ZTOUR199605-199704

SUPER WHITE 2,040

sub69240-12230

main69240-12180-B2iAE111,115..BZT,ZTOUR199605-199704

SILVER ME,199

sub69240-12230

main69240-12180-C0iAE111..BZT199605-199704

BLACK METALLIC,2AN ,205

sub69240-12230

main69240-12180-C0iAE111..BZT199605-199704

BLACK METALLIC,2AN

sub69240-12230

main69240-12180-D0iAE111,115..ZTOUR199605-199704

RED MM,2AF

sub69240-12230

main69240-12180-G0iAE111,115..ZTOUR199605-199704

DK GREEN MICA,6M1

sub69240-12230

main69240-12180-G0iAE111,115..ZTOUR199608-199704

sub69240-12230

main69240-12180-G2iAE111,115..ZTOUR199605-199704

BLUISH GREEN M,2AM

sub69240-12230

main69240-12180-J1iAE111,115..(BZT,ZTOUR)..(4FC,5F)199605-199705

DARK BLUE ME.,2AL

sub69240-12230

main69240-12220iAE11#..ROSSO,STOUR,VTOUR199704-200207

main69240-12230-A0iAE115;AE111,114..BZT,STOUR199905-200004

main69240-12230-A0iAE111,114..STOUR199904-200207

main69240-12230-A0iAE111,114..STOUR199801-199904

main69240-12230-A0iAE111,115..BZT,ZTOUR199704-200207

SUPER WHITE 2,040

main69240-12230-B2iAE111,115..ZTOUR199704-199804

GRAY ME.,2DH

main69240-12230-B3iAE111,114..STOUR199801-199904

main69240-12230-B3iAE111,114..STOUR199904-200207

main69240-12230-B3iAE111,115..BZT,ZTOUR199704-200207

SILVER ME,199

main69240-12230-B3iAE115;AE111,114..BZT,STOUR199905-200004

main69240-12230-C0iAE111,115..ZTOUR199704-199904

BLACK ME,2AN

main69240-12230-C0iAE111,114..STOUR199801-199904

main69240-12230-C0iAE115;AE111,114..BZT,STOUR199905-200004

main69240-12230-C0iAE111..BZT199704-200207

BLACK ME,205

main69240-12230-C0iAE111,115..ZTOUR199904-200207

BLACK ME,2AN ,205

main69240-12230-C0iAE111,115..ZTOUR199904-200207

main69240-12230-D0iAE111,115..BZT,ZTOUR199704-199804

RED MM,3K4

main69240-12230-D4iAE111,114..STOUR199904-200207

main69240-12230-G0iAE111,115..ZTOUR199704-199904

DK.GREEN M.M.,2DE

main69240-12230-G6iAE111,115..BZT,ZTOUR199804-199904

LT.GREEN ME.OP.,6P7

main69240-12230-J0iAE111,115..ZTOUR199704-200207

DK.BLUE MC.,2DF

main69240-12230-J2iAE111,115..ZTOUR199804-199904

BLUE M.M.,8L5

69243APAD, REAR DOOR OUTSIDE HANDLE, RH

main69243-12020iAE11#199508-200207

69244PAD, REAR DOOR OUTSIDE HANDLE, LH

main69244-12020iAE11#199508-200207

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12030iAE11#199508-200207

main69293-12040iAE11#199508-200207

69330LOCK ASSY, REAR DOOR, RH

main69305-12120iAE111,114..STOUR199508-199704

main69305-12140iAE111,115..(BZT,VTOUR,ZTOUR)..(4FC,5F)199704-199705

main69305-12190iAE111,114..STOUR199704-200207

main69305-12200iAE111,114..ROSSO199804-200207

main69305-12200iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

69340LOCK ASSY, REAR DOOR, LH

main69306-12120iAE111,114..STOUR199508-199704

main69306-12170iAE111,114..STOUR199704-200207

main69306-12180iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

main69306-12180iAE111,114..ROSSO199804-200207

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-87001iAE11#199508-200207

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-12090iAE11#199508-200207

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-12100iAE11#199508-200207

69736DGUIDE, REAR DOOR LOCKING LINK

main69736-12130iAE11#199704-200207

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-12040-B0iAE11#199508-200207

SHADOW GRAY,TRIM1#

sub69741-12040

main69741-12040-B0iAE111,115..ZTOUR199605-199704

SHADOW GRAY,TRIM16,17

sub69741-12040

main69741-12040-B3iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

sub69741-12040

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12070iAE11#199508-200207

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-20020iAE11#199508-200207

main69759-20030iAE11#199508-200207

main69759-20040iAE11#199508-200207

main69759-20050iAE11#199508-200207

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-22040iAE11#199508-200207

main69759-22050iAE11#199508-200207

69759YSILENCER, REAR DOOR LOCK LINK

main69759-20390iAE11#199508-200207

69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-12100iAE11#199508-199704

main69770-12110iAE11#199704-200207

69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH

main69780-12100iAE11#199508-199704

main69780-12110iAE11#199704-200207

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

9010506102

main90105-06102

9015180015

main90151-80015

9015960542

main90159-60542

9016250020

main90162-50020

9046704014

main90467-04014

9046708117

main90467-08117

30 parts on this diagram · 2 diagrams in section
