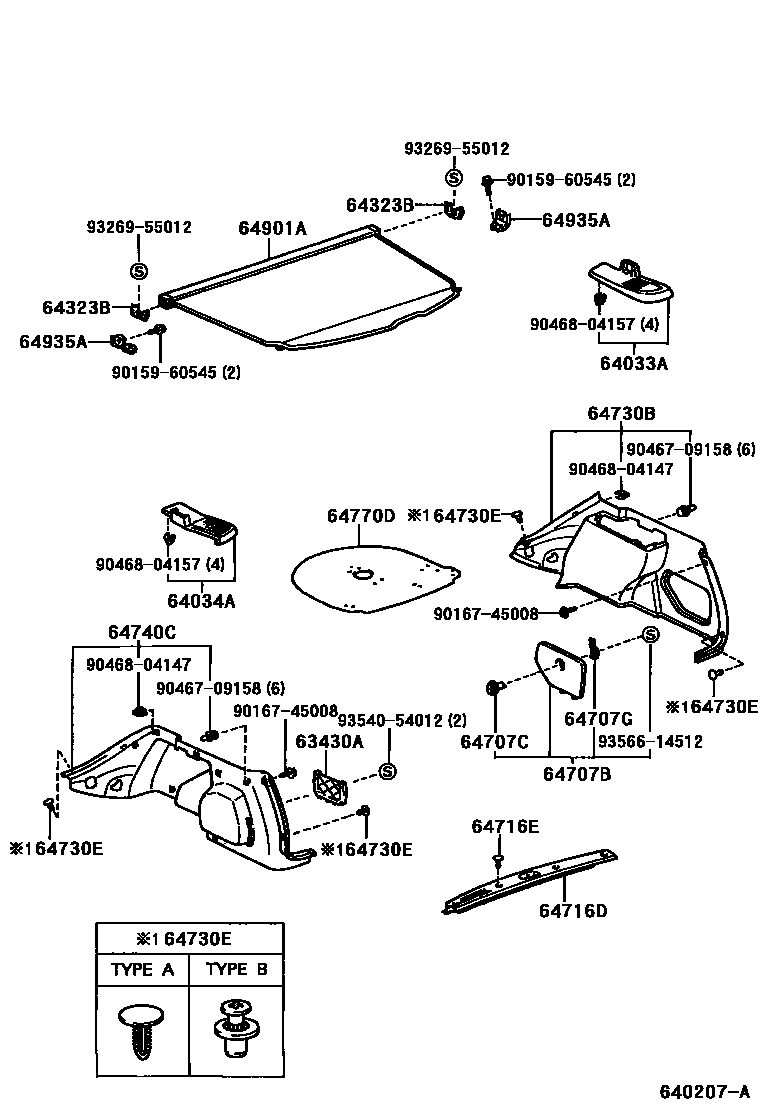

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

63430ARACK ASSY, ROOM

main63430-13010-B1iAE11#..BZT,STOUR,VTOUR; AE111,115..ZTOUR199605-199704

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM16,17

main63430-13010-B3iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

64033AGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-13020-B0iAE111,114..STOUR199508-199704

SHADOW GRAY,TRIM1#

main64033-13020-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

main64383-13020-B0iAE11#..BZT,STOUR,VTOUR; AE111,115..ZTOUR199605-199704

main64383-13020-B1iAE111,114..ROSSO199804-200207

64034AGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-13020-B0iAE111,114..STOUR199508-199704

SHADOW GRAY,TRIM1#

main64034-13020-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

main64384-13010-B0iAE111,115..BZT,VTOUR; AE111,115..ZTOUR199605-199704

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM16,17

main64384-13010-B1iAE111,114..ROSSO199804-200207

64323BCLAMP, TONNEAU COVER

main64323-13040-B0×2iAE11#199508-199605

SHADOW GRAY,TRIM1#

main64323-13040-B1×2iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

64707BCOVER SUB-ASSY, QUARTER TRIM JACK

main64707-13080-B1iAE11#199508-199605

SHADOW GRAY,TRIM1#

main64707-13100-B0iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

SHADOW GRAY,TRIM1#

main64707-13100-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

64707CKNOB, JACK COVER

main64982-13010-B0iAE11#199508-199605

SHADOW GRAY,TRIM1#

main64982-13010-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

64707GSTOPPER, JACK COVER

main64981-13010iAE11#199508-199704

64716DCOVER, DECK TRIM, REAR

main64716-13080-B0iAE11#199508-199605

SHADOW GRAY,TRIM1#

main64716-13110-B0iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

SHADOW GRAY,TRIM1#

main64716-13110-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-07152-B0×4iAE11#199508-199605

SHADOW GRAY,TRIM1#

main90467-07152-B3×4iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-13060-B0iAE11#..BZT,STOUR,VTOUR; AE111,115..ZTOUR199605-199704

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM16,17

main64730-13061-B0iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

SHADOW GRAY,TRIM1#

main64730-13061-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90467-06070-B3×2iAE111,114..ROSSO199804-200207

main90467-06070-P0×2iAE111,115..ZTOUR; AE111..BZT..4FC;AE11#..STOUR,VTOUR; AE111..BZT..5F199605-199704

main90467-07152-B0×2iAE11#..BZT,STOUR,VTOUR; AE111,115..ZTOUR199605-199704

main90467-07152-B3×2iAE111,114..ROSSO199804-200207

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-13060-B0iAE11#199508-199605

SHADOW GRAY,TRIM1#

main64740-13061-B0iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

SHADOW GRAY,TRIM1#

main64740-13061-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

64770DCOVER ASSY, SPARE WHEEL

main64770-13010iAE11#..4FC,5F199704-199705

main64770-13020iAE11#199508-199704

64901ARETRACTOR SUB-ASSY, TONNEAU COVER

main64901-13030-B0iAE11#..BZT,STOUR,VTOUR; AE111,115..ZTOUR199605-199704

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM16,17

main64901-13030-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

64935AHOLDER, TONNEAU COVER

main64935-13050×2iAE11#199704-200207

9015960545

main90159-60545

9016745008

main90167-45008

9046709158

main90467-09158

9046804147

main90468-04147

9046804157

main90468-04157

9326955012

main93269-55012

9354054012

main93540-54012

9356614512

main93566-14512

23 parts on this diagram · 2 diagrams in section
