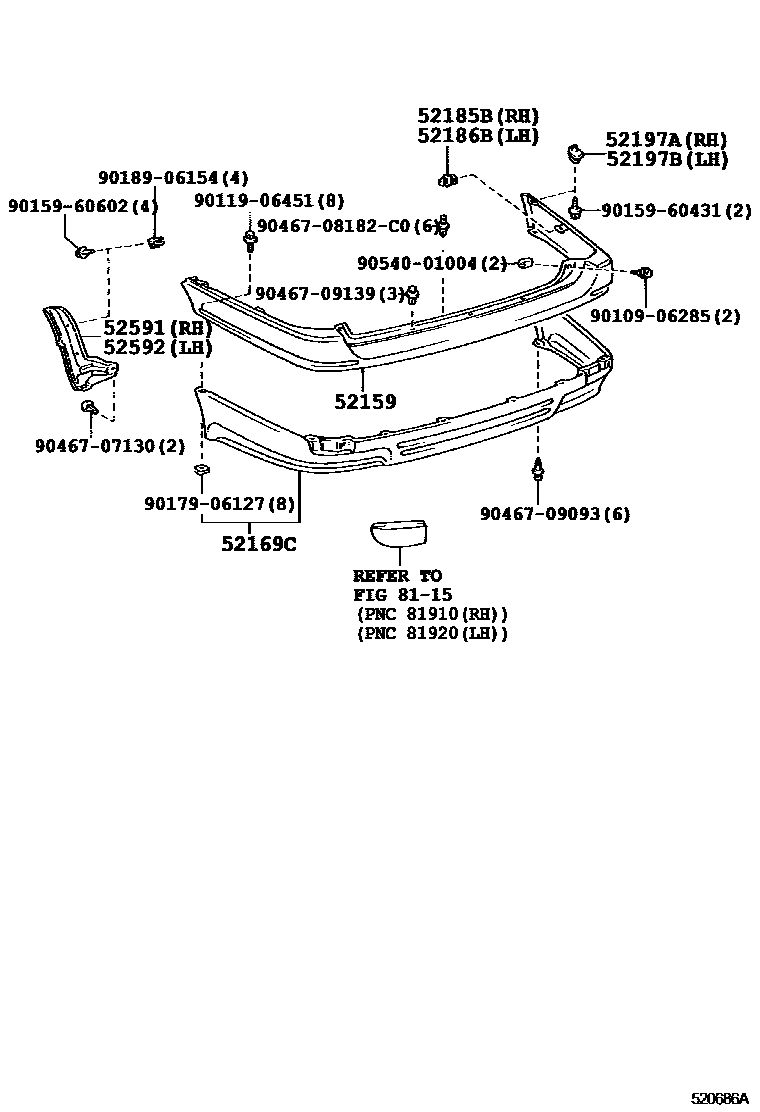

REAR BUMPER & BUMPER STAY

52159COVER, REAR BUMPER

main52159-13060iAE11#199508-199704

main52159-13110iAE11#199704-200207

main52159-13130-A0iAE111,114..STOUR199801-199904

main52159-13130-B0iAE111,114..STOUR199801-199904

main52159-13130-C0iAE111,114..STOUR; AE111,115..BZT,ZTOUR199904-200207

main52159-13130-D0iAE111,115..BZT,ZTOUR199704-199804

RED MM,3K4

main52159-13130-D3iAE111,114..STOUR199904-200207

main52159-13130-G1iAE111,115..BZT,ZTOUR199804-199904

LT.GREEN ME.OP.,6P7

main52159-13130-J0iAE111,115..ZTOUR199804-199904

BLUE M.M.,8L5

52169CCOVER, REAR BUMPER, LOWER

main52169-13010-A0iAE11#..STOUR,VTOUR,ZTOUR199508-199704

SUPER WHITE 2,040

main52169-13010-B0iAE11#..STOUR,VTOUR,ZTOUR; AE111..BZT199605-199704

LT.GRAY PEARL ME.,2AF ,2AL ,2AM; LT.GRAY PEARL ME.,2AL

main52169-13010-B1iAE11#199508-199704

BL.SILVER ME,2AN

main52169-13010-B2iAE11#199605-199704

SILVER METALLIC,199

main52169-13010-C0iAE111..BZT199605-199704

BLACK METALLIC,205

main52169-13010-G0iAE115..ZTOUR199512-199604

main52169-13030iAE11#199704-200207

main52169-13040-A0iAE111,114..STOUR199801-199904

main52169-13040-B0iAE11#..STOUR,VTOUR,ZTOUR; AE111..BZT199704-199804

SILVER ME,199; SILVER ME,199 ,2DH

main52169-13040-B1iAE11#..STOUR,VTOUR,ZTOUR199704-199904

BL.SILVER ME,2AN ,2DE ,2DF

main52169-13040-C0iAE11#..BZT,ROSSO,ZTOUR; AE111,114..STOUR199904-200207

main52169-13040-D0iAE11#199704-199804

RED MM,3K4

main52169-13040-D2iAE111,114..ROSSO199804-199904

RED,3M7

main52169-13040-D3iAE111,114..ROSSO; AE111,114..STOUR199904-200207

main52169-13040-G1iAE11#..BZT,STOUR,ZTOUR199804-199904

LT.GREEN ME.OP.,6P7

main52169-13040-J0iAE11#..ROSSO,STOUR,ZTOUR199804-199904

BLUE M.M.,8L5

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-12230iAE11#199508-199704

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52185-12230iAE11#199704-200207

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-16020iAE11#199704-200207

52197BBRACKET, REAR BUMPER SEAL, LH

main52197-16020iAE11#199704-200207

52591SEAL, REAR BUMPER SIDE, RH

main52591-12110iAE11#199704-200207

main52591-13010iAE11#199508-199704

52592SEAL, REAR BUMPER SIDE, LH

main52592-12030iAE11#199704-200207

main52592-13010iAE11#199508-199704

8115REFLEX REFLECTOR

→ Go to FIG 81-15

9010906285

main90109-06285

9011906451

main90119-06451

9015960431

main90159-60431

9015960602

main90159-60602

9017906127

main90179-06127

9018906154

main90189-06154

9046707130

main90467-07130

9046708182C0

main90467-08182C0

9046709093

main90467-09093

9046709139

main90467-09139

9054001004

main90540-01004

20 parts on this diagram · 1 diagram in section
