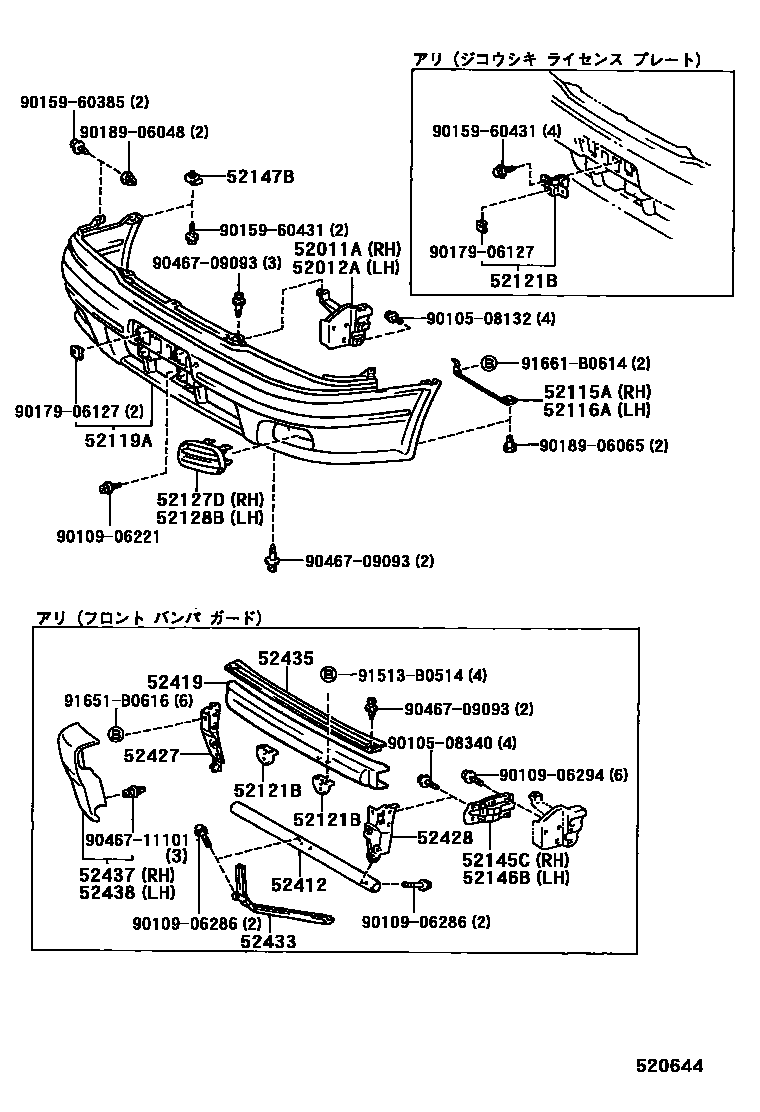

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-13020iAE11#199508-199704

main52141-12430iAE111,114..ROSSO199804-200207

main52141-13030iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-13020iAE11#199508-199704

main52142-12360iAE111,114..ROSSO199804-200207

main52142-13030iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-12320iAE11#199508-199704

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-12290iAE11#199508-199704

52119ACOVER, FRONT BUMPER

main52119-13040-A0iAE11#..STOUR,VTOUR,ZTOUR199508-199704

SUPER WHITE 2,040

main52119-13040-B0iAE11#..STOUR,VTOUR,ZTOUR; AE111..BZT199605-199704

LT.GRAY PEARL ME.,2AF ,2AL ,2AM; LT.GRAY PEARL ME.,2AL

main52119-13040-B1iAE111,115..ZTOUR199608-199704

main52119-13040-B2iAE11#199605-199704

SILVER METALLIC,199

main52119-13040-C0iAE111..BZT199605-199704

BLACK METALLIC,205

main52119-13040-G0iAE115..ZTOUR199512-199604

main52119-13050-A0iAE11#..STOUR,VTOUR,ZTOUR199508-199704

main52119-13050-B0iAE11#..STOUR,VTOUR,ZTOUR; AE111..BZT199605-199704

main52119-13050-B1iAE111,115..ZTOUR199704-200207

main52119-13050-B2iAE11#199605-199704

main52119-13050-C0iAE111..BZT199605-199704

main52119-13050-G0iAE11#..STOUR,VTOUR,ZTOUR199605-199704

main52119-13110-A0iAE11#..STOUR,VTOUR,ZTOUR199704-200207

main52119-13110-B0iAE11#..STOUR,VTOUR,ZTOUR199704-199804

main52119-13110-B1iAE11#..STOUR,VTOUR,ZTOUR199704-199904

main52119-13110-C0iAE111,115..ZTOUR199904-200207

main52119-13110-D0iAE11#..STOUR,VTOUR,ZTOUR199704-199804

main52119-13110-G0iAE11#..STOUR,ZTOUR199804-199904

main52119-13110-J0iAE11#..STOUR,ZTOUR199804-199904

main52119-13120-A0iAE11#..STOUR,VTOUR,ZTOUR199704-200207

main52119-13120-B0iAE11#..STOUR,ZTOUR199804-200207

main52119-13120-B1iAE11#..STOUR,VTOUR,ZTOUR199704-199904

main52119-13120-C0iAE111,115..ZTOUR199904-200207

main52119-13120-D0iAE11#..STOUR,VTOUR,ZTOUR199704-199804

main52119-13120-G0iAE11#..STOUR,ZTOUR199804-199904

main52119-13120-J0iAE11#..STOUR,ZTOUR199804-199904

main52119-13130-A0iAE11#..STOUR,VTOUR,ZTOUR199704-200207

main52119-13130-B0iAE11#..STOUR,ZTOUR199804-200207

main52119-13130-B1iAE11#..STOUR,VTOUR,ZTOUR199704-199904

main52119-13130-C0iAE111,115..ZTOUR199904-200207

main52119-13130-D0iAE11#..STOUR,VTOUR,ZTOUR199704-199804

main52119-13130-G0iAE11#..STOUR,ZTOUR199804-199904

main52119-13130-J0iAE11#..STOUR,ZTOUR199804-199904

main52119-13140-A0iAE11#..STOUR,VTOUR,ZTOUR199704-200207

main52119-13140-B0iAE11#..STOUR,ZTOUR199804-200207

main52119-13140-B1iAE11#..STOUR,VTOUR,ZTOUR199704-199904

main52119-13140-C0iAE111,115..ZTOUR199904-200207

main52119-13140-D0iAE11#..STOUR,VTOUR,ZTOUR199704-199804

main52119-13140-G0iAE11#..STOUR,ZTOUR199804-199904

main52119-13140-J0iAE11#..STOUR,ZTOUR199804-199904

main52119-13190-A0iAE111,114..STOUR199904-200207

main52119-13190-B0iAE111..BZT199704-200207

main52119-13190-C0iAE111,114..STOUR; AE111,115..ZTOUR199904-200207

main52119-13190-D0iAE111,115..BZT,ZTOUR199704-199804

main52119-13190-D1iAE111,114..STOUR199904-200207

main52119-13190-G0iAE111,115..BZT,ZTOUR199804-199904

main52119-13190-J0iAE111,115..ZTOUR199804-199904

main52119-13200-A0iAE111,114..STOUR199801-199904

main52119-13200-B0iAE111..BZT199704-200207

main52119-13200-C0iAE111,114..STOUR199801-199904

main52119-13200-D0iAE111,115..BZT,ZTOUR199704-199804

main52119-13200-D1iAE111,114..STOUR199904-200207

main52119-13200-G0iAE111,115..BZT,ZTOUR199804-199904

main52119-13200-J0iAE111,115..ZTOUR199804-199904

main52119-13210-A0iAE111,115..ZTOUR199704-200207

SUPER WHITE 2,040

main52119-13210-B1iAE111,115..ZTOUR199704-199804

SILVER ME,199 ,2DH

main52119-13210-C0iAE111,115..ZTOUR199904-200207

BLACK ME,205

main52119-13210-D0iAE111,115..ZTOUR199704-199804

RED MM,3K4

main52119-13210-G0iAE111,115..ZTOUR199804-199904

LT.GREEN ME.OP.,6P7

main52119-13210-J0iAE111,115..ZTOUR199804-199904

BLUE M.M,8L5

main52119-13220-A0iAE111,115..ZTOUR199704-200207

main52119-13220-B1iAE111,115..ZTOUR199704-199804

main52119-13220-C0iAE111,115..ZTOUR199904-200207

main52119-13220-D0iAE111,115..ZTOUR199704-199804

main52119-13220-G0iAE111,115..ZTOUR199804-199904

main52119-13220-J0iAE111,115..ZTOUR199804-199904

main52119-1E020iAE111,114..ROSSO199804-200207

52121BBRACKET, FRONT LICENCE PLATE MOUNTING

main52121-13010×2iAE11#199508-199704

main52121-20130×2iAE11#..4FC,5F199704-199705

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-13020iAE11#199508-199704

main52127-13030iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-13020iAE11#199508-199704

main52128-13030iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

52145CBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main52145-13010iAE11#199508-199704

52146BBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main52146-13010iAE11#..4FC,5F199704-199705

52147BBRACKET, FRONT BUMPER MOUNTING

main52147-12190×2iAE111,114..ROSSO199804-200207

main52147-16080×2iAE11#199508-199704

52412GUARD, FRONT BUMPER, NO.2

main52412-13020iAE11#199508-199704

52419PLATE, FRONT BUMPER GUARD

main52419-13010iAE11#199508-199704

main52419-13030iAE11#..BZT,STOUR,VTOUR,ZTOUR199704-200207

52427REINFORCEMENT, FRONT BUMPER GUARD, RH

main52427-13010iAE11#199508-199704

52428REINFORCEMENT, FRONT BUMPER GUARD, LH

main52428-13010iAE11#199508-199704

52433SUPPORT, FRONT BUMPER GUARD, RH

main52433-13010iAE11#199508-199704

52435GARNISH, FRONT BUMPER GUARD

main52435-13020iAE11#..4FC,5F199704-199705

52437COVER, FRONT BUMPER GUARD, RH

main52437-13010iAE11#199508-199704

52438COVER, FRONT BUMPER GUARD, LH

main52438-13010iAE11#..4FC,5F199704-199705

9010508132

main90105-08132

9010508340

main90105-08340

9010906221

main90109-06221

9010906286

main90109-06286

9010906294

main90109-06294

9015960385

main90159-60385

9015960431

main90159-60431

9017906127

main90179-06127

9018906048

main90189-06048

9018906065

main90189-06065

9046709093

main90467-09093

9046711101

main90467-11101

91513B0514

main91513-B0514

91651B0616

main91651-B0616

91661B0614

main91661-B0614

34 parts on this diagram · 3 diagrams in section
