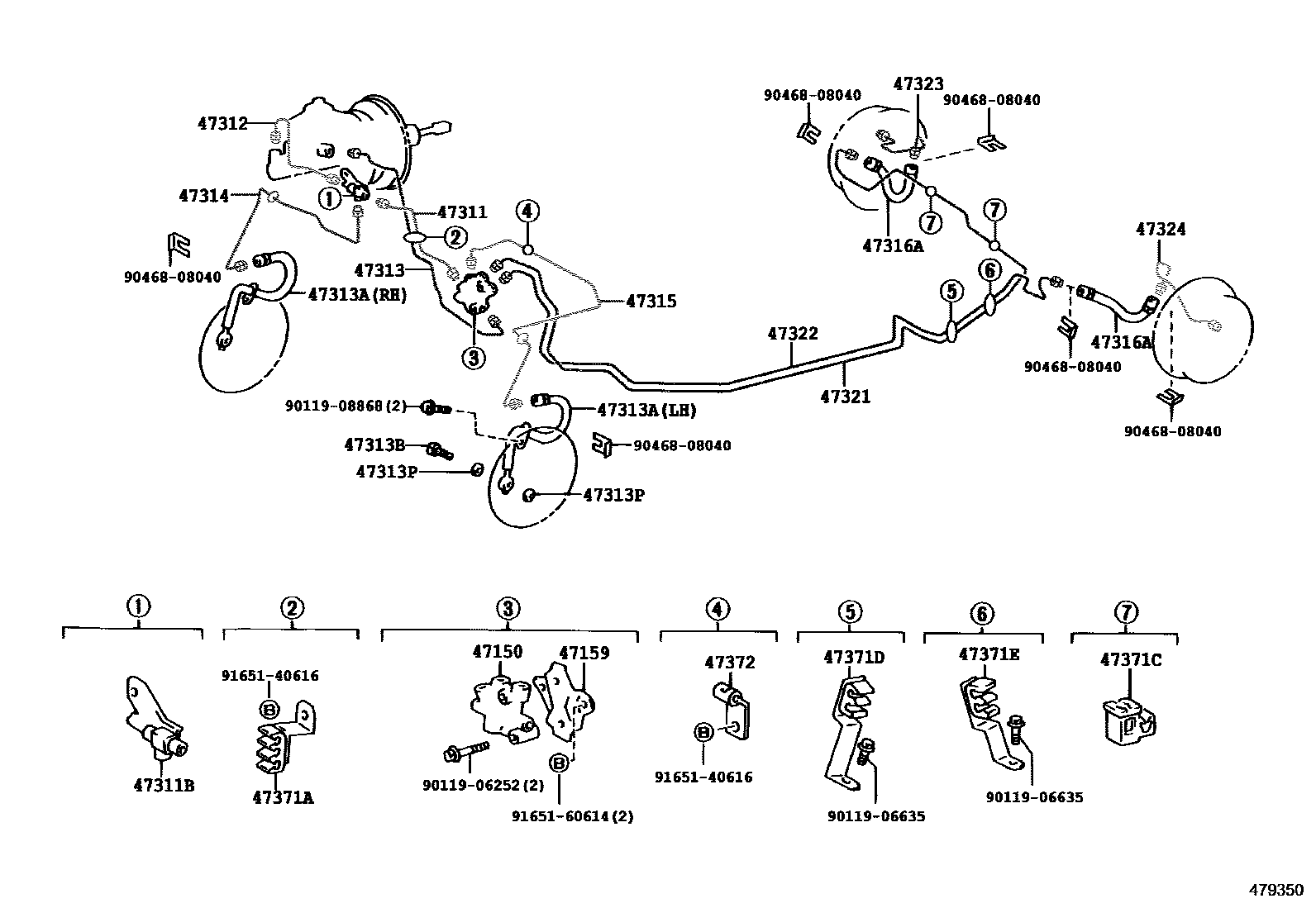

BRAKE TUBE & CLAMP
47150VALVE ASSY, PROPORTIONING
47159BRACKET, PROPORTIONING VALVE
47311TUBE, FRONT BRAKE, NO.1
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
47323TUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
47371CCLAMP, BRAKE TUBE, NO.7
47371DCLAMP, BRAKE TUBE, NO.8
47371ECLAMP, BRAKE TUBE, NO.9
9011906252
main90119-06252
9011906635
main90119-06635
9011908868
main90119-08868
9046808040
main90468-08040
9165140616
main91651-40616
9165160614
main91651-60614
28 parts on this diagram · 5 diagrams in section
