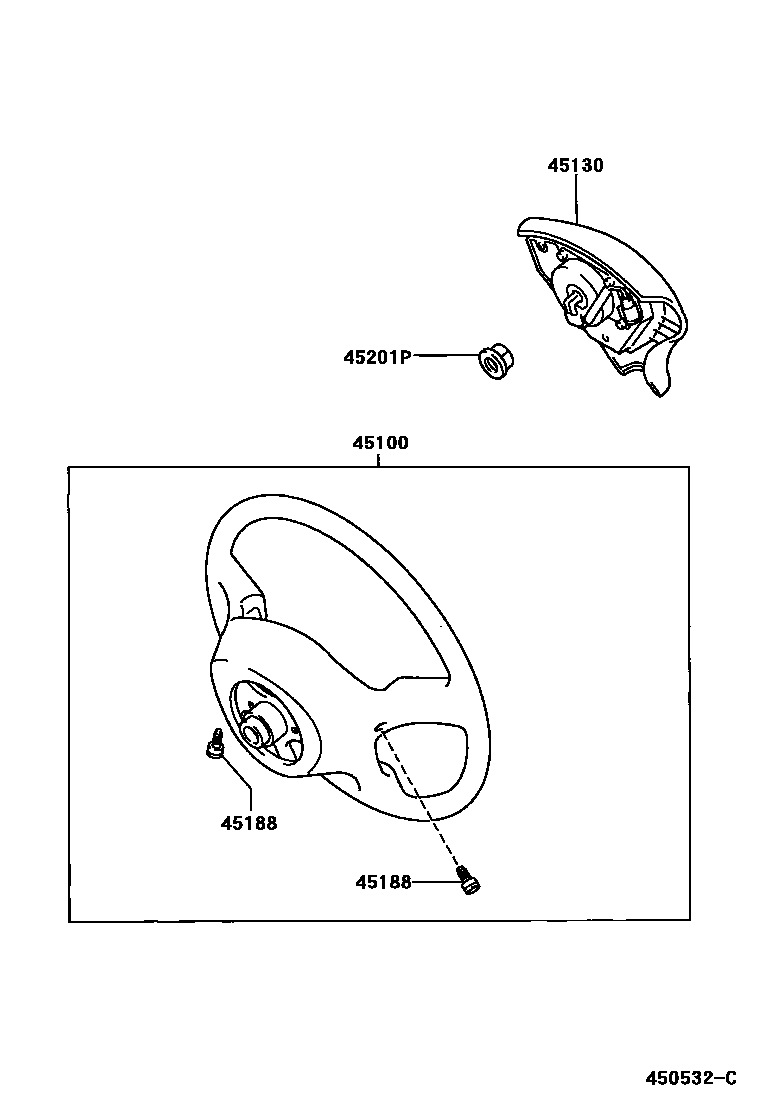

STEERING WHEEL

0001 13-SPOKE, ��(������ *80) 0002 1��(����� *80) 0004 14-SPOKE, ��(������ *80)

45100WHEEL ASSY, STEERING

main45100-12750-B0iAE11#199508-199604

main45100-12751-B0iAE11#..STOUR,VTOUR199605-199704

main45100-12850-B0iAE111..BZT199605-199704

main45100-12860-B0iAE11#..STOUR,VTOUR; AE111,115..ZTOUR199605-199704

main45100-12860-B1iAE111,114..ROSSO199804-200207

main45100-12891-C0iAE111..BZT199704-200207

main45100-12891-C1iAE111..BZT199804-200207

main45100-13010-B0iAE111,114..ROSSO199804-200207

main45100-13010-B1iAE11#..STOUR,VTOUR,ZTOUR199704-200207

45130BUTTON ASSY, HORN

main45130-12840-B0iAE11#199508-199605

main45130-1A050-B0iAE11#..STOUR,VTOUR; AE111,115..ZTOUR199605-199704

main45130-1A060-B0iAE111..BZT199605-199704

main45130-1A120-C0iAE111,114..STOUR199904-200207

main45130-1A130-B0iAE111,114..ROSSO199804-200207

main45130-1A130-B1iAE11#..STOUR,VTOUR,ZTOUR199704-200207

main45130-1A140-B0iAE11#..STOUR,VTOUR,ZTOUR199704-199807

main45130-1A140-B1iAE111,114..ROSSO199804-199807

main45130-1A170-B0iAE11#..STOUR,ZTOUR199807-200207

main45130-1A170-B1iAE111,114..ROSSO199807-200207

45188SCREW, STEERING WHEEL PAD ATTACHING

main90148-60007×2iAE11#..ROSSO,STOUR,VTOUR,ZTOUR199704-199903

main90148-60011×2iAE11#199508-199704

main90148-60036×2iAE111..BZT199704-199903

45201PNUT, STEERING WHEEL SET

main90179-12071iAE11#199508-199704

4 parts on this diagram · 3 diagrams in section
