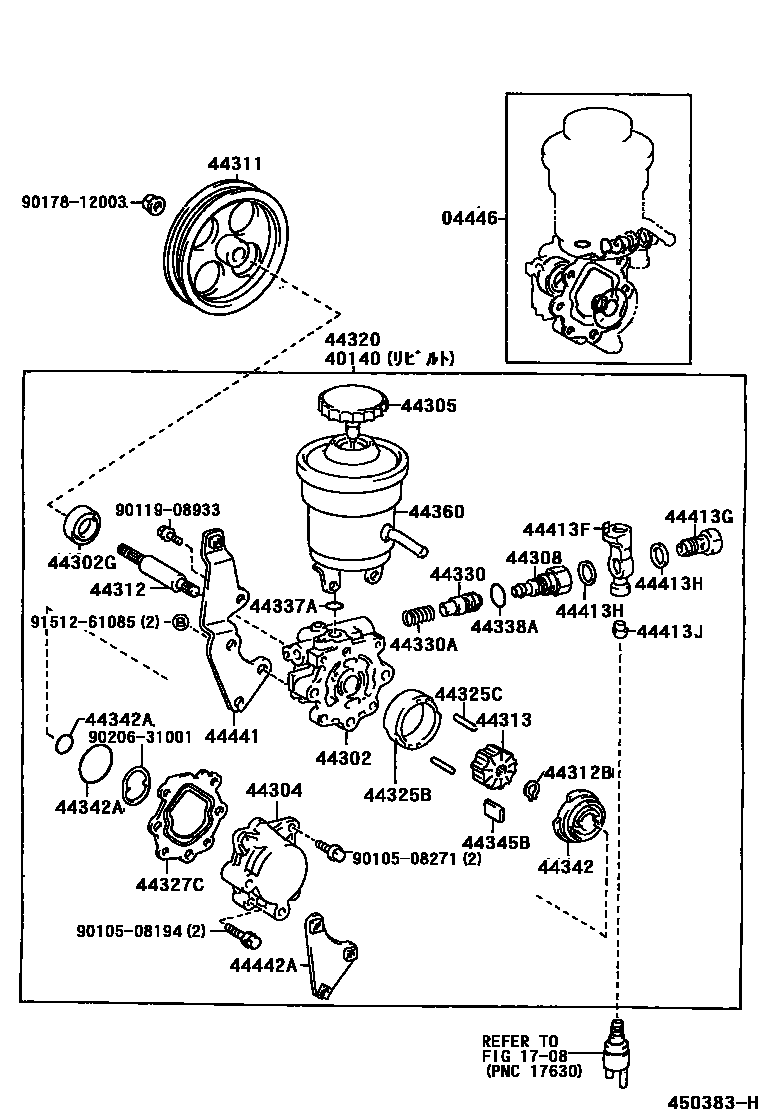

VANE PUMP & RESERVOIR (POWER STEERING)
04446GASKET KIT, POWER STEERING PUMP
1708VACUUM PIPING
40140PUMP ASSY,VANE REBUILT
44302HOUSING SUB-ASSY, VANE PUMP, FRONT
44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44304HOUSING SUB-ASSY, VANE PUMP, REAR
44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44308UNION SUB-ASSY, PRESSURE PORT
44311PULLEY, VANE PUMP
44312SHAFT, VANE PUMP
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44313ROTOR, VANE PUMP
44320PUMP ASSY, VANE
44325BRING, VANE PUMP CAM
44325CPIN, STRAIGHT(FOR VANE PUMP CAM RING)
44327CGASKET, VANE PUMP HOUSING
44330VALVE ASSY, FLOW CONTROL
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44337UNION, POWER STEERING SUCTION PORT
44337ARING, O(FOR POWER STEERING SUCTION PORT)
44338ARING, O(FOR PRESSURE PORT UNION)
44342PLATE, VANE PUMP SIDE, REAR
44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)
44345BPLATE, VANE PUMP
44360RESERVOIR ASSY, VANE PUMP OIL
44413FTUBE, PRESSURE FEED, NO.2
44413GBOLT, UNION(FOR PRESSURE FEED TUBE NO.2)
44413HGASKET(FOR PRESSURE FEED TUBE NO.2)
44413JSEAT, UNION(FOR PRESSURE FEED TUBE NO.2)
44441BRACKET, PUMP, FRONT
44442ABRACKET, VANE PUMP, REAR
9010508194
main90105-08194
9010508271
main90105-08271
9011908933
main90119-08933
9017812003
main90178-12003
9020631001
main90206-31001
9151261085
main91512-61085
37 parts on this diagram · 2 diagrams in section
