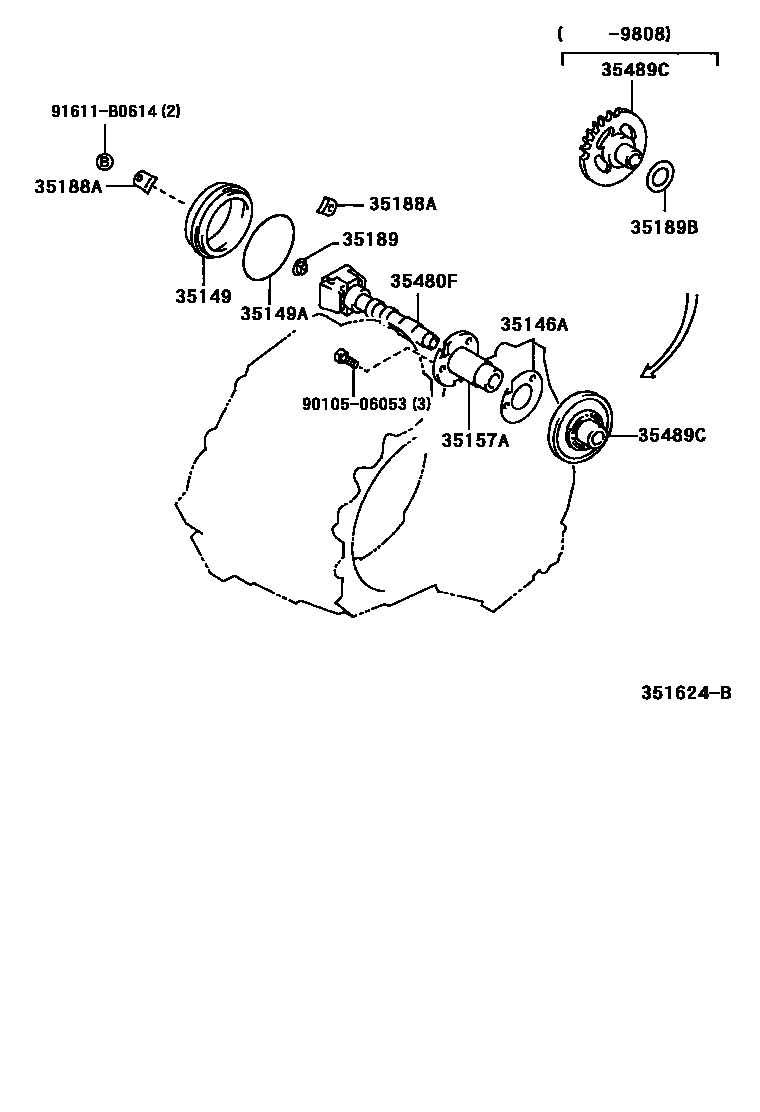

REAR OIL PUMP & GOVERNOR (ATM)

0001 1A241H 0002 1A241H

35146AGASKET, GOVERNOR BODY

main35146-20010iAE114..4FC199508-199704

35149COVER, GOVERNOR

main35149-20010iAE114,115..4FC199508-199704

35149ARING, O (FOR GOVERNOR COVER)

main90301-68001iAE114,115..4FC199508-199704

35157AADAPTER, GOVERNOR BODY

main35157-20031iAE114..4FC199508-199704

35188ABRACKET, GOVERNOR COVER

main35188-20010×2iAE114,115..4FC199508-199704

35189WASHER, GOVERNOR THRUST, NO.1

main35189-32011iAE114..4FC199508-199704

35189BWASHER, GOVERNOR THRUST, NO.2

main35189-12010iAE114..4FC199508-199704

35480FBODY ASSY, GOVERNOR

main35480-12060iAE114..4FC199508-199704

main35480-16050iAE114..4FC199704-200207

35489CGEAR, GOVERNOR DRIVEN

main35489-12010iAE114..4FC199508-199704

main35489-16020iAE114..4FC199808-200207

9010506053

main90105-06053

91611B0614

main91611-B0614

11 parts on this diagram · 2 diagrams in section
