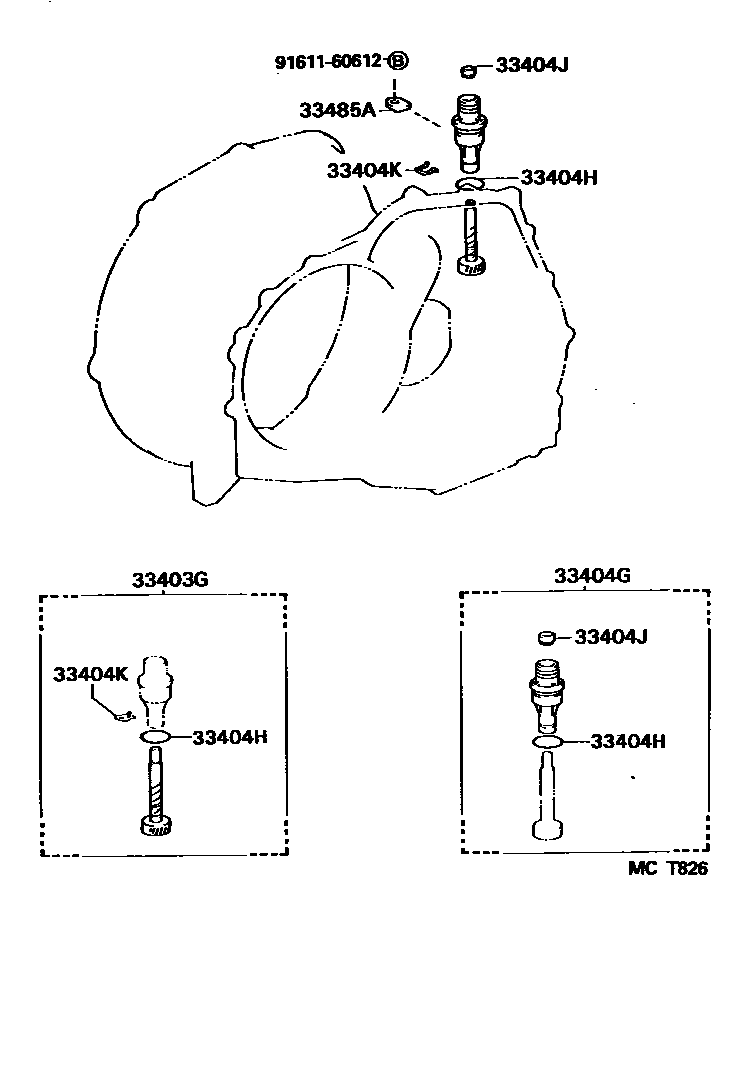

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A241H 0002 1A241H 0003 1A245E

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19425iAE114..4FC199508-199704

main33403-19465iAE111..4FC199704-200207

main33403-19545iAE115..4FC199508-199704

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-12040iAE114..4FC199508-199704

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iAE114..4FC199508-199704

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iAE114..4FC199508-199704

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iAE11#..4FC199508-199704

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-12020iAE114..4FC199508-199704

9161160612

main91611-60612

7 parts on this diagram · 3 diagrams in section
