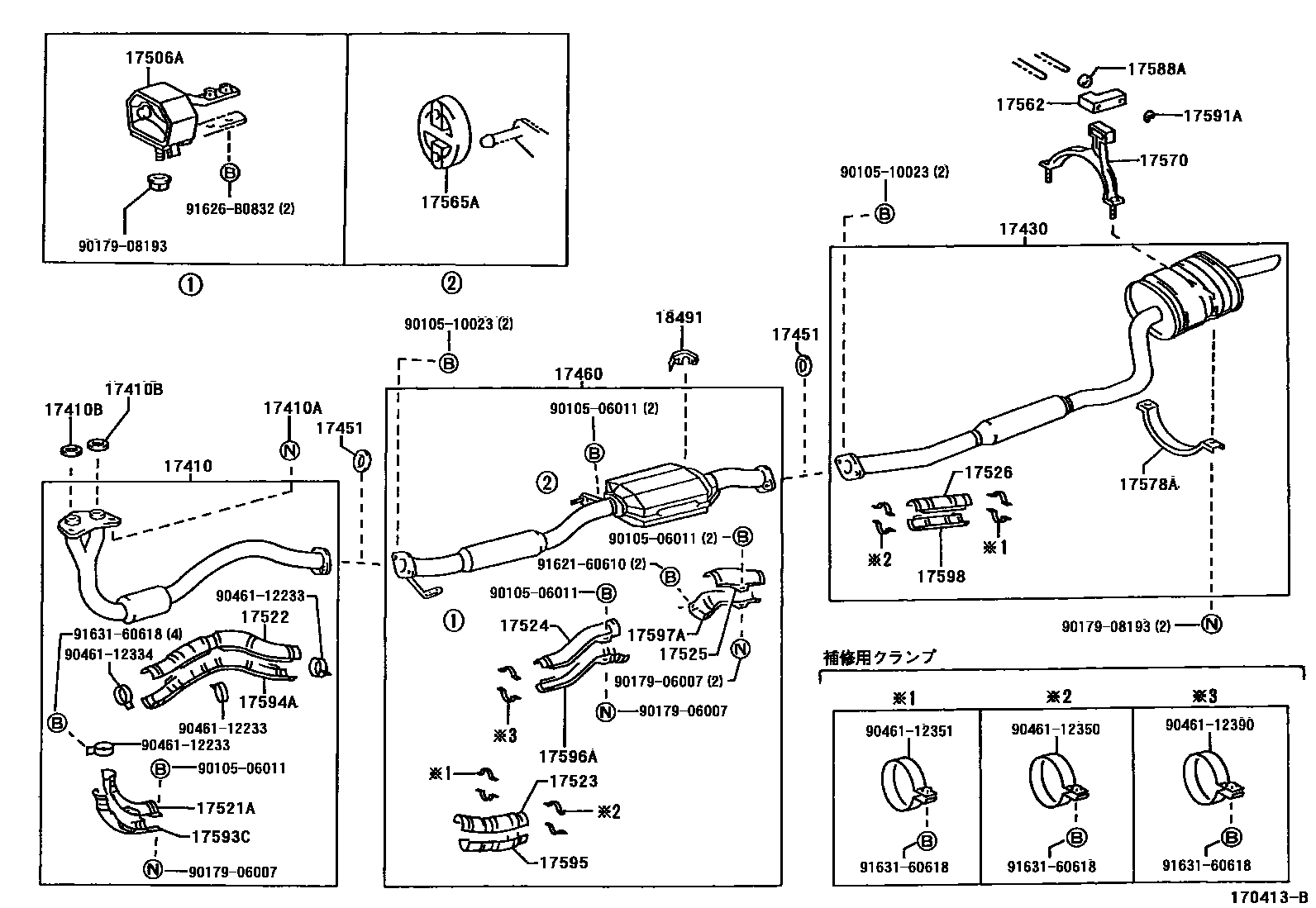

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17460CONVERTER ASSY, CATALYTIC W/PIPE
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17521APROTECTOR, EXHAUST PIPE, UPPER NO.1
17522PROTECTOR, EXHAUST PIPE, UPPER NO.2
17523PROTECTOR, EXHAUST PIPE, UPPER NO.3
17524PROTECTOR, EXHAUST PIPE, UPPER NO.4
17525PROTECTOR, EXHAUST PIPE, UPPER NO.5
17526PROTECTOR, EXHAUST PIPE, UPPER NO.6
17562SUPPORT, EXHAUST PIPE, NO.2
17565ASUPPORT, EXHAUST PIPE, NO.4
17570BRACKET ASSY, EXHAUST PIPE SUPPORT
17578ACLAMP, MUFFLER
17588ASPACER, EXHAUST PIPE HANGER
17591ASTOPPER, EXHAUST PIPE SUPPORT
17593CPROTECTOR, EXHAUST PIPE, LOWER NO.1
17594APROTECTOR, EXHAUST PIPE, LOWER NO.2
17595PROTECTOR, EXHAUST PIPE, LOWER NO.3
17596APROTECTOR, EXHAUST PIPE, LOWER NO.4
17597APROTECTOR, EXHAUST PIPE, LOWER NO.5
17598PROTECTOR, EXAUST PIPE, LOWER NO.6
18491FLANGE, THERMOSENSOR INLET
9010506011
main90105-06011
9010510023
main90105-10023
9017906007
main90179-06007
9017908193
main90179-08193
9046112233
main90461-12233
9046112334
main90461-12334
9046112350
main90461-12350
9046112351
main90461-12351
9046112390
main90461-12390
9162160610
main91621-60610
91626B0832
main91626-B0832
9163160618
main91631-60618
38 parts on this diagram · 5 diagrams in section
