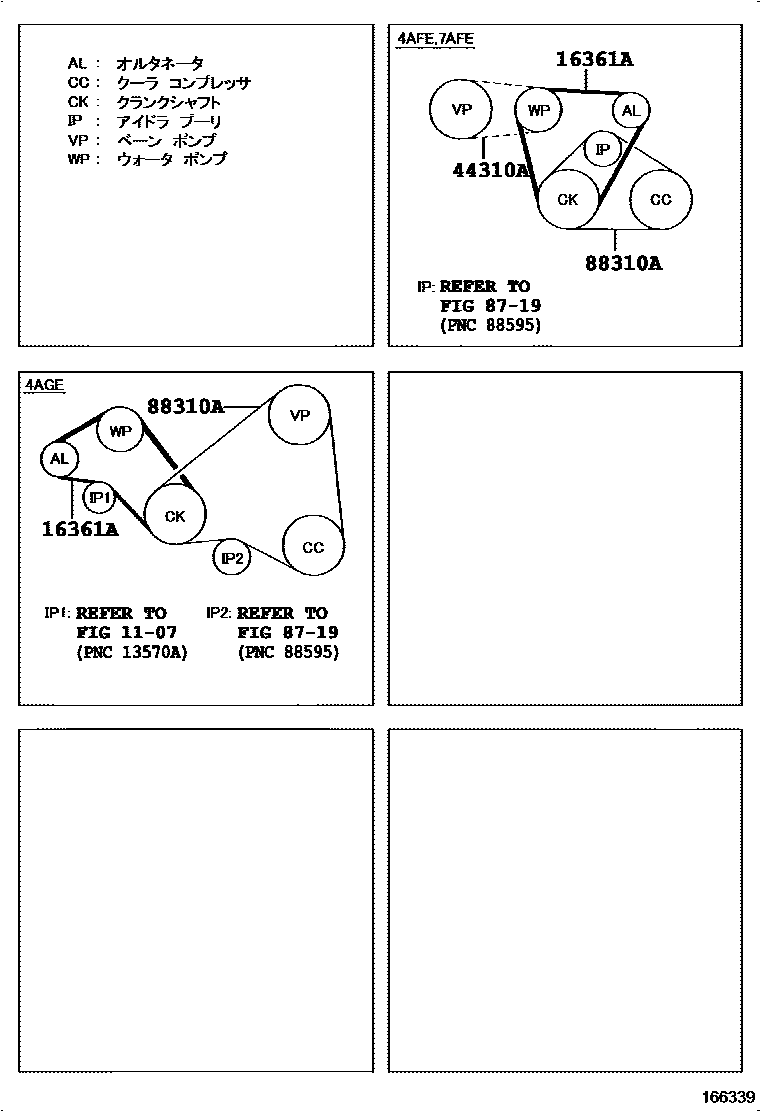

V-BELT

1107MOUNTING

→ Go to FIG 11-07

16361ABELT, V(FOR FAN & ALTERNATOR)

main99365-20970i4AFE,7AFE..AE11#199508-199704

main99365-80840i4AGE..AE111199605-199704

44310ABELT, V(FOR VANE PUMP)

main99363-80630iAE11#199508-199605

main99363-90630iAE11#..STOUR,VTOUR,ZTOUR199605-199704

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99364-20850iAE11#..STOUR,VTOUR,ZTOUR199508-199704

main99365-21060iAE111..BZT199605-199704

5 parts on this diagram · 1 diagram in section
