WATER PUMP

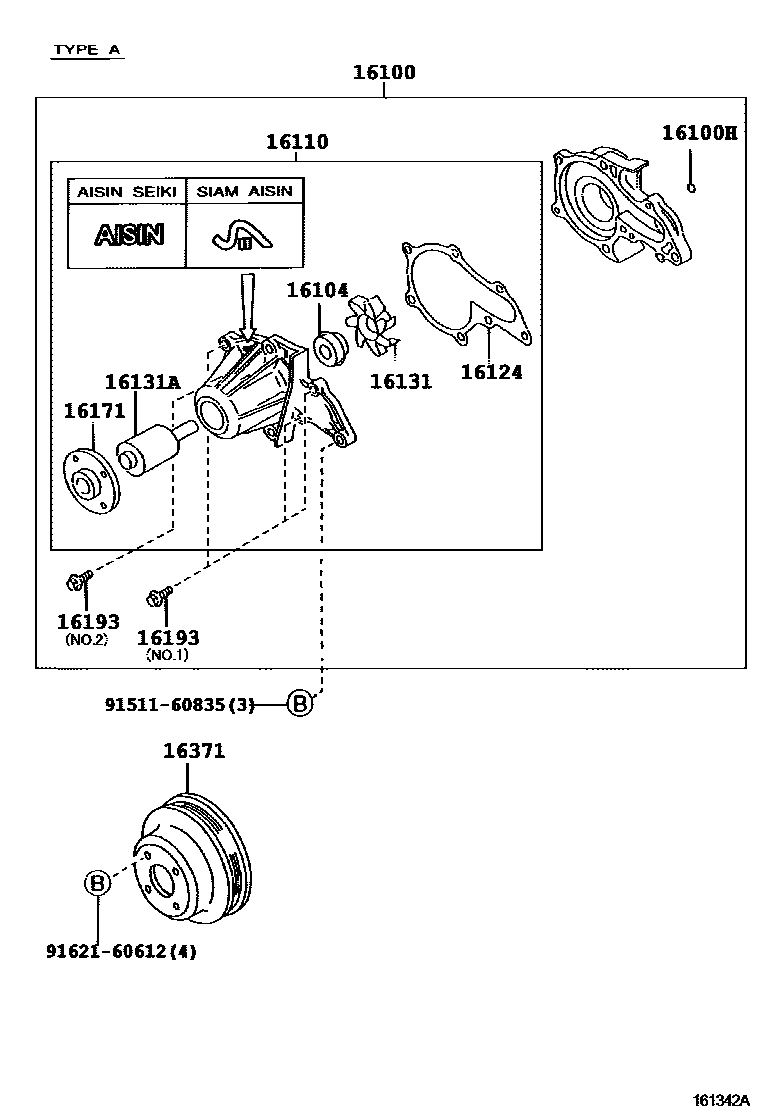

0001 1TYPE A 0002 1TYPE B 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-09120i4AFE..AE111,114199901-200207

main16100-19265i7AFE..AE115199508-199605

main16100-19285i4AGE..AE111199704-200207

main16100-19295i4AFE..AE111,114199508-199704

main16100-19305i7AFE..AE115199605-199704

16100HRING, O(FOR WATER PUMP)

main96761-24035i4A#,7AFE..AE11#199508-199704

16104SEAL SET, WATER PUMP

main16104-46060i4AFE,7AFE..AE11#199708-200003

main16104-54030i4AFE..AE111,114199704-199708

main16104-74010i4AGE..AE111199704-200003

16110PUMP ASSY, WATER, W/O COUPLING

main16110-19145i4AFE..AE111,114199508-199610

main16110-19146i4AFE..AE111,114199704-200207

main16110-19175i7AFE..AE115199508-199610

main16110-19176i7AFE..AE115199704-200207

main16110-19185i7AFE..AE115199508-199704

main16110-19195i4AGE..AE111199605-199704

main16110-19205i4AFE..AE111,114199704-200207

16124GASKET, WATER PUMP COVER

main16124-15110i4AFE,7AFE..AE11#199704-200207

main16124-16040i4AGE..AE111199704-200207

main16124-16050i7AFE..AE115199508-199605

main16124-16060i4AFE,7AFE..AE11#199704-200207

16131ROTOR, WATER PUMP

main16131-16020i4AFE,7AFE..AE11#199508-199605

main16131-16090i4AFE,7AFE..AE11#199605-199704

16131ABEARING, WATER PUMP

main90029-36846i4A#,7AFE..AE11#199605-199704

main90369-35071i7AFE..AE115199508-199605

16171SEAT, WATER PUMP PULLEY

main16171-10012i4AFE,7AFE..AE11#199508-199704

main16171-15020i4AGE..AE111199704-200207

main16171-15070i4AFE,7AFE..AE11#199508-199610

main16171-15071i4AFE,7AFE..AE11#199610-199704

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-15011×4i4AFE..AE111,114199508-199608

main16193-15090i7AFE..AE115199508-199605

main16193-15100×4i4AFE,7AFE..AE11#199508-199704

16371PULLEY, FAN

main16371-02030i4AFE..AE111,114199901-200207

main16371-15070i4AFE,7AFE..AE11#199508-199604

main16371-15071i4AFE..AE111,114; 7AFE..AE115199901-200207

main16371-16030i4AGE..AE111199704-200207

9151160835

main91511-60835

9162160612

main91621-60612

12 parts on this diagram · 3 diagrams in section
