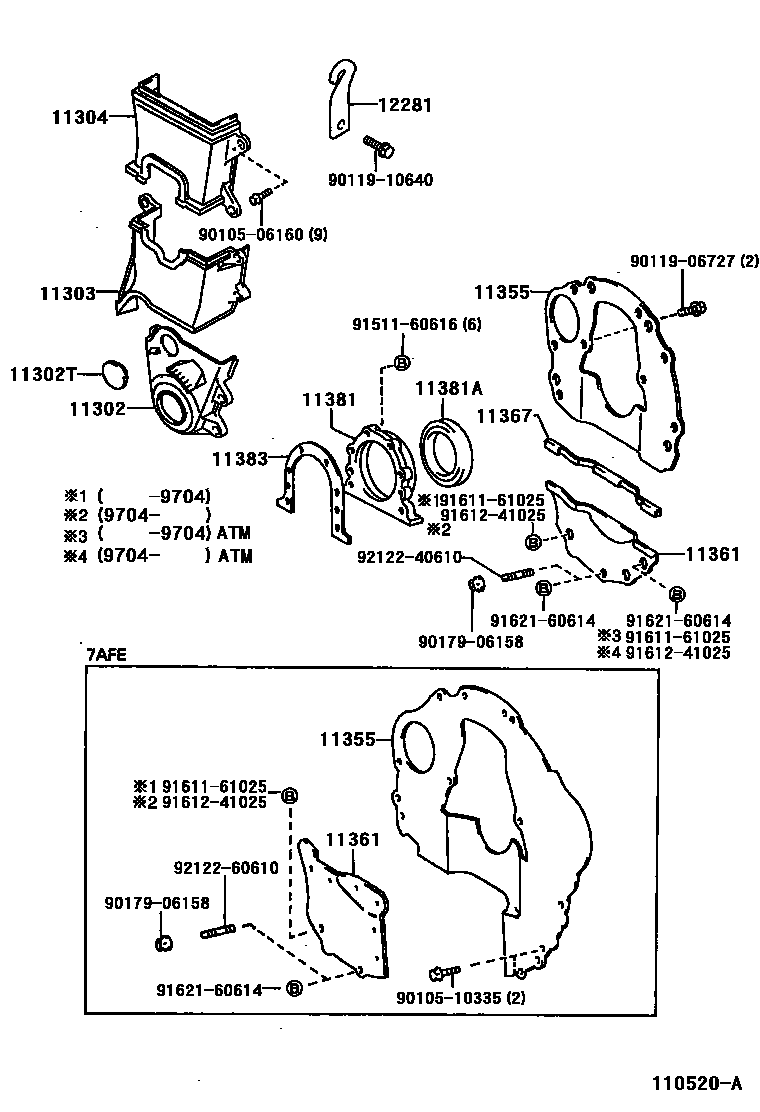

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-15050i4AFE,7AFE..AE11#199704-199910

main11302-16040i7AFE..AE115199910-200207

11302TPLUG, HOLE

main90950-01783i4AFE,7AFE..AE11#199508-199704

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-15050i4AFE..AE111,114199704-200207

main11303-16050i7AFE..AE115199508-199704

main11303-16070i7AFE..AE115199910-200207

11304COVER, TIMING CHAIN OR BELT, NO.2

main11304-15030i4AFE..AE111,114199508-199704

main11304-16060i7AFE..AE115199508-199704

11355PLATE, REAR END

main11355-15070i4A#..AE111..5F199605-199704

main11355-15080i4A#..AE111..4FC199605-199704

main11355-16010i4AFE..AE114199704-200207

main11355-16060i7AFE..AE115199508-199704

11361COVER, FLYWHEEL HOUSING UNDER

main11361-16040i4AFE..AE114199508-199704

main11361-16050i7AFE..AE115199508-199704

11367GASKET, FLYWHEEL HOUSING UNDER

main11367-15030i4AFE..AE114199508-199704

11381RETAINER, ENGINE REAR OIL SEAL

main11381-15010i4A#,7AFE..AE11#199508-199704

11381ASEAL, ENGINE REAR OIL

main90311-70007i4A#,7AFE..AE11#199704-200207

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-16010i4A#,7AFE..AE11#199704-200207

12281HANGER, ENGINE, NO.1

main12281-15050i4AFE,7AFE..AE11#199508-199704

main12281-16041i4AGE..AE111199704-200207

9010506160

main90105-06160

9010510335

main90105-10335

9011906727

main90119-06727

9011910640

main90119-10640

9017906158

main90179-06158

9151160616

main91511-60616

9161161025

main91611-61025

9161241025

main91612-41025

9162160614

main91621-60614

9212240610

main92122-40610

9212260610

main92122-60610

22 parts on this diagram · 3 diagrams in section
