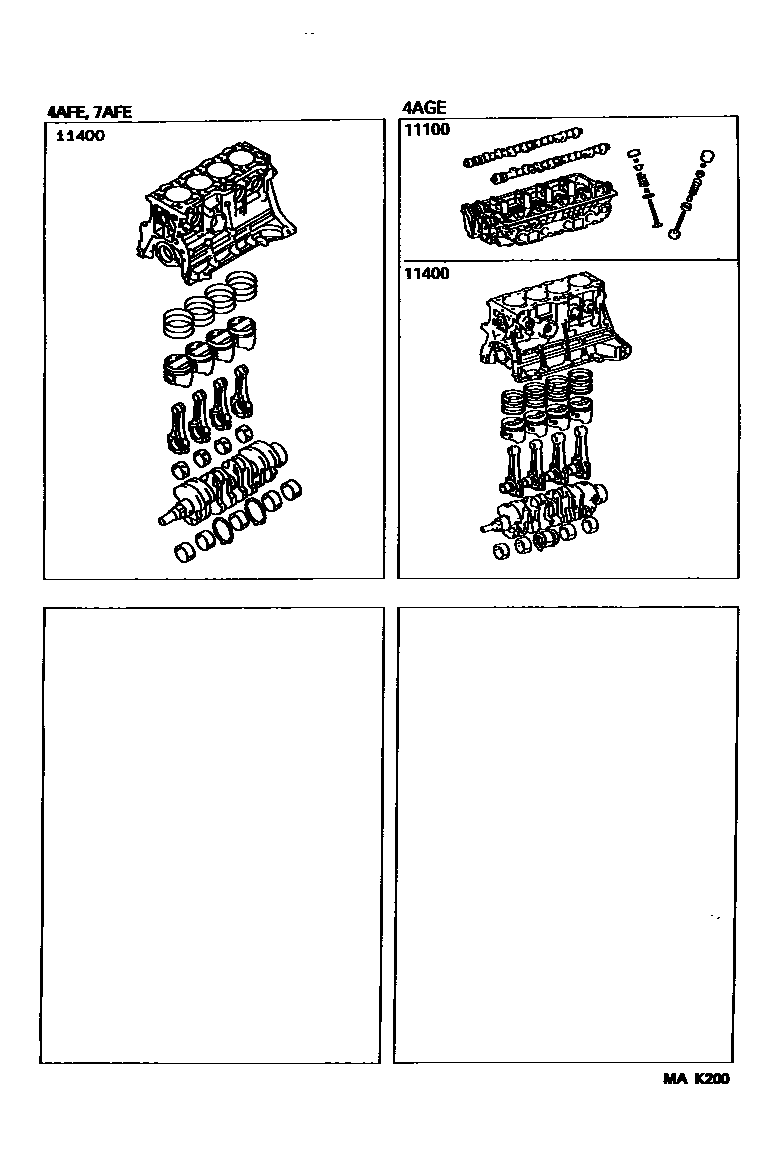

SHORT BLOCK ASSEMBLY

Parts diagram

11100HEAD ASSY, SHORT

main11100-16020i199704-200207

11400BLOCK ASSY, SHORT

main11400-16310i199605-199704

main11400-16320i199508-199704

main11400-16400i199605-199704

main11400-16420i199704-200207

main11400-16430i199704-200207

main11400-16450i199704-200207

2 parts on this diagram · 1 diagram in section
