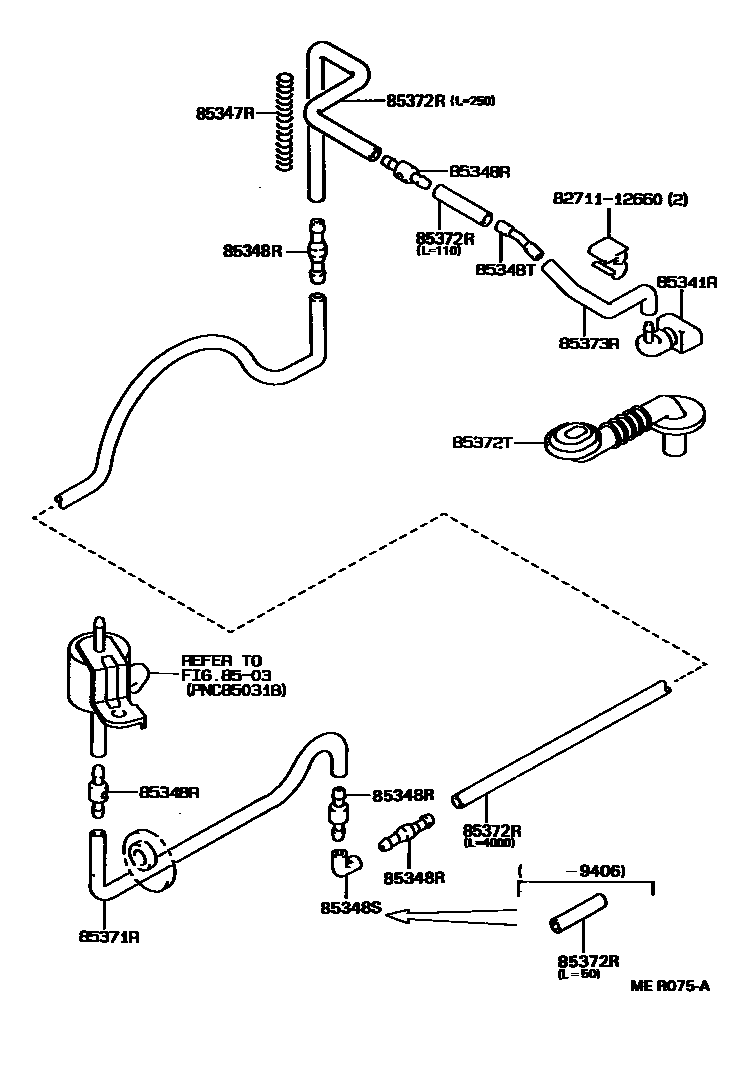

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85341RNOZZLE ASSY, WASHER

main85341-12240iAE95199009-199508

85347RSPRING

main85347-12150iAE95199009-199508

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122×5iAE95199009-199508

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481iAE95199406-199508

85348TJOINT, REAR WASHER HOSE, NO.2

main85355-20080iAE95199009-199508

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-07001iAE95199009-199406

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33299iAE95199009-199406

main90099-33511iAE95199009-199508

main90446-07001iAE95199009-199508

85372TGROMMET, WASHER

main85372-12020iAE95199009-199508

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iAE95199009-199508

8271112660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12660

11 parts on this diagram · 1 diagram in section
