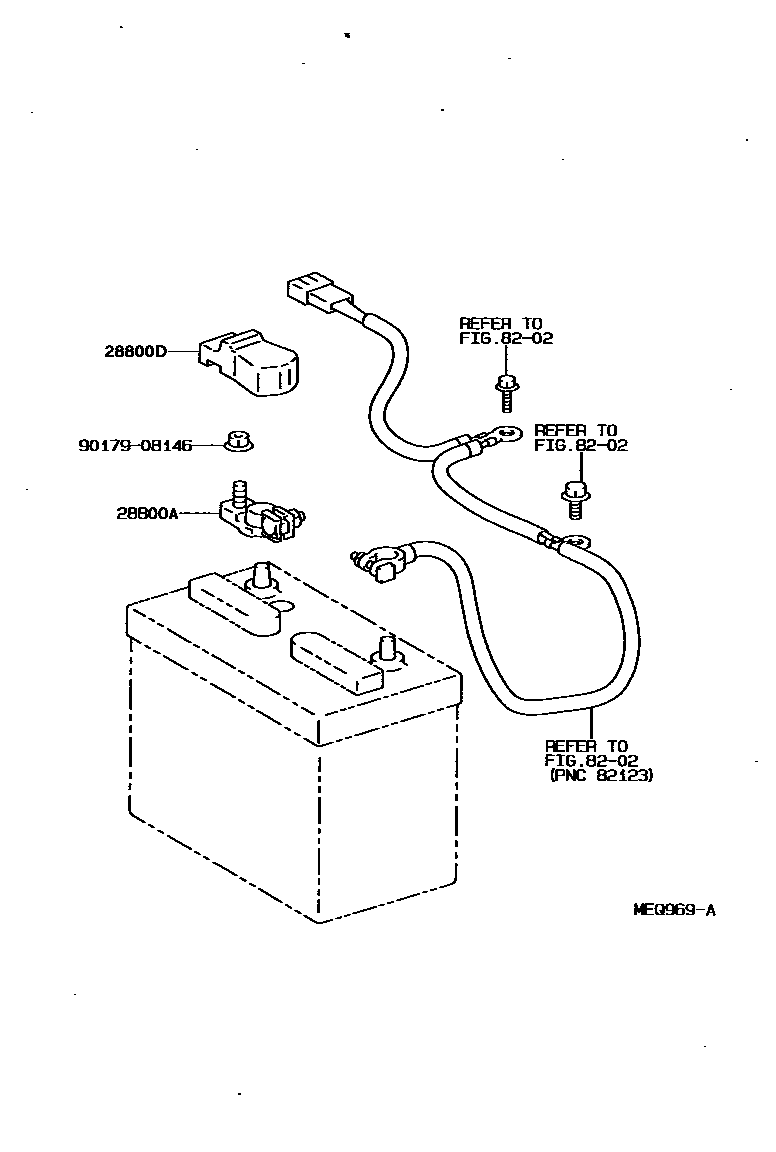

BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05034i4AFHE..AE95199009-199508

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12190i4AFHE..AE95..AV1,RVS; 4AFHE..AE95..AV2199009-199306

main82821-12260i4AFHE..AE95199009-199306

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908146

main90179-08146

4 parts on this diagram · 1 diagram in section
