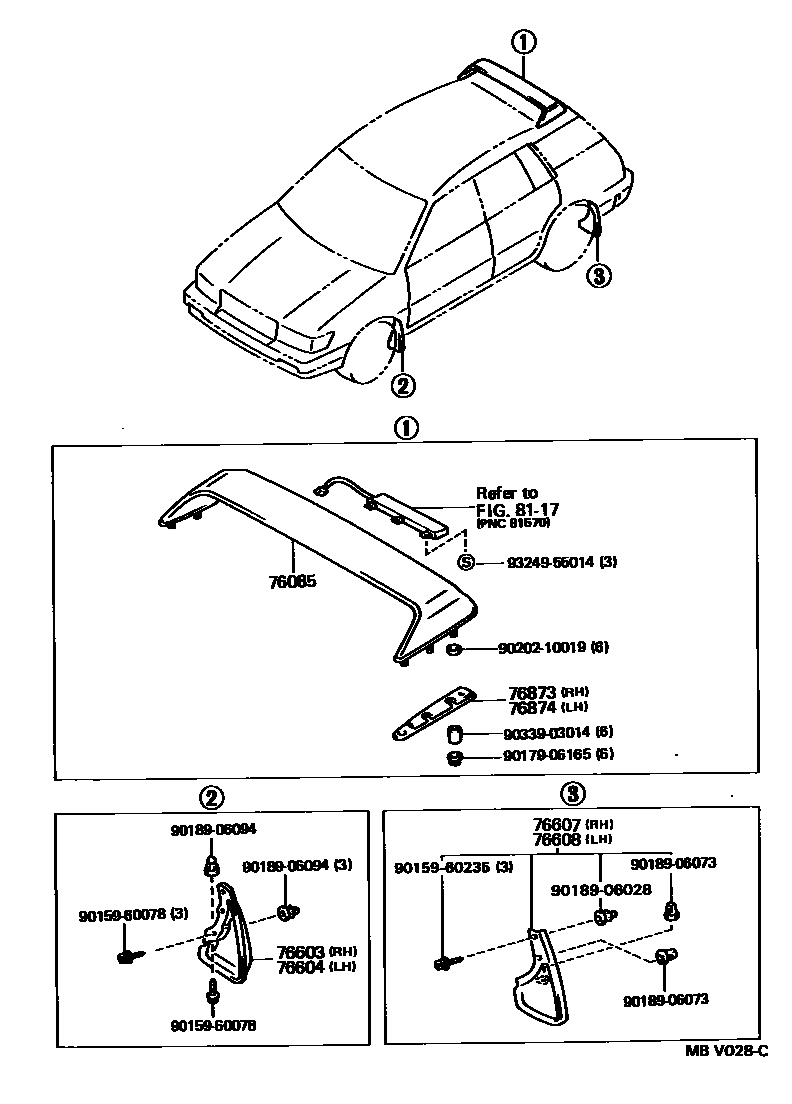

MUDGUARD & SPOILER
76085SPOILER SUB-ASSY, REAR
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
BLACK M,23S
SUPER WHITE 2,040
DARK BLUE MICA M,25M
GRAYISH GREEN M,6K6
MEDIUM KHAKI M,22S
GRAY,20G
10TH ANNIVERSARY,SILVER MICA ME,25W
LIGHT BEIGE M,27T
GRAYISH GREEN ME,6M3
PASTEL AQUA ME.,21W
DK BLUE MICA M,26T
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
BLACK M,23S
SUPER WHITE 2,040
DARK BLUE MICA M,25M
GRAYISH GREEN M,6K6
MEDIUM KHAKI M,22S
GRAY,20G
10TH ANNIVERSARY,SILVER MICA ME,25W
LIGTE BEIGE M,27T
GRAYISH GREEN ME,6M3
PASTEL AQUA ME.,21W
DK BLUE MICA M,26T
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
BLACK M,23S
SUPER WHITE 2,040
GRAY,20G
DARK BLUE MICA M,25M
GRAYISH GREEN M,6K6
MEDIUM KHAKI M,22S
10TH ANNIVERSARY,SILVER MICA ME,25W
LIGHT BEIGE,27T
GRAYISH GREEN ME,20W ,6M3
PASTEL AQUA ME.,21W
DK BLUE MICA M,26T
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
BLACK M,23S
SUPER WHITE 2,040
GRAY,20G
DARK BLUE MICA M,25M
GRAYISH GREEN M,6K6
MEDIUM KHAKI M,22S
10TH ANNIVERSARY,SILVER MICA ME,25W
LIGHT BEIGE M,27T
GRAYISH GREEN ME,6M3
PASTEL AQUA ME.,21W
DK BLUE MICA M,26T
76873PROTECTOR, REAR SPOILER, NO.2
76874PROTECTOR, REAR SPOILER, NO.3
8117CENTER STOP LAMP
9015960078
main90159-60078
9015960235
main90159-60235
9017906165
main90179-06165
9018906028
main90189-06028
9018906073
main90189-06073
9018906094
main90189-06094
9020210019
main90202-10019
9033903014
main90339-03014
9324955014
main93249-55014
17 parts on this diagram · 1 diagram in section
