LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-12200iAE95199009-199508

sub69051-12220

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-12200iAE95199009-199508

sub69052-12220

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-12540iAE95199009-199508

sub69055-12550

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-12080iAE95199009-199508

sub69057-12110

69503CYLINDER SET, LOCK

main69005-1A150iAE95199009-199508

sub69005-1A180

69503AKEY, BLANK

main90999-00130iAE95199009-199508

sub90999-00153

main90999-00132iAE95199009-199508

sub90999-00174

69555COVER, KEY

main69555-17020iAE95..4FC;AE95..5F..(AV2,RVS)199210-199508

main69555-20010iAE95..4FC;AE95..5F..(AV2,RVS)199009-199210

69561BRETAINER, BACK DOOR LOCK CYLINDER

main69511-32010iAE95199009-199508

69563PAD, BACK DOOR LOCK CYLINDER

main69563-12040iAE95199009-199508

69573PAD, IGNITION SWITCH LOCK CYLINDER

main69573-12010iAE95199009-199508

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-20090iAE95199009-199508

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-30040iAE95199009-199508

main69759-30050iAE95199009-199508

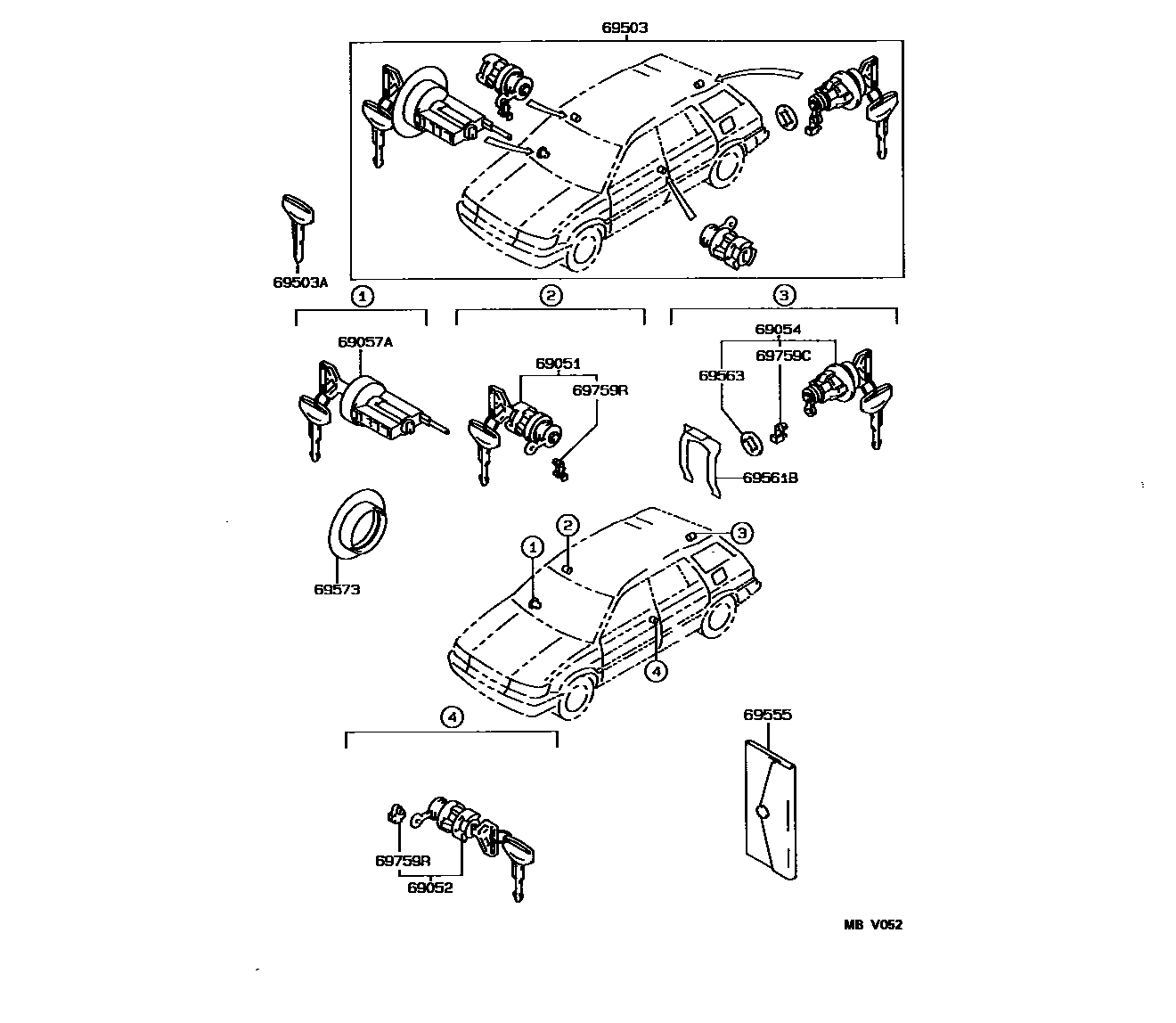

12 parts on this diagram · 1 diagram in section
