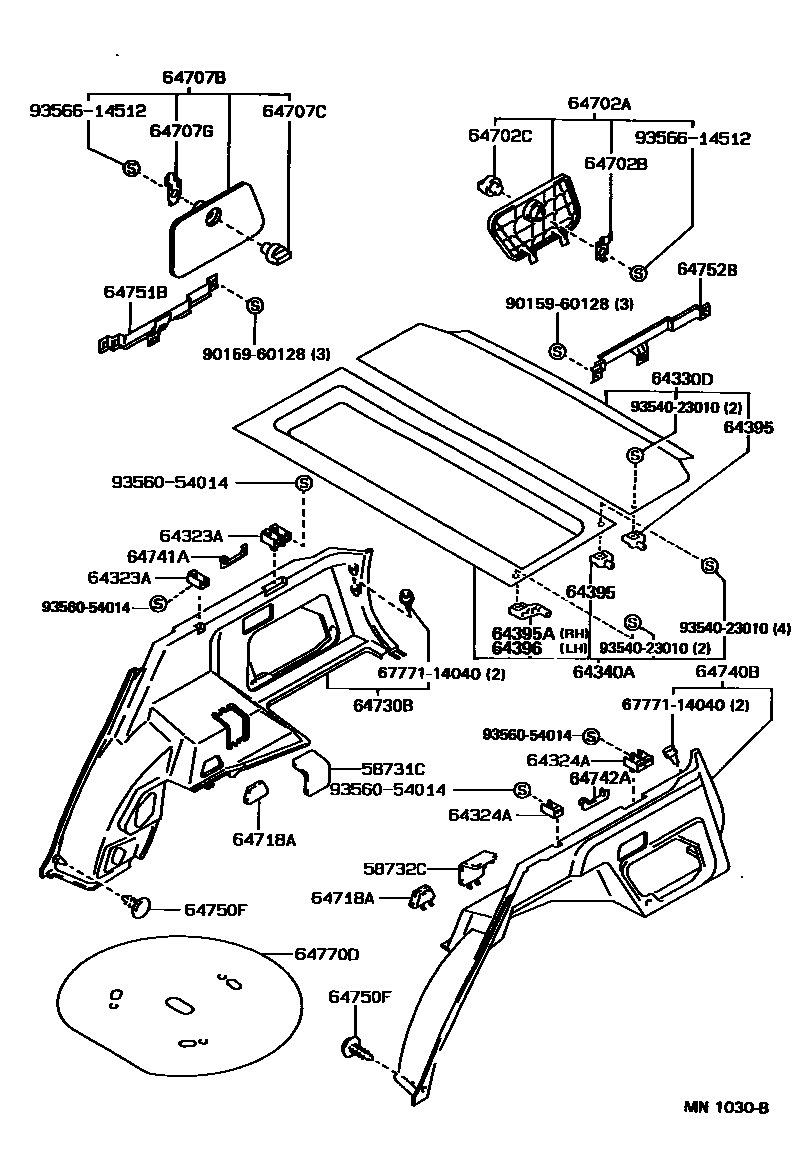

DECK BOARD & DECK TRIM COVER

58731CCAP, REAR ABSORBER

main58731-12030-03iAE95199009-199508

SHADOW GRAY,TRIM1#

main58731-12030-04iAE95199009-199308

DARK BLUE,TRIM8#

58732CCAP, REAR ABSORBER

main58731-12030-03iAE95199009-199508

SHADOW GRAY,TRIM1#

main58731-12030-04iAE95199009-199308

DARK BLUE,TRIM8#

64323ACLAMP, PACKAGE TRAY TRIM, RH

main64323-12030iAE95199009-199508

FRONT

main64323-12040iAE95199009-199508

REAR

64324ACLAMP, PACKAGE TRAY TRIM, LH

main64323-12030iAE95199009-199508

FRONT

main64323-12040iAE95199009-199508

REAR

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-1A220-03iAE95..AV2,RVS199009-199508

SHADOW GRAY,TRIM1#

main64330-1A220-04iAE95..AV2,RVS199009-199308

DARK BLUE,TRIM8#

64340APANEL ASSY, PACKAGE TRAY TRIM, NO.2

main64340-12010-03iAE95..AV2,RVS199009-199109

SHADOW GRAY,TRIM1#

main64340-12010-04iAE95..AV2,RVS199009-199109

DARK BLUE,TRIM8#

main64340-12020-03iAE95..AV2,RVS199109-199508

SHADOW GRAY,TRIM1#

main64340-12020-04iAE95..AV2,RVS199109-199308

DARK BLUE,TRIM8#

64395PIN, PACKAGE TRAY TRIM HINGE

main64395-12110iAE95..AV2,RVS199009-199508

64395APIN, PACKAGE TRAY TRIM HINGE, RH

main64395-12090iAE95..AV2,RVS199009-199508

64396PIN, PACKAGE TRAY TRIM HINGE, LH

main64396-12030iAE95..AV2,RVS199009-199508

64702ACOVER SUB-ASSY, DECK TRIM SIDE SERVICE HOLE

main64702-12030-03iAE95199009-199508

SHADOW GRAY,TRIM1#

main64702-12030-04iAE95199009-199308

DARK BLUE,TRIM8#

64702BSTOPPER, WASHER TANK COVER

main64981-16021iAE95199009-199508

64702CKNOB, WASHER TANK COVER

main64982-16020-30iAE95199009-199310

SHADOW GRAY,TRIM1#

main64982-16020-54iAE95199009-199308

DARK BLUE,TRIM8#

main64982-16020-P0iAE95199310-199508

SHADOW GRAY,TRIM1#

64707BCOVER SUB-ASSY, QUARTER TRIM JACK

main64707-12060-03iAE95199009-199508

SHADOW GRAY,TRIM1#

main64707-12060-04iAE95199009-199308

DARK BLUE,TRIM8#

64707CKNOB, JACK COVER

main64982-16020-30iAE95199009-199310

SHADOW GRAY,TRIM1#

main64982-16020-54iAE95199009-199308

DARK BLUE,TRIM8#

main64982-16020-P0iAE95199310-199508

SHADOW GRAY,TRIM1#

64707GSTOPPER, JACK COVER

main64981-16021iAE95199009-199508

64718ACOVER, DECK TRIM SERVICE HOLE

main64718-12010-03iAE95..AV2199009-199508

SHADOW GRAY,TRIM1#

main64718-12010-04iAE95..AV2199009-199308

DARK BLUE,TRIM8#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-12210-03iAE95..AV2199009-199109

main64730-12210-04iAE95..AV2199009-199109

main64730-12211-B0iAE95..AV2199109-199508

main64730-12211-J0iAE95..AV2199109-199308

main64730-12280-03iAE95199009-199109

SHADOW GRAY,TRIM1#

main64730-12280-04iAE95199009-199109

DARK BLUE,TRIM8#

main64730-12290-03iAE95199109-199508

SHADOW GRAY,TRIM1#

main64730-12290-04iAE95199109-199308

DARK BLUE,TRIM8#

64740BBOARD, DECK TRIM SIDE, LH

main64740-12210-03iAE95..AV2199009-199109

main64740-12210-04iAE95..AV2199009-199109

main64740-12211-B0iAE95..AV2199109-199508

main64740-12211-J0iAE95..AV2199109-199308

main64740-12280-03iAE95199009-199109

SHADOW GRAY,TRIM1#

main64740-12280-04iAE95199009-199109

DARK BLUE,TRIM8#

main64740-12290-03iAE95199109-199508

SHADOW GRAY,TRIM1#

main64740-12290-04iAE95199109-199308

DARK BLUE,TRIM8#

64741APROTECTOR, DECK TRIM SIDE, RH

main64741-12030-03iAE95199109-199508

SHADOW GRAY,TRIM1#

main64741-12030-04iAE95199109-199308

DARK BLUE,TRIM8#

64742APROTECTOR, DECK TRIM SIDE, LH

main64741-12030-03iAE95199109-199508

SHADOW GRAY,TRIM1#

main64741-12030-04iAE95199109-199308

DARK BLUE,TRIM8#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-06049-B0iAE95199009-199508

SHADOW GRAY,TRIM1#

main90467-06049-J1iAE95199009-199308

DARK BLUE,TRIM8#

64751BBRACKET, SPEAKER SET, NO.1 RH

main64751-12030iAE95199009-199508

64752BBRACKET, SPEAKER SET, NO.1 LH

main64752-12030iAE95199009-199508

64770DCOVER ASSY, SPARE WHEEL

main64770-12150iAE95199009-199508

main64770-16080iAE95199009-199508

6777114040WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-14040

9015960128

main90159-60128

9354023010

main93540-23010

9356054014

main93560-54014

9356614512

main93566-14512

29 parts on this diagram · 1 diagram in section
