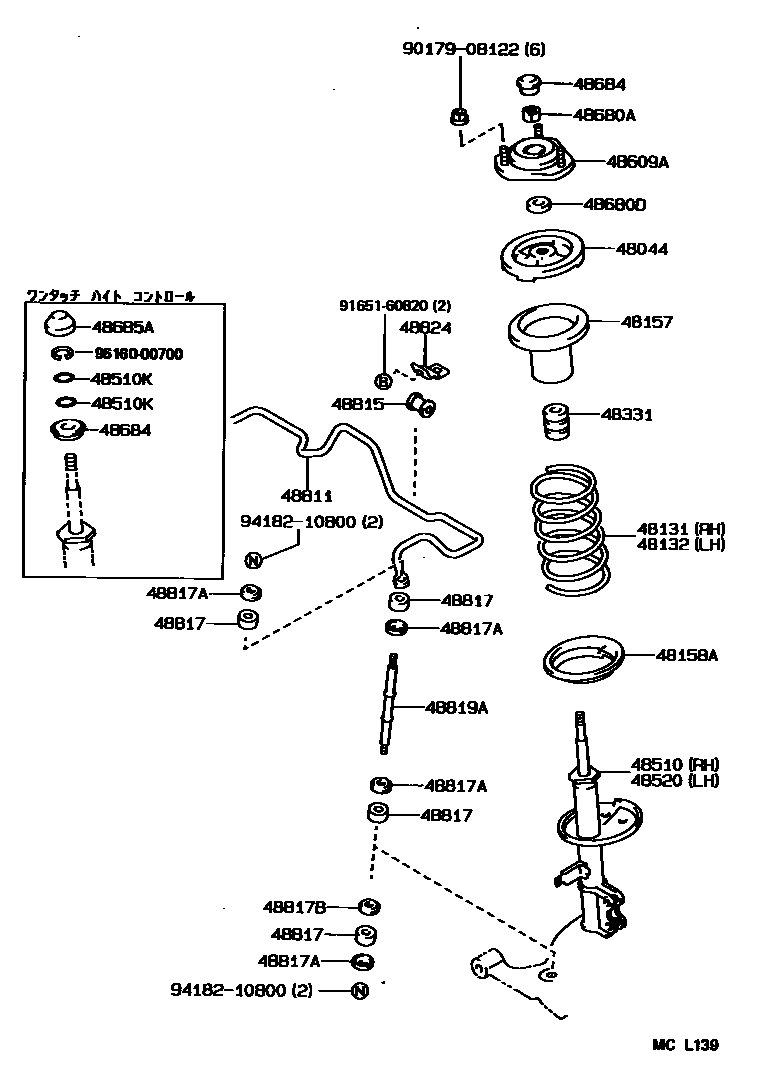

FRONT SPRING & SHOCK ABSORBER

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-12090iAE95199009-199508

48131SPRING, FRONT COIL, RH

main48131-1H870iAE95..5F..(AV1,RVS)199009-199508

main48131-1H890iAE95..5F..AV2;AE95..4FC..(AV1,RVS)199009-199508

main48131-1H890iAE95..5F..AV2;AE95..4FC..(AV1,RVS)199009-199508

main48131-1K010iAE95..4FC..AV2199009-199508

48132SPRING, FRONT COIL, LH

main48131-1H840iAE95..5F..(AV1,RVS)199009-199508

sub48131-1H800

main48131-1H870iAE95..5F..AV2;AE95..4FC..(AV1,RVS)199009-199508

main48131-1H870iAE95..5F..AV2;AE95..4FC..(AV1,RVS)199009-199508

main48131-1H890iAE95..4FC..AV2199009-199508

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-12060iAE95199009-199508

main48157-12070iAE95..AV2199009-199508

48158AINSULATOR, FRONT COIL SPRING, LOWER

main48158-12030iAE95199009-199508

48331BUMPER, FRONT SPRING, NO.1

main48331-12130iAE95..AV2199009-199508

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-12651iAE95199009-199508

sub48510-12650

main48510-12671iAE95..AV2199009-199508

sub48510-12672

48510KRING, O(FOR FRONT SHOCK ABSORBER)

main90301-06007iAE95..AV2199009-199508

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-12521iAE95199009-199508

sub48520-12520

main48520-12541iAE95..AV2199009-199508

sub48520-12542

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-12192iAE95199009-199508

main48609-12222iAE95..AV2199009-199508

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94182-11400iAE95199009-199508

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iAE95199009-199508

48684COVER, BEARING DUST

main48684-12050iAE95..AV2199009-199508

main48684-32010iAE95199009-199508

48685ACOVER, HOSE UNION

main48685-12020iAE95..AV2199009-199508

48811BAR, STABILIZER, FRONT

main48811-12690iAE95199009-199508

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-12180iAE95199009-199508

48817CUSHION, FRONT STABILIZER

main48817-30020iAE95199009-199508

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032iAE95199009-199508

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015iAE95199009-199508

48819ABOLT, FRONT STABILIZER

main48819-20030iAE95199009-199508

48824BRACKET, STABILIZER, FRONT

main48824-12090iAE95199009-199508

9017908122

main90179-08122

9165160820

main91651-60820

9418210800

main94182-10800

9616000700

main96160-00700

25 parts on this diagram · 1 diagram in section
