Toyota 157110 — FRONT DISC BRAKE CALIPER & DUST COVER

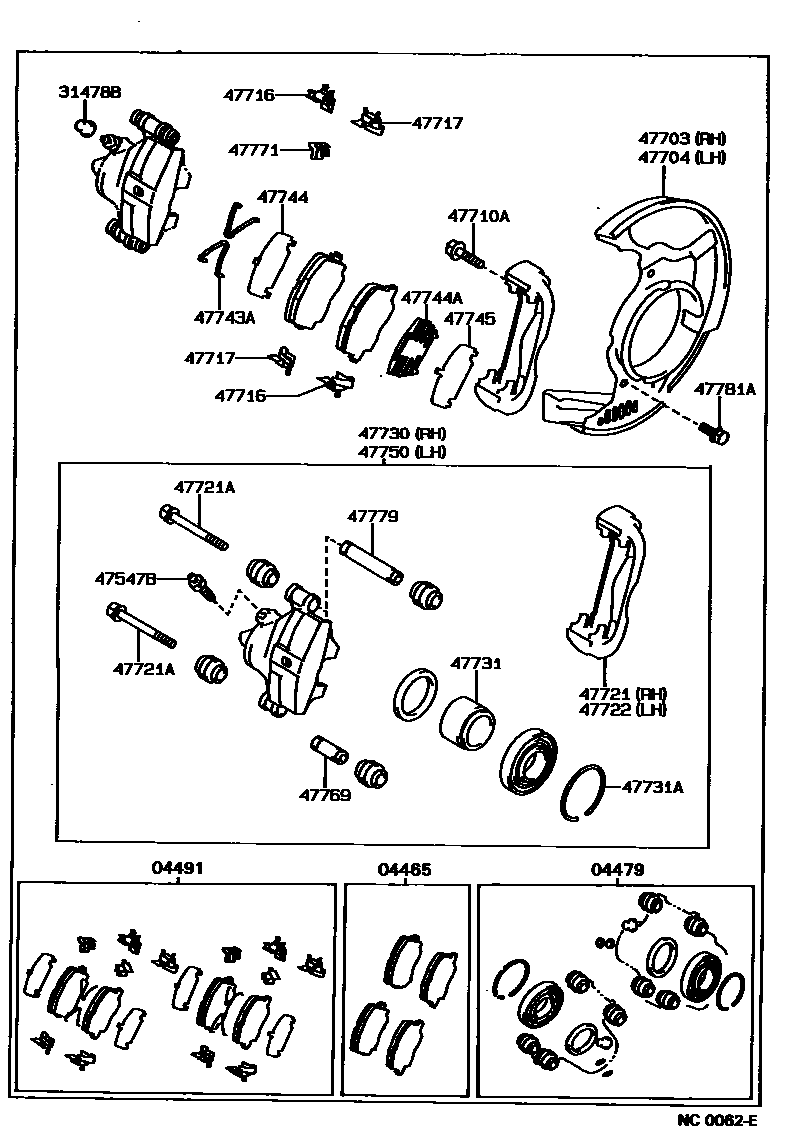

Parts diagram

04465PAD KIT, DISC BRAKE, FRONT

04479CYLINDER KIT, DISC BRAKE, FRONT

04491PAD KIT, DISC BRAKE, FRONT

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

47731PISTON, FRONT DISC BRAKE

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

47750CYLINDER ASSY, DISC BRAKE, LH

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

47771PLATE, PAD WEAR INDICATOR, NO.1

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

25 parts on this diagram · 2 diagrams in section

FRONT DISC BRAKE CALIPER & DUST COVER for Toyota 157110

This section contains 27 genuine Toyota parts for the FRONT DISC BRAKE CALIPER & DUST COVER system of the Toyota 157110. Key components include: PAD KIT, DISC BRAKE, FRONT, CYLINDER KIT, DISC BRAKE, FRONT, SHIM KIT, ANTI SQUEAL, FRONT, FITTING KIT, DISC BRAKE, FRONT.
