BRAKE BOOSTER & VACUUM TUBE

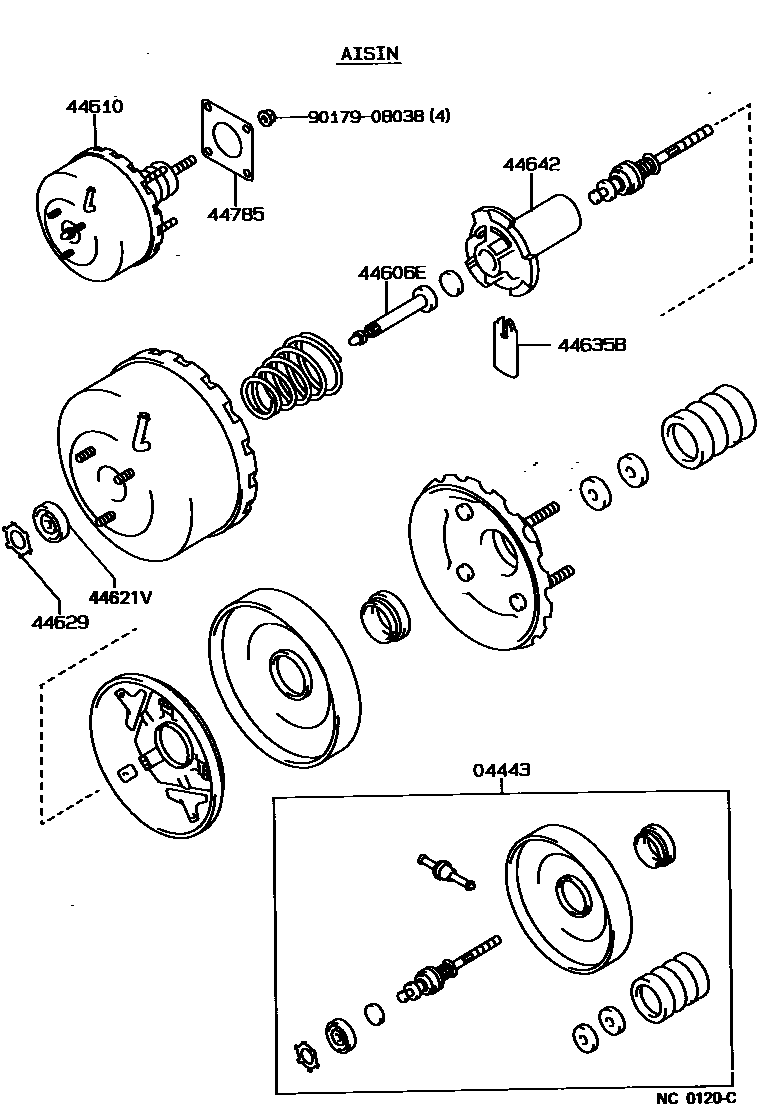

Parts diagram

04443BOOSTER KIT, BRAKE

main04443-12590i199009-199308

main04443-12740i199009-199308

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-12520i199009-199308

main44606-20800i199009-199308

44610BOOSTER ASSY, BRAKE

main44610-12730i199009-199110

main44610-13040i199009-199110

main44610-13070i199308-199508

main44610-1A750i199110-199508

main44610-1A760i199110-199308

44621VSEAL, BOOSTER BODY

main44621-14030i199009-199308

main44621-28120i199009-199308

44629RING, CIRCULAR INTERNAL

main44628-28120i199009-199308

main44628-60010i199308-199508

44635BKEY, VALVE STOPPER

main44635-20800i199308-199508

main44635-28120i199009-199308

44642PISTON, BRAKE BOOSTER

main44642-20800i199308-199508

main44642-32030i199009-199308

44785GASKET, BRAKE BOOSTER

main44785-32010i199009-199508

9017908038

main90179-08038

9 parts on this diagram · 3 diagrams in section
