Toyota SPRINTER CARIB — REAR AXLE SHAFT & HUB

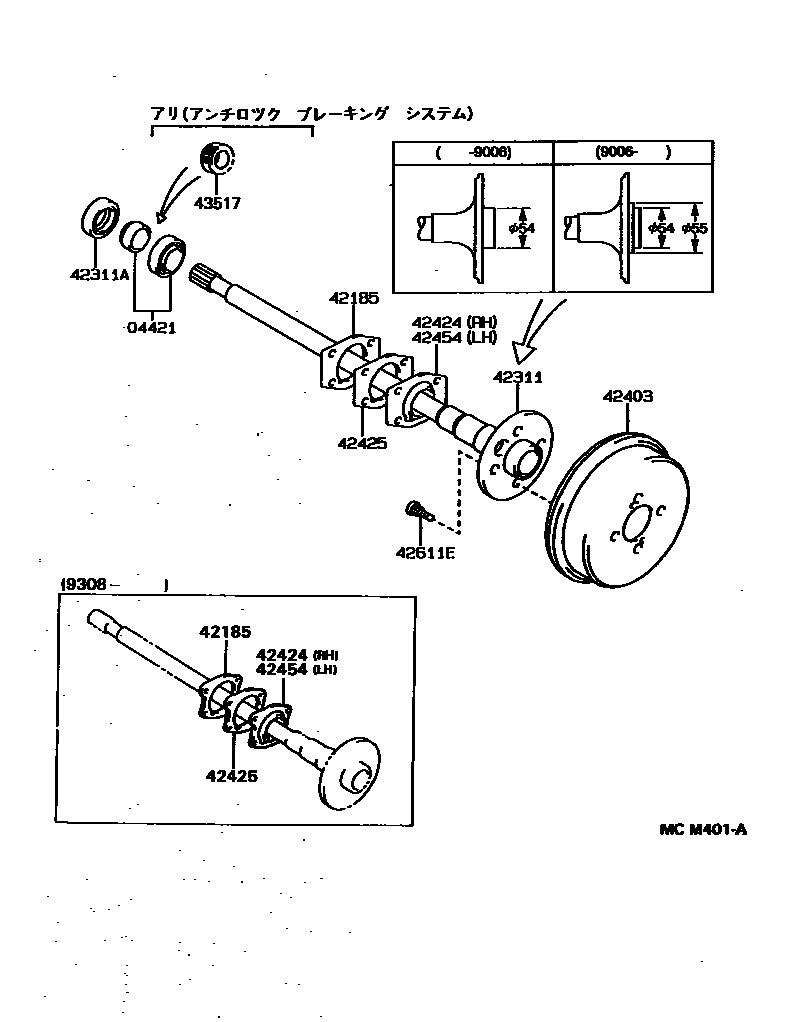

Parts diagram

04421BEARING KIT, REAR AXLE SHAFT

42185GASKET, REAR AXLE HOUSING END

42311SHAFT, REAR AXLE

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

42403DRUM SUB-ASSY, REAR BRAKE

42424RETAINER, REAR AXLE BEARING, OUTER, RH

42425GASKET, REAR AXLE BEARING RETAINER

42454RETAINER, REAR AXLE BEARING, OUTER, LH

42611EBOLT, HUB (FOR REAR AXLE)

43517ROTOR, SKID CONTROL, REAR

10 parts on this diagram · 1 diagram in section

REAR AXLE SHAFT & HUB for Toyota SPRINTER CARIB

This section contains 10 genuine Toyota parts for the REAR AXLE SHAFT & HUB system of the Toyota SPRINTER CARIB. Key components include: BEARING KIT, REAR AXLE SHAFT, GASKET, REAR AXLE HOUSING END, SHAFT, REAR AXLE, SEAL, OIL(FOR REAR AXLE SHAFT), DRUM SUB-ASSY, REAR BRAKE.
