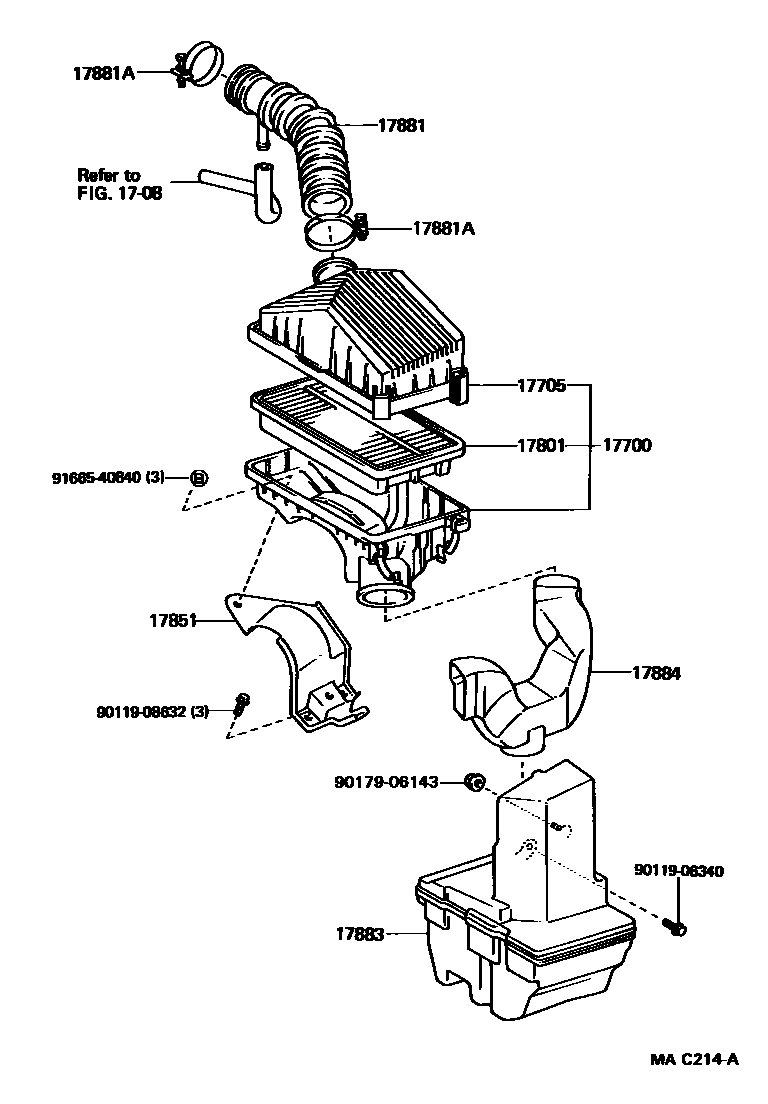

AIR CLEANER

1708VACUUM PIPING

→ Go to FIG 17-08

17700CLEANER ASSY, AIR

main17700-15250i4AFHE..AE95199009-199508

17705CAP SUB-ASSY, AIR CLEANER

main17705-15140i4AFHE..AE95199009-199508

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-16020i4AFHE..AE95199009-199508

17851BRACKET, AIR CLEANER SUPPORT

main17851-15010i4AFHE..AE95199009-199508

17881HOSE, AIR CLEANER, NO.1

main17881-15130i4AFHE..AE95199009-199508

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-73005×2i4AFHE..AE95199009-199302

main96111-10730×2i4AFHE..AE95199302-199508

17883HOSE, AIR CLEANER, NO.3

main17883-16041i4AFHE..AE95199009-199508

17884HOSE, AIR CLEANER, NO.4

main17882-16100i4AFHE..AE95199009-199508

9011906340

main90119-06340

9011908632

main90119-08632

9017906143

main90179-06143

9166540840

main91665-40840

13 parts on this diagram · 1 diagram in section
